Saturn Image 2006/01/28(UT)
永長英夫,池村俊彦,柚木健吉,瀧本郁夫,新川勝仁
David Arditti,Robert Heffner,Jan Adelaar,John Moore
D.Arditti,H.Einaga,T.Ikemura,R.Heffner,K.Yunoki,J.Adelaar,I.Takimoto,J.Moore,M.Niikawa

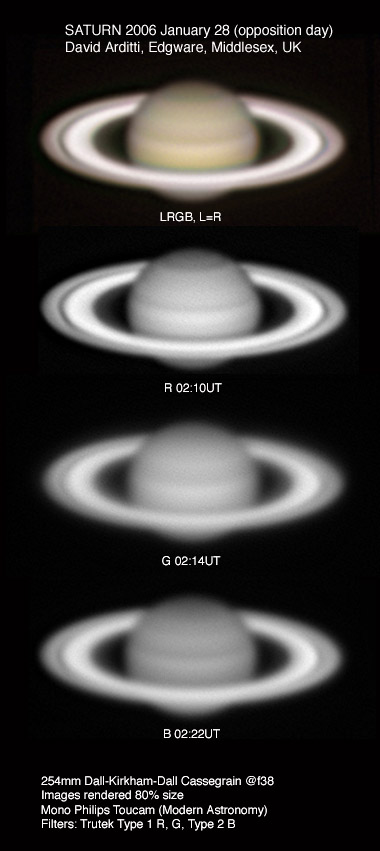

David Arditti (250mm Dall-Kirkham Cassegrain:ATK camera)

I was amazed when I looked at Saturn last night,about 02:00 when the clouds cleared,within 4 hours of opposition. The rings had a brilliant,bluish-white luminous quality.
I have made a colour composite image,but I am not very happy with the colours. However,the individual channels show clearly the reason for the remarkable appearance. The red and green images are more or less normal,but in the blue,whereas normally the rings and globe are of similar intensity,and much dimmer than in the R and G,the rings now shine out almost as bright as in the R,leaving the globe dull by comparison. The almost fluorescent quality this gave them,visually,cannot be well-represented in a colour image.
We were lucky in Europe to have opposition occurring close to midnight our time,which meant almost the most favourable opportunity possible for observing the opposition Seeliger effect.

[David Arditti: Edgware Middlesex HA8 5LW: United Kingdom]

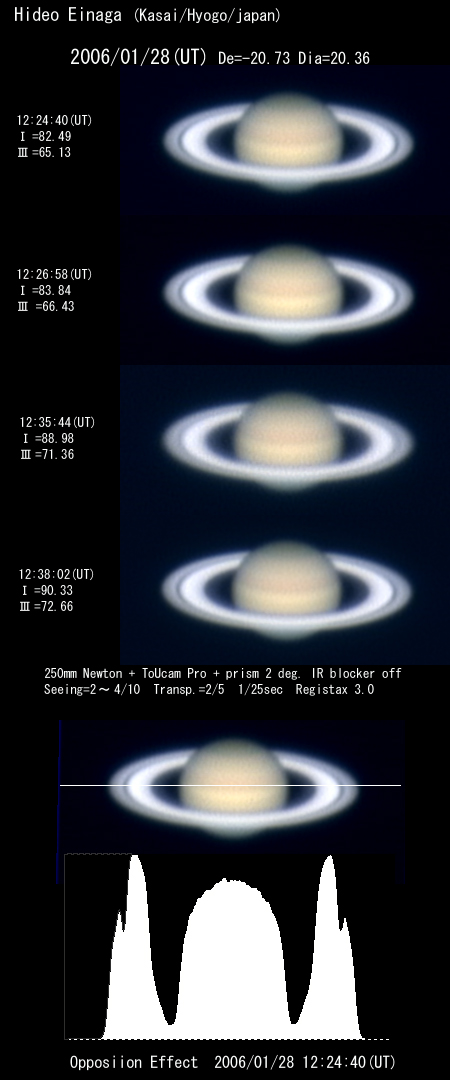

Hideo Einaga (250mm Newton,Toucam Pro Webcam)

この日が「衝」でした。
「衝効果」が分かるように、ステライメージ４で２Dグラフを作ってみました。

[Hideo Einaga Kasai-City Hyogo-Prefecture Japan]
≪兵庫県  加西  永長英夫≫

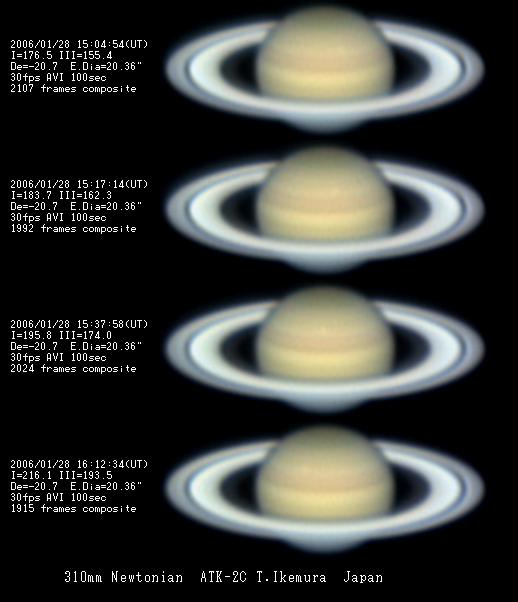

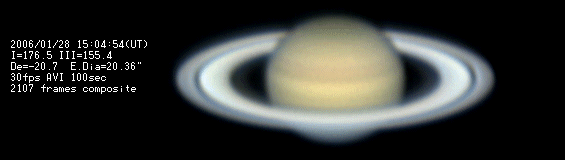

Toshihiko Ikemura (310mm Newton,ATK-2C 2HS)

As for the Saturn that became The Opposition
it has been understood at
once that the ring is abnormally bright.
The White spot that had been found
on January 24 was plainly caught.

Japanese
衝になった土星はそのリングが異常
に明るいのがすぐにわかりました。
1月24日に見つけられた白斑が明瞭に
捉えられました。

[T.Ikemura Nagoya Aichi JAPAN]
≪愛知県名古屋市  池村俊彦≫

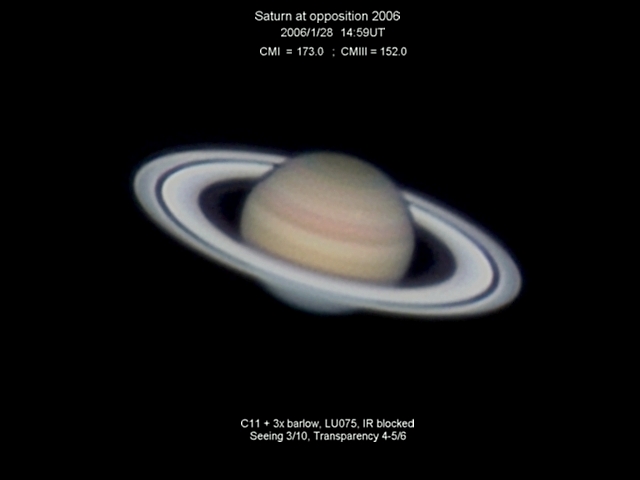

Robert Heffner (280mm SCT : Lumenera LU075)

I send you a Saturn image from 2006/1/28  14:59UT

Comments:  Saturn at opposition in less than ideal seeing conditions. The
opposition effect was clearly seen visually through the telescope. Image was
kept bright in post processing to show the effect. The white spot can be
seen.

[Robert Heffner:Aichi,Japan]

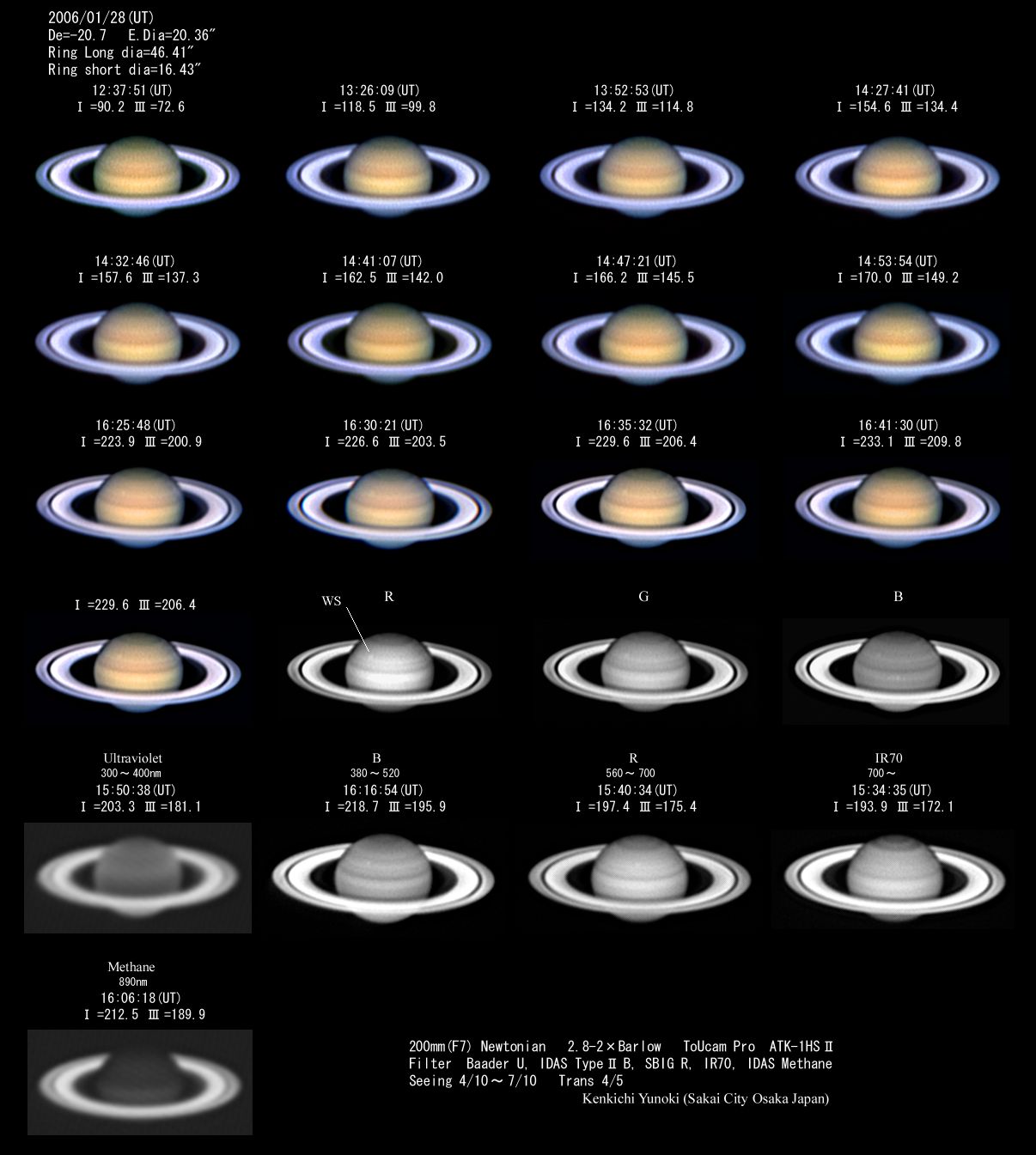

Kenkichi.Yunoki (200mm Newtonian,ToUcam Pro)

衝の日に観測出来た。opposition 効果で環が明るく輝いている。この日もまだ白斑が存在しているのが写った。

[Kenkichi Yunoki (Sakai City Japan)]
≪大阪府堺市柚木健吉≫

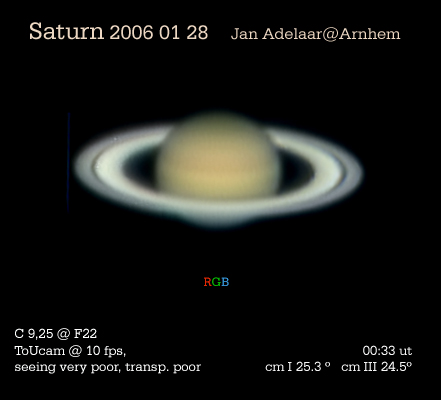

Jan Adelaar(178mm (7') Maksutov cass:ToUcam)

Venus Dec. 16,19Hi all
Here a capture of Saturn on 28th of januar,regretly seeing very poor
the last days and very cold too,but alright the oppositioneffect can
been seen,strange cassini is sharper on the left then on the right but
aligned on both sides. previous date capture will follow soon,computer
broke down

[ジャン-アデラー:オランダ]
[Jan Adelaar:Arnhem City Netherlands]

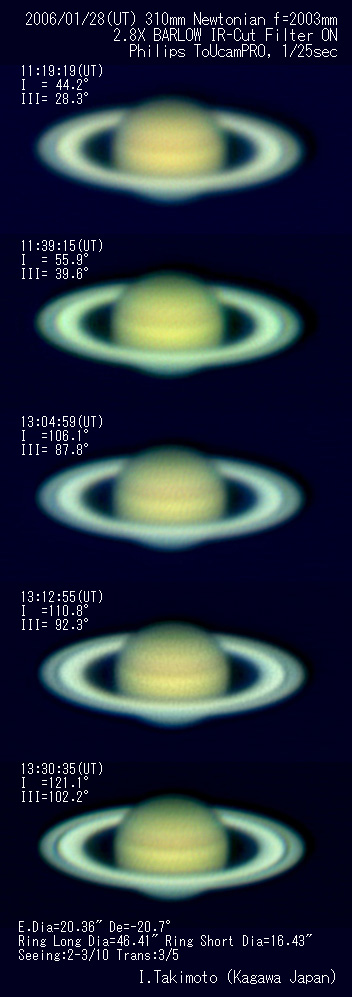

Ikuo Takimoto (310mm Newtonian :ToUcam Pro )

コメント：衝効果は歴然としています。特にＢ環が顕著に
          思われます。

[Ayauta-gun Kagawa-Prefecture Japan]
≪香川県  綾歌郡  瀧本郁夫≫

John Moore (180mm Maksutov Newtonian Toucam Pro)

Here is Saturn taken at 2345UT 28th January 2006.
Seeing was awful that night,about 1/10,but I thought it might be useful for comparison when examining the ring brightening effect.
Intes Micro MN78,3X Barlow,Toucam Pro at 5fps.


[John Moore: Fleet,Hants,United Kingdom]

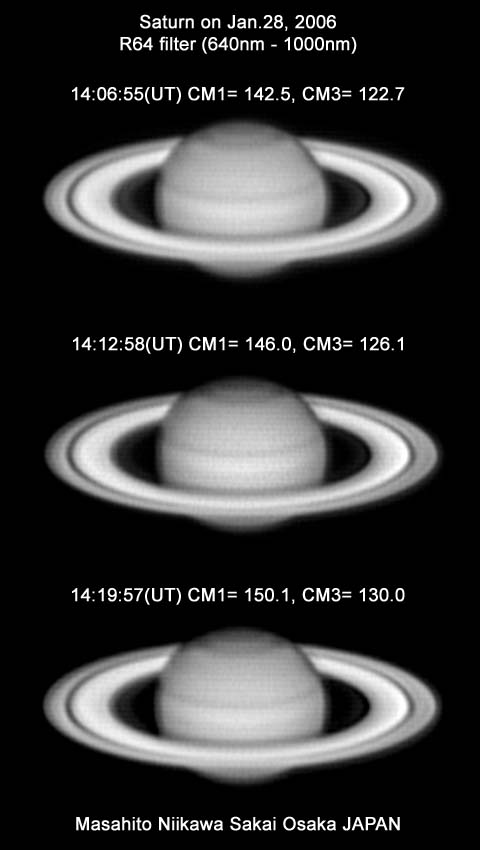

大阪Masahito Niikawa (280mm SC,LU075M CCD camera)

Saturn on Jan.28, 2006
R64 filter (640nm - 1000nm)

14:06:55(UT) CM1= 142.5, CM3= 122.7
1554 frames composite

14:12:58(UT) CM1= 146.0, CM3= 126.1
1227 frames composite

14:19:57(UT) CM1= 150.1, CM3= 130.0
1635 frames composite


Effective Fno. :30 (XP24mm eyepiece projection)
Telescope:C11(D=280mmm fl=2800mm)
Camera:Lumenera LU075M CCD camera
12bit Raw mode
Exposure: 0.13sec
Gain: 12.41
Gamma: 1
Dark corrected
Seeing :2/10, Transparency :3/6
Observer :Masahito Niikawa Sakai Osaka JAPAN

≪大阪府  堺市  新川勝仁≫
