木星 ALPO-Japan Latest

Jupiter Image 2007/05/03(UT)

Fabio Carvalho,Christopher Go,Donald C Parker
F.Carvalho,Christopher Go,Don

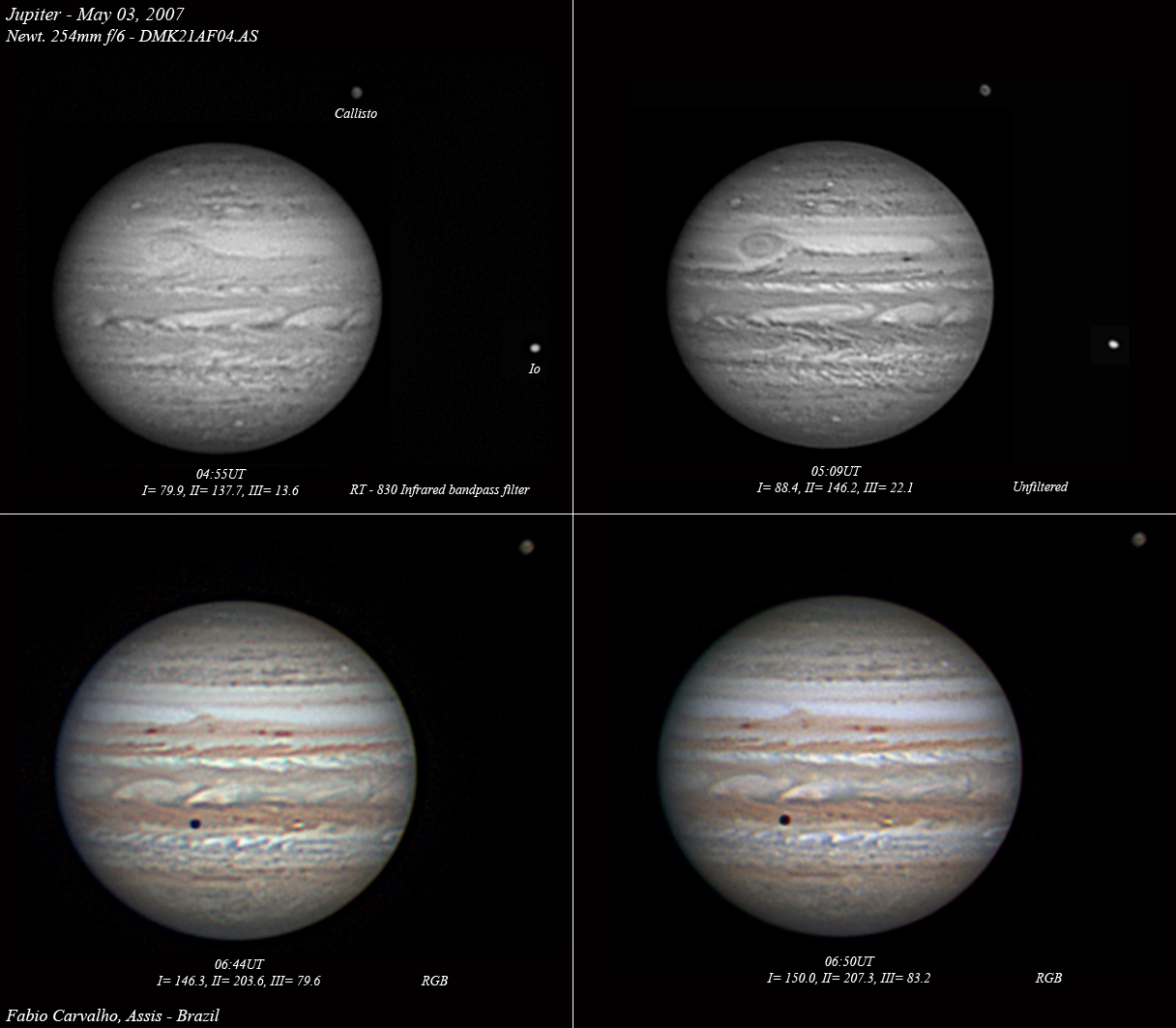

Fabio Carvalho (Newtonian Newtonian 254mm)
2007/05/03 04:55(UT) - 06:50(UT)
D. 43.8"
Newtonian 254mm f/6 at f/28
DMK21AF04.AS firewire camera
Seeing 5-8/10   Trans. 7/10

[Fabio Carvalho : Assis,Brazil]

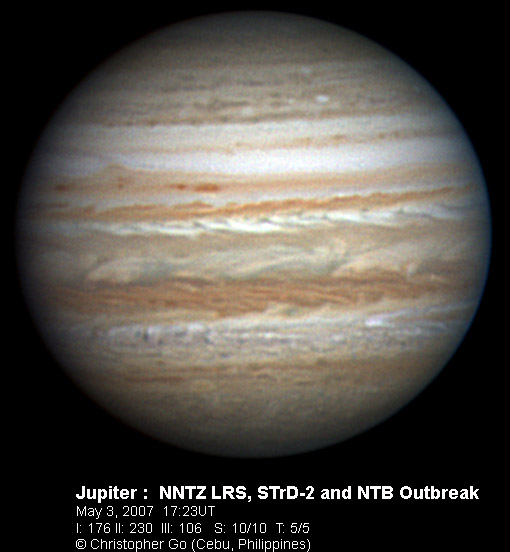

Christopher Go (Celestron C11)
This image is comparable in resolution on the New Horizon's image a few weeks before it reached Jupiter.
The SEBs and the STrD-2 is very pale now. The dark small spots following the STrD-2 has grown! The tail end of the SED is very bright.
The EZ has become slightly reddish and very dark in color! There is a lot of festoon activity!
The NEB is filled with rifts. The head and tail end of the NTB outbreak is getting closer. The arrow head white disturbance is really very interesting.
The NNTZ LRS is also prominent in this image!

[Christopher Go : Cebu Philippines]

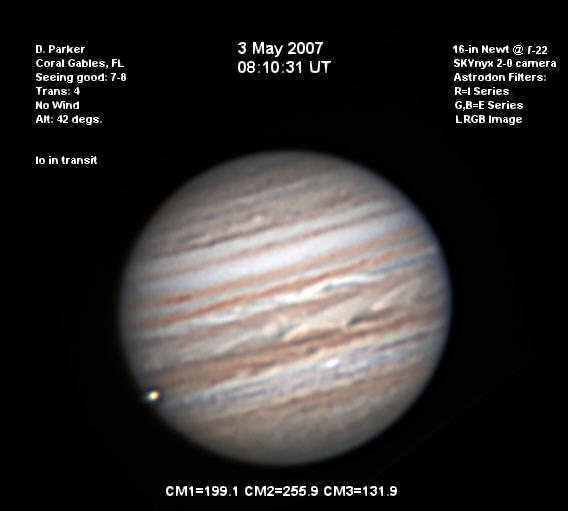

Donald C Parker(16-in (41cm) Newtonian)

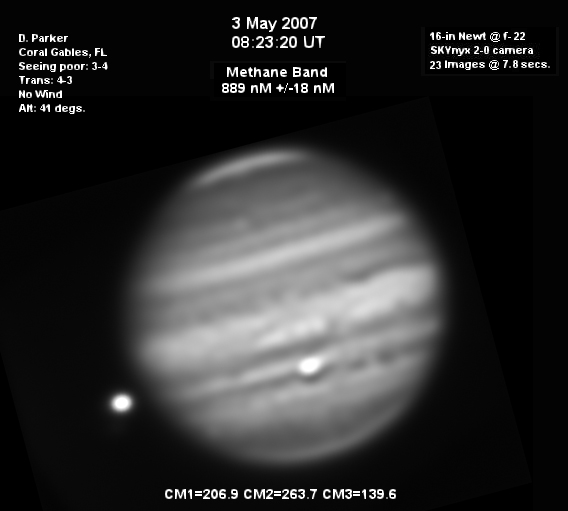

Note the bright NTB spot became brilliant in Methane.
Seeing deteriorated and clouds came in at this point, so I was unable to obtain IR or UV images.



[ Donald C Parker Coral Gables,Florida U.S.A]
