木星 ALPO-Japan Latest

Jupiter Image 2009/08/03(UT)
菅野清一,熊森照明,阿久津富夫,柚木健吉,安達 誠,福井英人,林敏夫,安藤和典,尾崎公一
Damian Peach,Donald C Parker,Sadegh ghomizadeh,Anthony Wesley,Mike Salway,George Tarsoudis,John Sussenbach,Marc Delcroix,Sonka Adrian,Zac Pujic
D.Peach,Don,Sadegh.GH,S.Kanno,T.Kumamori,T.Akutsu,K.Yunoki,Anthony,M.Adachi,H.Fukui,T.Hayashi,M.Salway,G.Tarsoudis,K.Ando,J.Sussenbach,Delcroix,K.Ozaki,S.Adrian,Z.Pujic

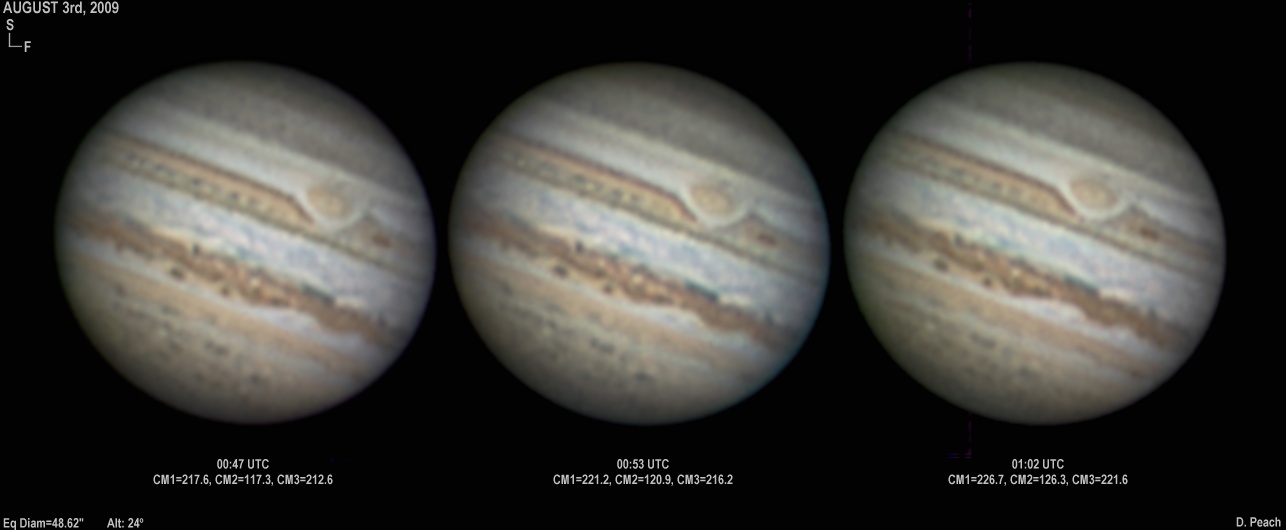

Damian Peach (350mm Celestron SCT)
Poor transparency (no methane images were possible.) Still,the GRS,and the dark NTrZ spots are well seen...

[Damian Peach: Loudwater,Buckinghamshire,United Kingdom]

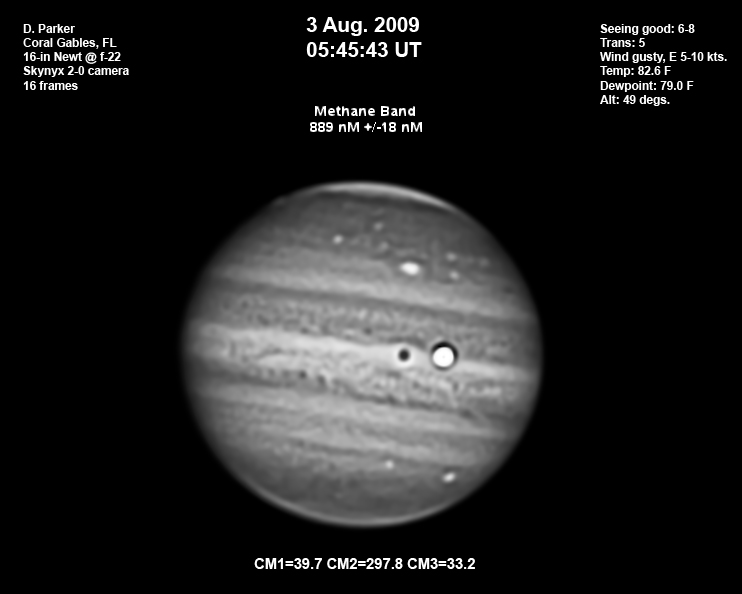

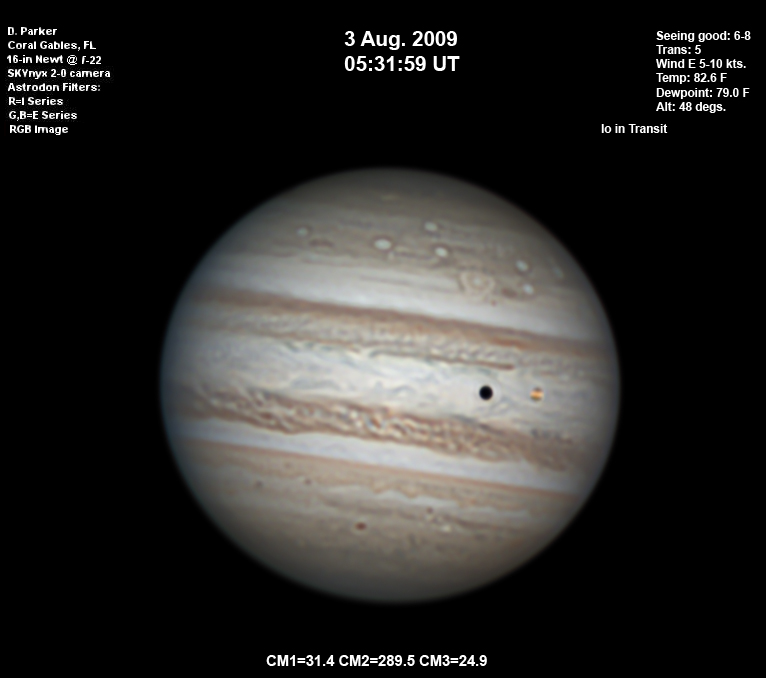

Donald C Parker(16-in (41cm) Newtonian)
Oval Ba remains very faded. Io in transit.




The impact site is bright on the PM limb.



[ Donald C Parker Coral Gables,Florida U.S.A]

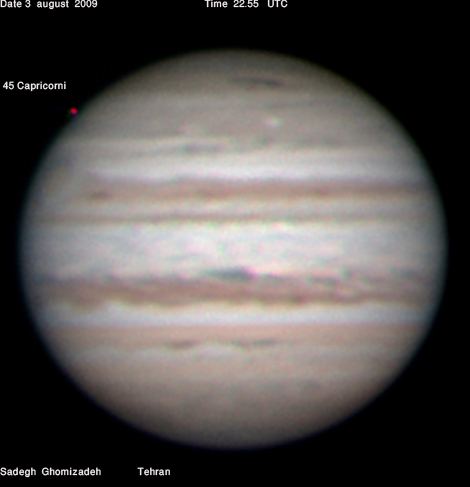

Sadegh ghomizadeh (235mm SC)
At this night of August 3-4,Jupiter will cover a 6th-magnitude star - a once-in-a-lifetime occurrence for most locations on Earth .
Equipment SKYnyx 2-0 + Celestro C11 seeing was average Atmosphere was good.





[Sadegh ghomizadeh: Tehran IRAN ]
Seiichi Kanno(250mm Newtonian)
山形はまだ梅雨が明けず、天気に恵まれておりません。
この日も夕方から雲が厚く立ち込め、晴れ間は期待薄でしたが
例の衝突痕を見たくて、早い時間から望遠鏡を外気になじませ
待機しました。

1回目の雲の切れ間が21：20頃から発生しましたがシ−イングが
悪く、木星像がグニョグニョに変形する状態でしたので、出来た
画像はボケボケです。しかし衝突痕はなんとか確認できました。
2回目の雲の切れ間は23：20頃から発生し、今度は木星の高度も
高くなったせいかシ-イングはかなり落ち着いていました。
しかし、衝突痕は木星の外周部まで移動してしまい、中央部での
確認は次回に持ち越しになりました。
この晴れ間は１時間程持ちましたが、また厚い雲に覆われ、以後
の撮像は中止となりました。
雲との根競べからは早く解放されたいと願っているこの頃です。

≪山形県上山市  菅野清一≫
Teruaki Kumamori (200mm Dall-kirkham)
近畿地方もようやく梅雨明けになりました。
日食に集中していたこともあって、久しぶりに撮影です。
衝突斑が中央にあるときは曇っていました。ようやく晴れた時は
端っこに行ってしまっていました。

≪大阪府堺市 熊森照明≫

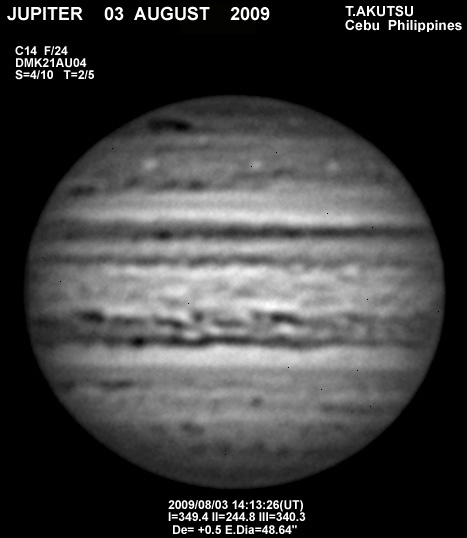

Tomio Akutsu (355mmSC C14)
衝突痕の画像です。気流が悪かったのですが、横に広がる痕跡はこの気流でも良く見えています。

≪Cebu PHILLIPINES  阿久津富夫≫
Kenkichi.Yunoki (260mm Newtonian)
梅雨明け宣言がやっとなされ、久しぶりに木星を写すことが出来た。当初は雲があったが、衝突痕を初めてとらえることが出来た。

[Kenkichi Yunoki (Sakai City Japan)]
≪大阪府 堺市 柚木健吉≫
Anthony Wesley (332mm Newton)
in good seeing.


One of the most promising runs on the 3rd of August was spoiled by operator error (I lost the blue channel data and some of the green). The remaining red-channel data from that run has been sitting in the sin bin for the last couple of days while I tried to see if I could use data from a nearby run to substitute for the missing channels,and while that's still possible I've decided in the meantime to process and send the red channel data alone.
The most interesting thing on this image is the light "streak" visible above and left of the dark debris field. It looks like an artifact (definitely *not* an artefact tho,lol) but it shows up on all my images from that nights session,and in the same place each time,so I'm guessing it must be real. Don't know what it is,but I'm sure Glenn or JHR will have the answer
It also appears that the dark debris trail is breaking into several pieces,there are definite bright and dark regions in there.
ps I'm away for 2 weeks leave starting this Saturday,so I hope the rest of you have lots of clear skies,good seeing and heaps of fun until I get back! I'll try and check my email regularly,but no guarantees.


this was the earliest run I recorded,spent most of that night dodging around high clouds.

[Anthony Wesley,Murrumbateman Australia]
≪アンソニ オーストラリア≫

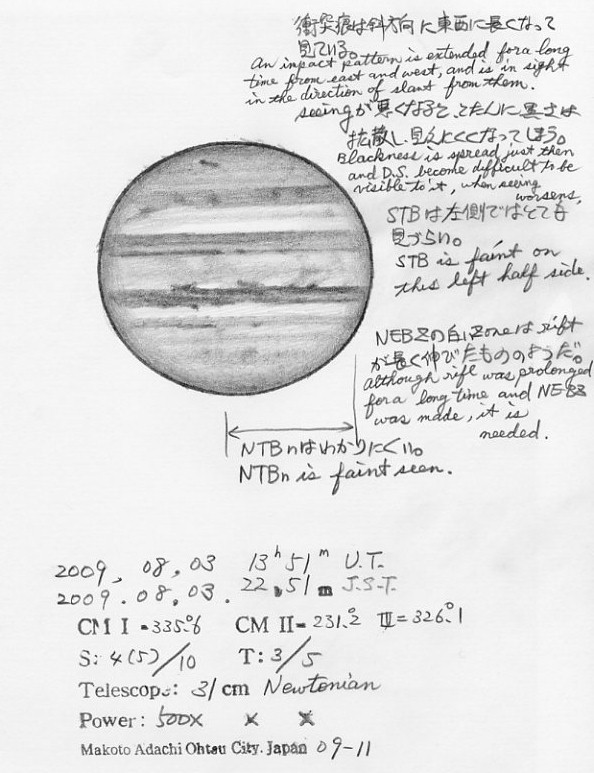

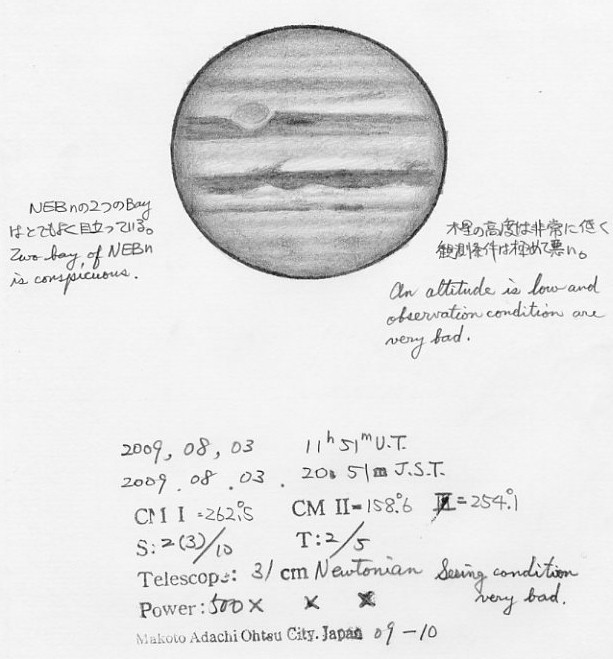

Makoto Adachi (Drawing: 310mm Newtonian)

--------------------------------------------------------------

--------------------------------------------------------------
<Makoto Adochi Ohtu Shiga Japan> ≪滋賀県 大津市 安達 誠≫
Hideto Fukui (350mm SC)

[Hideto.Fukui  (Shizuoka-Prefecture  Japan)]
≪静岡県藤枝市  福井英人≫
林敏夫 Toshio Hayashi (355mm Schumidt-Cassegrain)
中央のインパクトを見逃して、端のインパクトを
確認するだけに成りました。

≪京都府京都市  林敏夫≫

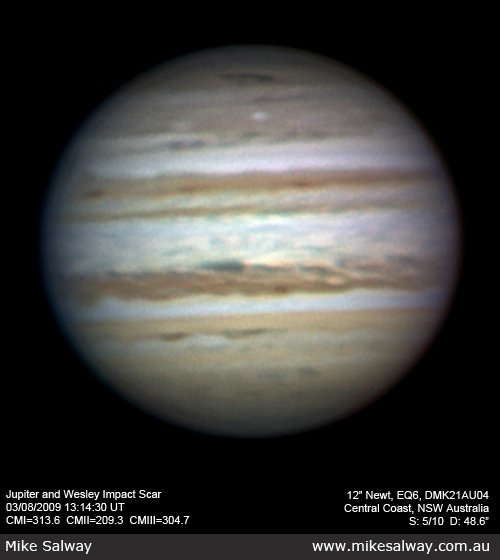

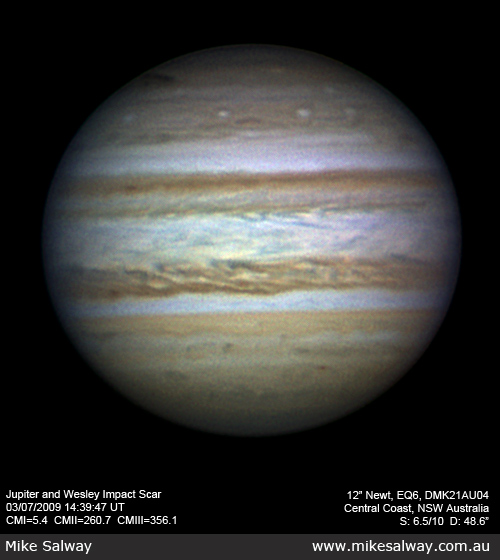

Mike Salway(304mm newton)
On the night of the 3rd August,what started as typically below average
seeing,finally improved as the seeing reached a respectable almost 7/10 and
gave some of my best views of Jupiter this year.



6th magnitude star 45 Cap in the same field of view as Europa and Io,
which was a nice surprise.

The seeing was improving nicely,but high cloud and then thick cloud brought
my night to an end. The two attachments show one in reasonably good seeing
and one in typically average.


[Mike Salway Central Coast,NSW Australia]
George Tarsoudis ( 250mm Newtonian )

[George Tarsoudis,Alexandroupolis of Greece]
《ターソウディス  ギリシャ アレクサンドロポリス》

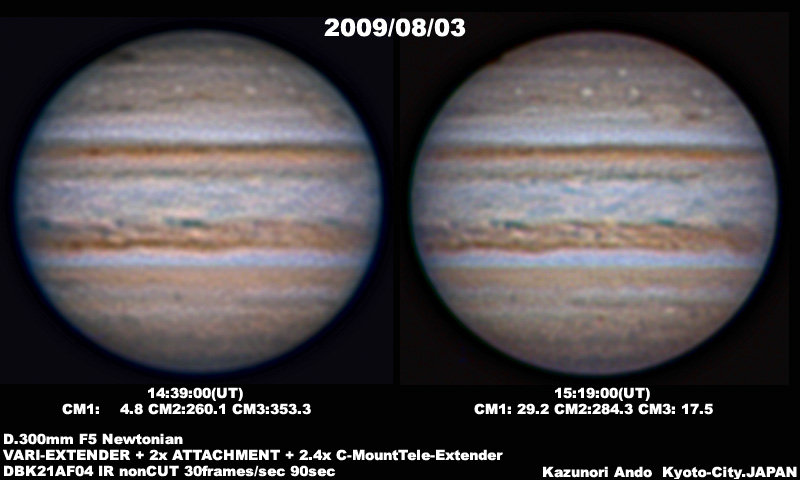

Kazunori Ando (D.300mm Newtonian)
fig.1  2009.08.03  14:39:00(UT)
CM1:  4.8 CM2:260.1 CM3:353.3
fig.2  2009.08.03  15:19:00(UT)
CM1: 29.2 CM2:284.3 CM3: 17.5

D.300mm F5 Newtonian
VARI-EXTENDER + 2x ATTACHMENT + 2.4x C-MountTele-Extender
DBK21AF04 IR nonCUT  30frames/sec 90sec
Processing：
RegiStax 5.0.2.8
StellaImage　6.0
Photoshop 6.0
-----------------

[Kazunori Ando Kyoto:Japan]
≪京都府・桂  安藤和典≫
John Sussenbach(280mm SC)
Although the seeing was poor on this timepoint,
the elongated impact scar is still clearly visible at the Central Meridian.

[スセンバッハ:オランダ]
[John Sussenbach:Houten,Netherlands]
Marc Delcroix (254mm SC)
Here are images of Jupiter taken with all of my filters after the immersion of 45Cap that night,except for the methane images. Please note the elongated impact especially on RGB and IR>742nm and methane images,and the fact that we can guess its separated in 3 fragments despite the bad resolution:




Additionnaly here is an animation of 3 methane images (45Cap immersion occured in second frame):

That was an incredible "Jupiter night" for me,starting with the star occultation,following with these images and ending with 2 mutual events i still have to process ...
[Marc Delcroix Tournefeuille,France]
Kimikazu Ozaki(420mm Rfd)

[Ki.Ozaki,Sobue Inazawa Aichi JAPAN]
≪愛知県稲沢市祖父江町  尾崎公一≫
Sonka Adrian Bruno (235mm Schmidt-Cassegrain)
2009/08/03 23:18:00(UT) CMI=321.4 300mm Schmidt-Cassegrain
MEADE LPI
Seeing 4/10   Trans 5/10 Comments (English): impact scar visible


2009/08/03 00:05:00(UT)
CMI=192
300mm Schmidt-Cassegrain
MEADE LPI
Seeing 5/10   Trans 5/10

[Sonka Adrian Bruno:Bucharest,Romania]
[ソンカ・アドリアン・バルノ:ブカレスト・ルーマニア]
Zac Pujic (310mm Newton)

[Zac Pujic,Brisbane Australia]
