木星 ALPO-Japan Latest
Jupiter Image 2012/01/28(UT)
堀川邦昭
Christopher Go,Michel Jacques Jacquesson,Freddy Willems
Christopher Go,Michel.J,F.Willems,K.Horikawa
|
Christopher Go (355mm SC) |
I finally had good seeing this evening. I used derotation in processing these images. My session was cut short because of clouds.
The GRS is close to the CM. The dark ring inside the GRS is well resolved. The area around the GRS is still dark. The wake is very complex. The outbreak following the GRS is bright in Methane Band. The area preceding the GRS is very dark red.
Note the south temperate white ovals going all the way to the south polar region (SPR)!
The NEB is narrow while the dark red ovals north of the NEB are very prominent. There are also white ovals resolved at the north temperate region. Some of these are bright in Methane band as seen in the image below.
[Christopher Go : Cebu Philippines]
|
Michel Jacquesson (208mm Newtonian) |
[Michel Jacquesson : Sevigny-Waleppe (Ardennes) France]
RGB and some IR images.
[ Freddy Willems :Hawaii U.S.A]

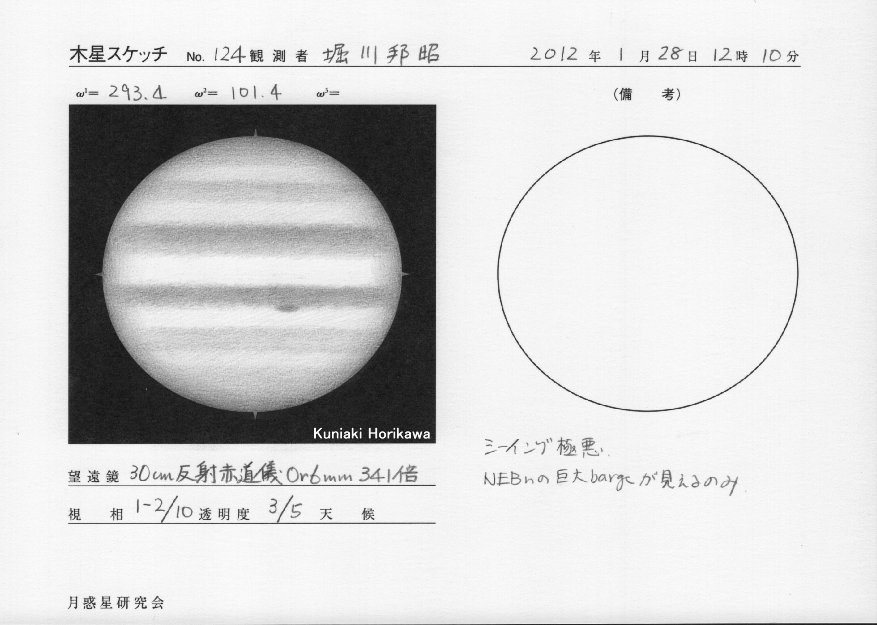

≪神奈川県横浜市泉区 堀川邦昭≫[Kuniaki Horikawa:Kanagawa Japan]
