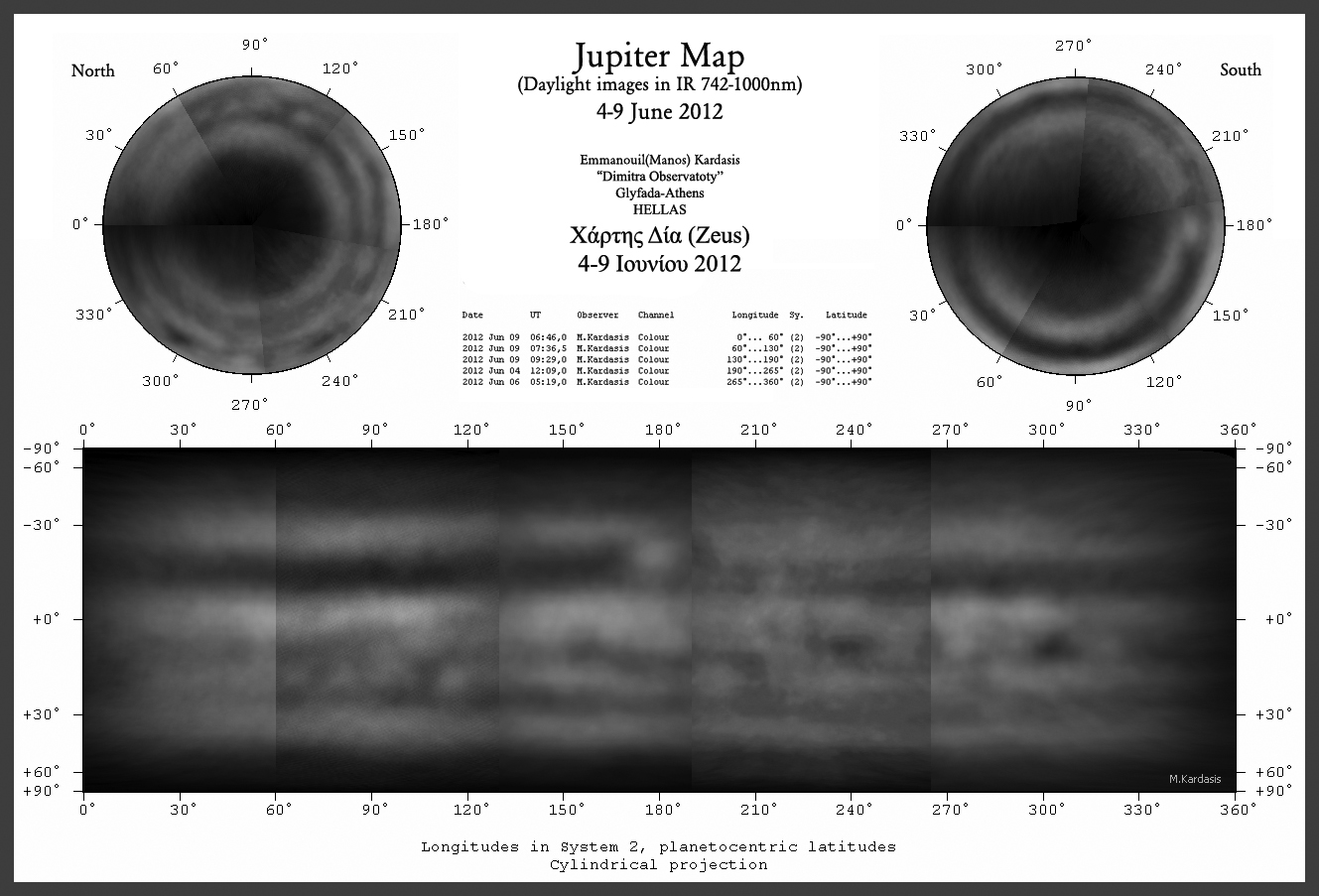

Jupiter Map 4-9 June 2012 by Kardasis


Jupiter Map 4-9 June 2012 by Kardasis

I am very happy to present my complete effort of daylight observations.
Since there is a very important and active period of Jupiter
I made these observations to cover the obs-"void" in a very active period.I must say it was quite hard.... All Longitudes are not exact measurements but just an approach to show what I mean. NTB There is a very bright spot at around L2 115 in NTropZ-NTBs.There is alot of dark material
around the spot and especially in the P. direction. The region in the P.side of the spot is very turbulent with bright and dark patches.
At L2 197 in the same lat there is a similar white area sorrounded by dark material. NTB is very active and turbulent compared with March observations. NEB NEB is also very active with two dark patches at aroun L2 240 and 303 entering the EZ(possibly the ones spoted on March obs) There are two darker regions on the NEB L2 150-213 and 325-15. SEB There is dark material in the GRS Hollow and especially on the F side.
There are dark condensations on SEB F at L2 266 and 285 and P at 90 and 110.
●2012年6月4〜9日の木星マップ 私の昼光での観測の完全な成果を示すことができて、とてもうれしい。 木星には非常に重要で活発な期間があるので、非常に活発な期間内の観測空白を カバーするためにこれらの観測を行った。とても難しかったと言いたい。 全ての経度は正確な測定ではないが、私が意図することを示すためのアプローチ である。 ◆NTB L2=115度のNTropZ〜NTBsには非常に明るい白斑がある。白斑の周りに、特に白斑 の前方には、たくさんの暗物質がある。 白斑の前端領域は白斑や暗斑で非常に乱れている。同じ緯度のL2=197度には、 暗物質に囲まれた同様な白色領域がある。 NTBは3月の観測と比べて非常に活発で乱れている。 ◆NEB NEBも、L2=約240度と約303度に2個の暗斑(おそらく3月に観測された)が EZに入りこんで、非常に活発である。 NEBのL2=150-213度と325-15度には2個の暗い領域がある。 ◆SEB 大赤斑孔と特に後端には暗物質がある。SEBの大赤斑後方のL2=266度と285度、 前方のL2=90度と110度には暗塊がある。 [Manos Kardasis,Glyfada-Athens;Greece] 《カーダシス マノス:ギリシャ アテネ》
