Jupiter Image 2013/09/15(UT)

Paul G. Abel,Leo Aerts,Clif Ashcraft,Sadegh ghomizadeh,James Willinghan,Vlamir da Silva Junior
P.Abel,A.Leo,C.Ashcraft,Sadegh.GH,J.Willinghan,V.da Silva Jr.

Paul G. Abel(203mm reflector)
Please find attached a short observation of Jupiter made last night.
It was a lovely calm transparent morning and seeing was rather good to begin with,
although it declined shortly before the clouds came up at 0443UT.
There were a number of interesting things on the disk,these include the following:
-SPR vague greyish region
-There appeared to be remnants of both a SSSTB and a SSTB though not uniformly across the disk
-STB brownish,STZ a brghter yellowish region
-STropB visible with some darker spots/sections within
-Oval BA just coming onto the disk,no reall colour detected but the border surrounding it
and interacting with the STB (and STRopB?) was rather dark and a greyish brown in colour.
Some bright spots quite close to BA in the STZ.
-SEB rather active.  In general there appears to be a SEBn and
a SEBs with a SEBz which seems to have a slight diagonal component at this longitude.
SEB seemed to be rather active with many subtle structures of different shades and intensity present.
-EZ contained a number of bluish zones
-NEB rather active,all manner of darker structures and lighter regions seemed to be present within the belt.
The NEBs was the base for a number of festoons while the NEBn seemed to be rather irregular
with perhaps a number of subtle shadings extending into the NTropZ
-NTropZ seemed to have a slight yellowish cast tonight
-NTB visible and seemed to have a dark northern edge.
-NTZ reasonably bright,slightly yellow in colour
-NNTB also contained a number of darker sections.
-NPR greyish,there seemed to be many subtle structures present here too
but it was hard to capture them successfully.

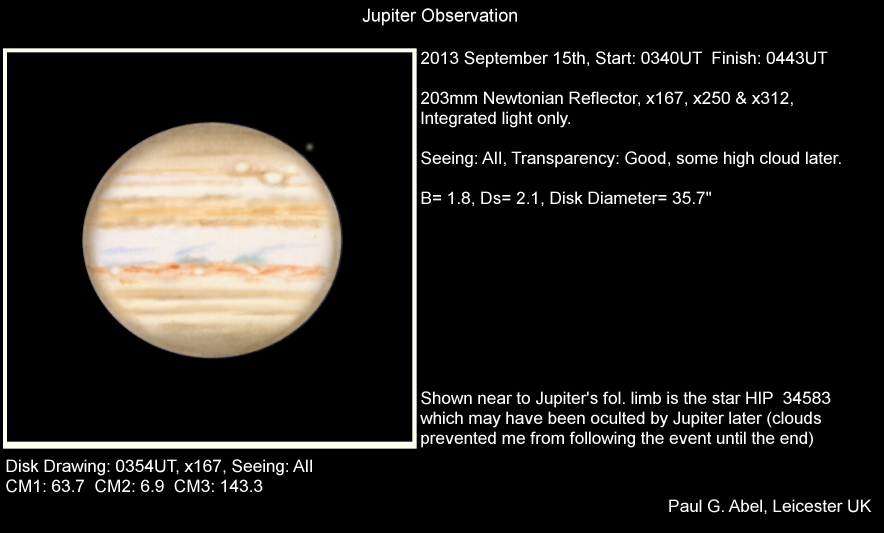

The drawing shows how they appear in general.
Occutlation/Graze of Star HIP 34583.
0355UT: It became clear that Jupiter was approaching a star (all of the Galileans could be accounted for).
0404UT: Stellarium showed this to be the star HIP 34583,a +7.55 magnitude star of spectral class K2.
0407UT: HIP 34583 was very close to Jupiter's SPR.  Alas seeing really started to drop off and the clouds started to
come in.  I was shortly forced to stop observing at I have no way of knowing whether an occultation occurred or if
it was simply a graze.  My suspicion was that it was a graze,but I am not certain.
Closed down at 0443UT.  I had hoped to make an observation of Mars,but the clouds put a stop to that idea.

[Paul G. Abel:Leicester:United Kingdom]

Leo Aerts (355mm SC)
2013/09/15 4h27 UT,Celestron 14"
Dia "  36"0 Webcam DMK21 AU618.AS  RGB Baader filters,dispersion corrector used.
A magnitude 7.8 star - SAO 79126 - skims the limb of Jupiter.

[ Leo Aerts: Belgium]

Clif Ashcraft(279mm SC)
Attached is one of the images obtained this morning with the ASI120MC one shot color video camera
coupled to the CPC-1100EdgeHD telescope with a 2x Barlow lens giving f/23.
Video data was acquired using Firecapture,processed in AutoStakkert!2 and Registax6.
Seeing was variable,from poor to fair. Estimated 5/10 for the attached image. Transparency also fair.

[Clif Ashcraft:New Jersey:USA]

Sadegh ghomizadeh (235mm SC)
Fair seeing & average atmosphere I took some images from Jupiter  SEB I think is outbreak  PLS see you them





[Sadegh ghomizadeh: Tehran IRAN ]

James Willinghan (304mm SCT)
Had a run of some pretty good seeing this past week.

Vlamir da Silva Junior (203mm SCT)

[Vlamir da Silva Junior : Sao Paulo,Brazil]
