Jupiter Image 2019/06/28(UT)
山根 悟,大杉忠夫,井上 修,黒田瑞穂,安達 誠
Clyde Foster,Niall MacNeill,Anthony Wesley,Antonio Lasala Garcia,Michel Jacquesson,Joaquin Camarena,Ioannis A. Bouhras,Mark Lonsdale,Manos Kardasis,Efrain Morales Rivera,Vincenzo Mirabella,Paul Maxson,Vlamir da Silva Junior
C.Foster,S.Yamane,N.MacNeill,T.Ohsugi,O.Inoue,Anthony.W,A.Lasala,M.Kuroda,Michel.J,J.Camarena,M.Adachi,I.Bouhras,M.Lonsdale,Kardasis,E.Morales,V.Mirabella,P.Maxson,V.da Silva Jr.

Clyde Foster
Unfortunately very poor conditions combined with a raging Jetstream overhead meant that RGB was out of the question,
so I captured a mountain of IR and CH4 data in the hope of confirming: a)
the SEBs ring having passed and survived the chimney in IR and b) any possible flaking activity in CH4.

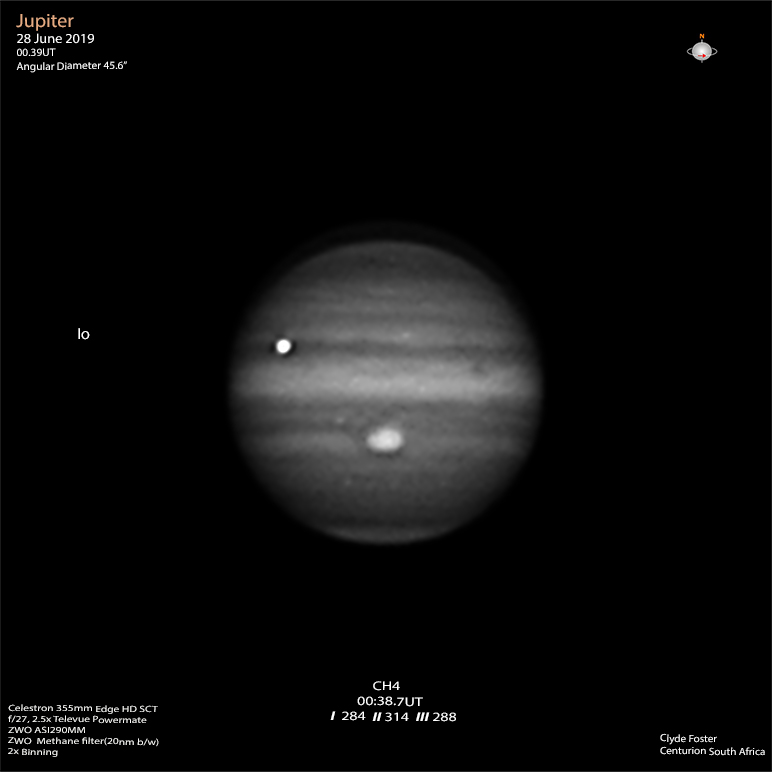

Attached is some of the best derotated data I could get out of the CH4.
I would like to think that there is sufficient to suspect that the SEBs ring may have initiated a new flake.
Confirmation from better data is however required.

Regarding the IR,very heavy processing was applied.
It appears to me that the SEBs ring has managed to cross the mouth of the chimney/rift.
However there appears to be two features in the NW corner of the GRS hollow:
An elongated feature on the edge of the hollow and a small circular feature on the elongated feature's lower right edge.
I have shown a comparison with my IR image from 26th.
I would like to think that the SEBs ring is the elongated feature,but I cannot say this for certain(possibly too large?).
Hoping that other imagers may be able to get better data. Also HST may cast some light on the matter.
Either way,I think that this data supports the CH4 images,which show potential flake formation just ahead of these features(as always,open to debate on these issues!).





Another session negatively impacted by Jetstream conditions,with seeing deteriorating further as the GRS transited.
The IR shows some structure across the western edge of the hollow,but it is not clear if any of this is the SEBs ring.

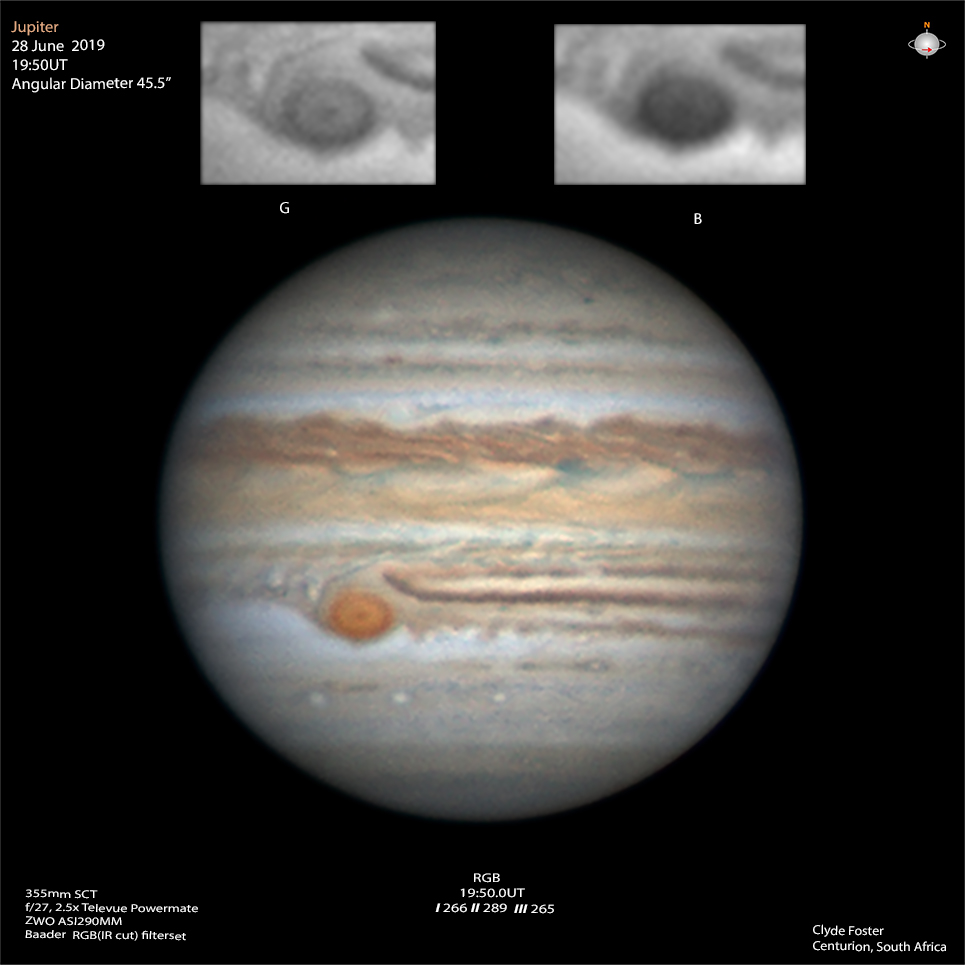

I have included the G and B which are not particularly good,but they do appear to show something is happening on the NW edge of the GRS.
At this resolution,I am just not sure what!
The CH4’s do not appear to show any major flake formation as yet.
At this point I am suspecting that the SEBs ring,even if it has survived,may have been affected in some way by the chimney
(and possibly a jet that runs on the NW edge of the Hollow when the chimney is open?),
but more(and hopefully better) data may give a better indication.





An earlier image set from 28 June as I was setting up for the later GRS session. Below average conditions




[Clyde Foster:Centurion,South Africa]

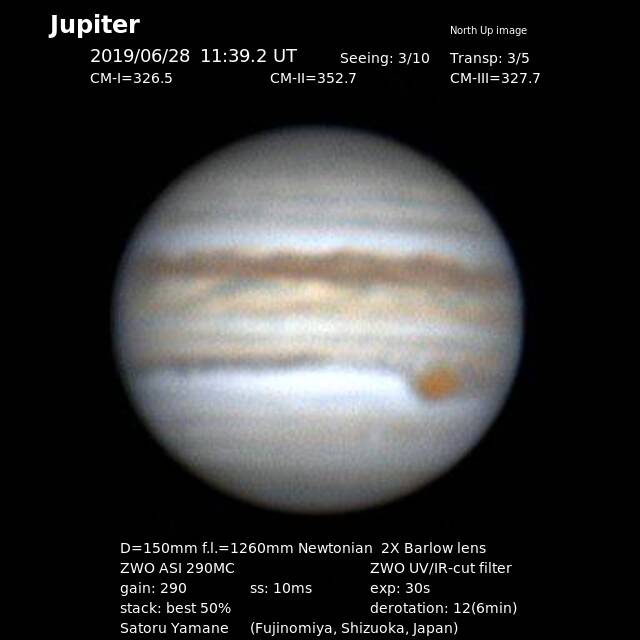

Satoru Yamane
- 12日ぶりの晴天ですがシーイングがいま一つです。
- GRS後方の STrZが明るいのが目立ちます。

≪静岡県富士宮市  山根 悟≫[Satoru Yamane : Fujinomiya-City Shizuoka-Pref. Japan]

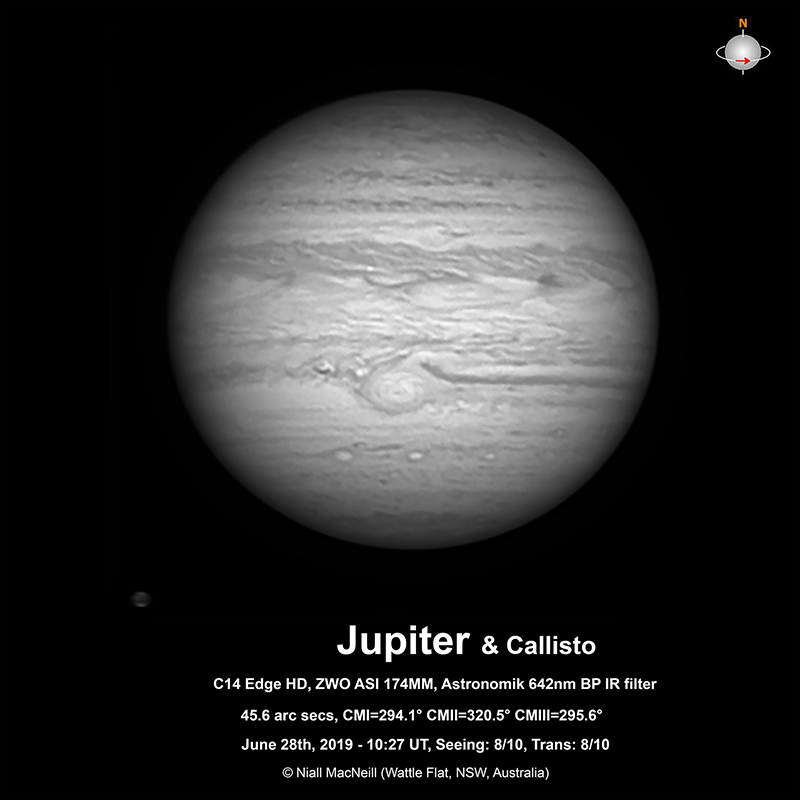

Niall MacNeill



[Niall MacNeill : Wattle Flat,NSW,Australia]

Tadao Ohsugi

≪石川県小松市 大杉忠夫≫[Tadao Ohsugi:Komatsu city Ishikawa pre,Japan]

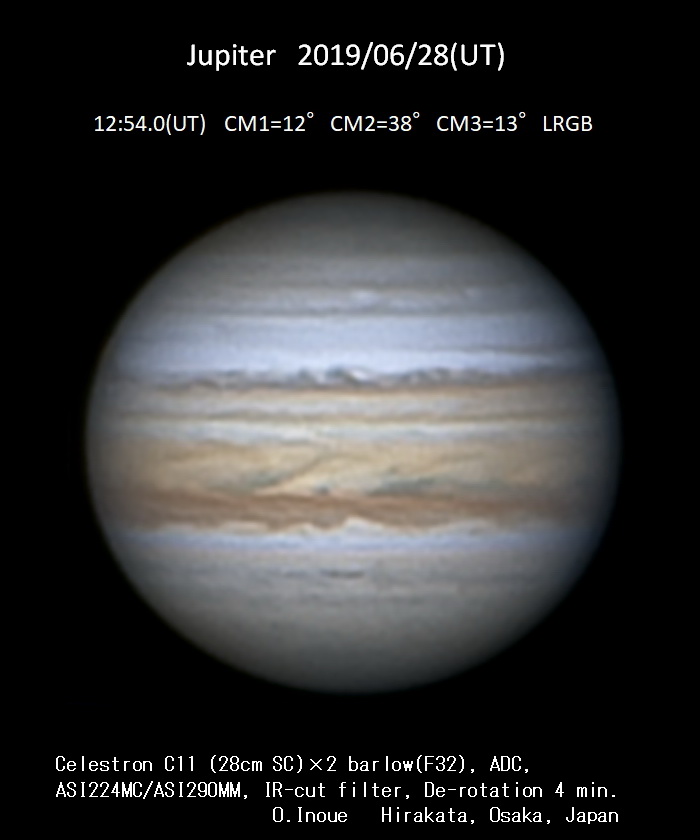

Osamu Inoue
僅かな晴れ間からの撮影でした。

≪大阪府  枚方市  井上  修≫[Osamu Inoue. Hirakata-shi,Osaka,Japan]

Anthony Wesley
Hi all,conditions last night were good enough for CH4 and IR images,
attached. In the IR we can see some disruption happening around the edge
of GRS,most notably at upper right in this image as a ragged edge to
the bright inner core. (The bright core in IR would normally show as red
in RGB images).

Some compact bright storms can also be seen to the left of the GRS. The
"chimney" is still open above the GRS. Interestingly,if we can use the
colours here as a guide,it appears the brighter material coming up the
chimney is higher than the darker cloud coming in from the right on the
SEBs,as it appears to be obscuring it. I'm not sure if this is real or
simply an optical illusion.


[Anthony Wesley,Murrumbateman Australia]
≪アンソニ  オーストラリア≫

Antonio Lasala

[Antonio Lasala :Morata de Jalon:Spain]

Mizuho Kuroda

≪黒田瑞穂 : 兵庫県 太子町≫[Mizuho Kuroda : Taishi Hyogo Japan]

Michel Jacquesson



[Michel Jacquesson : Sevigny-Waleppe (Ardennes) France]

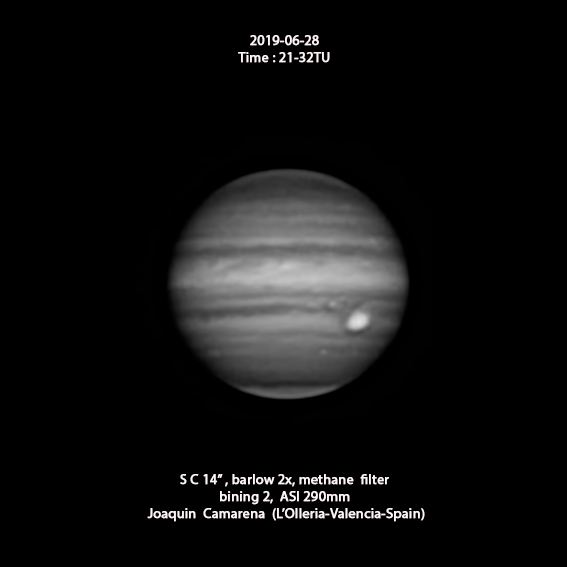

Joaquin Camarena





[Joaquin Camarena:Spain]

Makoto Adachi

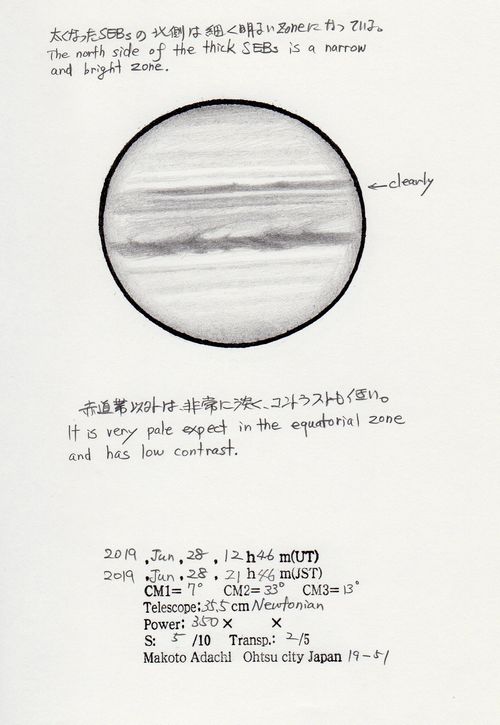

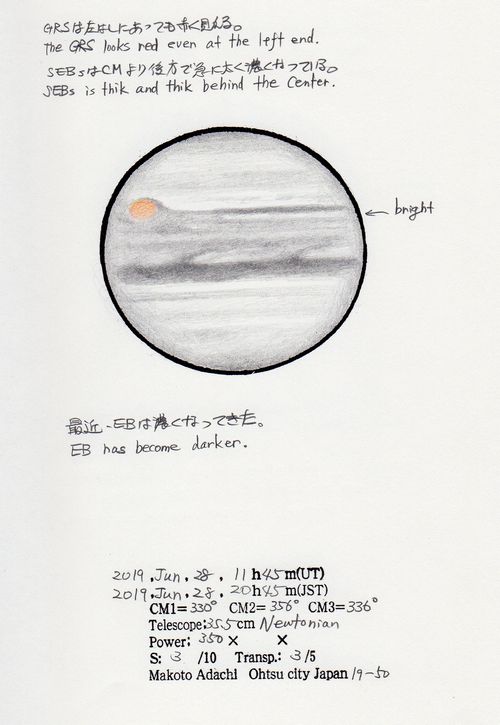

GRS後方の観測ができた。SEBは目立った白斑はなく、穏やかな
様子である。SEBsは2=340°から非常の太くなっており、よく目立つ。
今回のスケッチは、赤道帯とそれ以外の地域の暗さを、できる限り忠実に
再現できるようにスケッチした。今までになく、赤道帯だけが目立つ木星面
である。


--------------------------------------------------------------
≪滋賀県  大津市  安達  誠≫[Makoto Adachi:Siga Japan]

Ioannis A. Bouhras

[Ioannis A. Bouhras : Peristeri,Athens,Greece]

Mark Lonsdale

[Mark Lonsdale : [Canberra,Australia]

Manos Kardasis
Hello,gradually recovering from a surgery so here is a multispectral set in average to good conditions:

[Manos Kardasis,Glyfada-Athens;Greece]
《カーダシス マノス:ギリシャ アテネ》

Efrain Morales Rivera

[Efrain Morales Rivera  Aguadilla:Puerto Rico]

Vincenzo Mirabella



[ Vincenzo Mirabella,Acate (RG) Italy]

Paul Maxson

[ Paul Maxson:Surprise,Arizona,United States]

Vlamir da Silva Junior



[Vlamir da Silva Junior : Sao Paulo,Brazil]
