木星 ALPO-Japan Latest

Jupiter Image 2020/09/15(UT)
小山田博之,鈴木邦彦,佐藤康明,石橋力,森田光治,伊藤了史,大田 聡,堀川邦昭,山根 悟,永長英夫
Andy Casely,Jacques VAN DER MEER,Michel Jacques Jacquesson,Manos Kardasis,Trevor Barry,Jordi Ortega,Antonio Cidadao
H.Oyamada,K.Suzuki,Y.Sato,T.Ishibashi,M.Morita,S.Ito,S.Ota,K.Horikawa,S.Yamane,A.Casely,J.VAN DER MEER,Michel.J,Kardasis,T.Barry,Ortega,H.Einaga,A.Cidadao

Hiroyuki Oyamada
雲の切れ間を待っての撮影でした。
シーイングは良いほうでした。

≪東京都  多摩市 小山田博之≫
[Hiroyuki Oyamada : Takasaki Gumma Japan]

Kunihiko Suzuki
黒雲が一時覆った後の晴れ間で1枚だけ撮影できました。
NTBs outbreak #1の後方と思われる領域はNEBにも明るいスジが何本か入り込んでいる
ようです。
#3がすでに追いつきそうです。

先日9月11日に、木星を4枚撮ったのち、不覚にも望遠鏡を片付けずに寝むりこけてしま
いました。
早朝に目が覚めたら、悲惨なことになっていました。
電源装置を入れたプラのケースは内部が数p水没、タカハシの7×50ファインダーの対
物フード内も水がたっぷり。しばし、呆然として立ち直れませんでした。
一昨日の日曜は電気関係や光学関係(ADC内部も水、カメラや拡大光学系、ファインダ
ー内部の水だらけ)の
分解、清掃、乾燥でした。
12v電源は再起不能に。モータードライブのコントローラーや自作フォーカサーは今の
ところ動いています。
赤道儀本体は分解清掃はしていませんが、内部の水が気がかりです。どんだけ雨が降っ
たのやら・・・。
こんな惨事でも、ニュートン反射望遠鏡本体は意外にも被害がなかったです。
反射式だから、洗えば済むだけの話ですからね(^^;
みなさまもお気をつけください。

[Kunihiko Suzuki : Yokohama-city Kanagawa-Prefecture Japan]
≪神奈川県  横浜市  鈴木邦彦≫

Yasuaki Sato
わずかな晴れ間をねらいましたが、シーイングは最悪でした。

-----------------------------------------------------
[Sagamihara-shi Kanagawa-prefecture Japan]
≪神奈川県相模原市  佐藤康明≫

Tutomu Ishibashi
雲間の撮像です。
エウロパ(U)の経過もあるのですが、NTrZにあるのは、♯3のoutobreakでは無いかと思います。
間違いでしたら、お知らせ下さい。訂正して再送させて頂きます。

(Tutomu-Ishibashi Kanagawa-P Japan)
≪神奈川県  相模原市  石橋力≫

Mitsuji Morita
上空の気流の乱れか相変わらずシーイングが悪く、細部は不明である

≪滋賀県守山市  森田光治≫[Mitsuji Morita:Siga Japan]

Satoshi Ito

≪愛知県  春日井市  伊藤了史≫[Satoshi Ito. Kasugai City,Aichi,Japan]

Satoshi Ota

[Tomigusuku city Okinawa Japan]
≪沖縄県  豊見城市  大田 聡≫

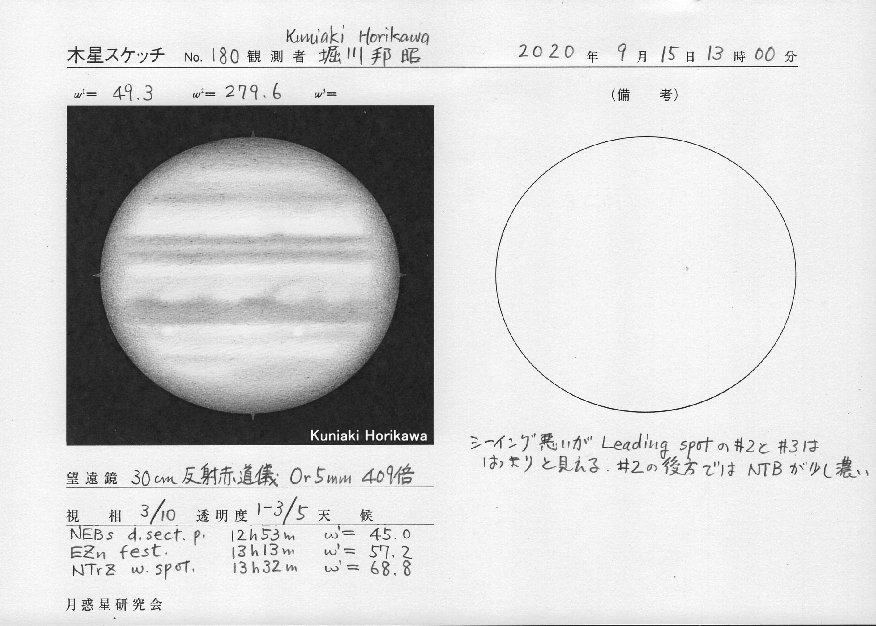

Kuniaki Horikawa
21時前に晴れていることに気づいたのですが、観測準備中に曇ってしまいました。
あきらめきれずに空を眺めていると、風向きが一定しないので、チャンスがあるかもと
1時間くらい粘っていたら晴れました。
すでに西に傾いてシーイングは悪かったのですが、outbreakの#2と#3の白斑を見ることができました

≪神奈川県横浜市泉区  堀川邦昭≫[Kuniaki Horikawa:Kanagawa Japan]

Satoru Yamane

≪静岡県富士宮市  山根 悟≫[Satoru Yamane : Fujinomiya-City Shizuoka-Pref. Japan]

Andy Casely
I had some excellent conditions on the 15th,and though I’ve not made much of a dent in the processing yet,
here’s the RGB in fair seeing from 15th Sept,plus CH4 images and a map.

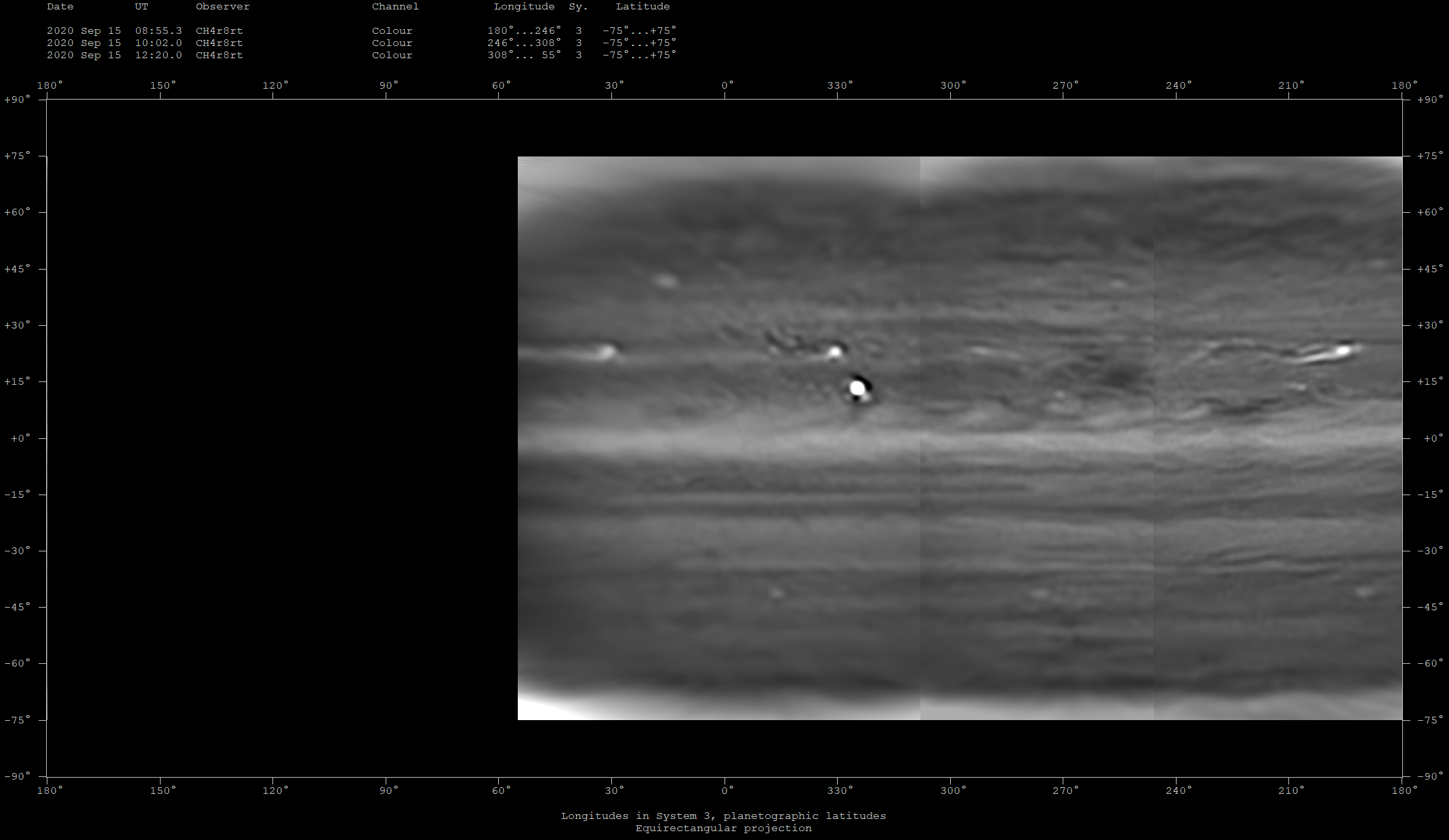

The CH4 covers all three NTBs outbreaks (l to r) #2,#3 and #1,
and processed to be as consistent as possible across all frames. #1 looks very powerful indeed,
with a strong bright lower CH4 streak just behind the head (nearly absent in #3,but present in #2),
and #1 also has a distinct long dark structured CH4 segment over 30deg in length behind the head.
There is a slightly brighter CH4 streak near the end of the tail of #1,f.
The methane-dark region on the NEB. #3 has dark material in the upper part of its 17deg tail,
but very little light material in the lower part - in very strong contrast to the appearance of #1 near Day 9 (e.g. my 24th & 26th August images).
#2 is rising,with a long pale tail on the lower side. Europa is below outbreak #3 in the map.

The RGB image from early in the evening had the NTBs outbreak #1 looking very strong indeed,
spilling into neighbouring belts four weeks after its first appearance.
Also really cool is the almost spiral three-armed feature which looks associated with a small outbreak on the NEB,just below the head of the big NTBs outbreak.
It was prominent in all channels. Seeing was pretty much the best of the year for this RGB,
green was sharper than red,and blue wasn't far away.
I’ll process the remaining images as soon as I can.

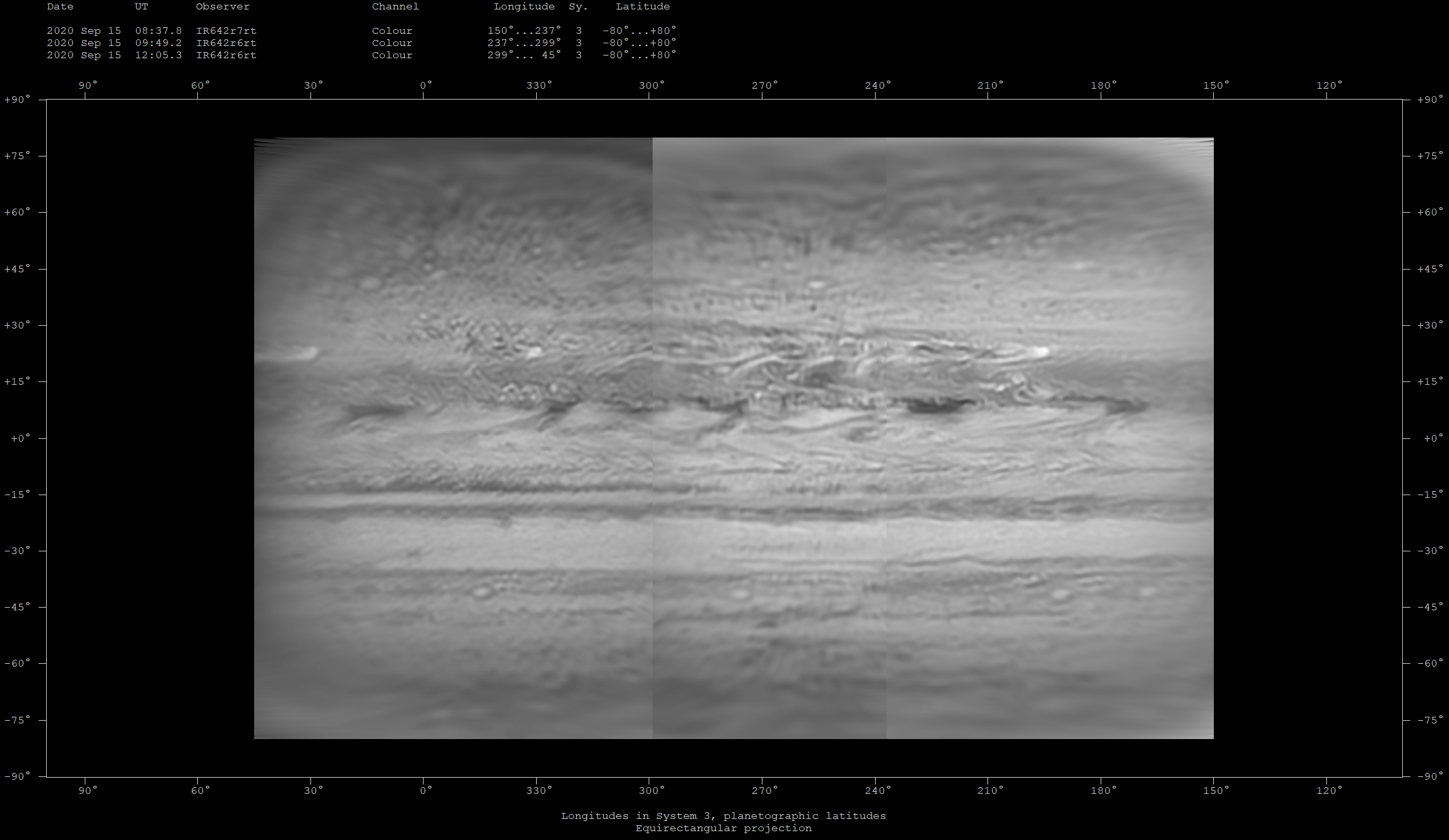

Here are a series of four images and an RGB map from 15th September,covering most of the planet and all three NTBs outbreaks.




Completing the set from the 15th September's accidentally epic session - IR images and map,to go with RGB & CH4 posted previously.
I missed the focus on the last IR,which is why it appears a bit wobbly,but otherwise the data is pretty good across the length of outbreak #1 to the head of #3.
The head of outbreak #1 almost appears to be anastomosing,with the wavelength increasing from tight around the head to longer across the first 50deg,
before transitioning to the region where material is spreading towards other belts (near the methane-dark spot),
with three breaches into the NEB between 240 and 280deg. Some of these regions looked amazing in IRTF today!





[Andy Casely,Sydney,Australiaa]

Jacques VAN DER MEER

[Jacques VAN DER MEER: La Ciotat (13) France]

Michel Jacquesson



[Michel Jacquesson : Sevigny-Waleppe (Ardennes) France]

Manos Kardasis

[Manos Kardasis,Glyfada-Athens;Greece]
《カーダシス マノス:ギリシャ アテネ》

Trevor Barry
Imaged Jupiter September 15th in good seeing at all wavelengths. Have a significant volume of data and it is all good,
have animations at all wavelengths other than UV. Have good depth of resolved detail across the field.
Of course outburst #1 dominates these data,I quite like Damian’s description of it as “The Jovian Comet” seems quite appropriate.
Other detail I note is a concentrated bright spot within the NEB resolved at all wavelengths along with a very dark thin band on the Southern edge of the NEB;
particularly prominent in IR and CH4 data.







































[Trevor Barry:Broken Hill:Australia]

Jordi Ortega
2020/09/15 19:54 (UT)
CM1 301.8 CM2 170.0 CM3 263.5
Celestron 11 f25 ASI 290
Seeing 5/10 Trans 8/10

[Jordi Ortega:Barcelona,SPAIN]

Hideo Einaga

[Hideo Einaga Kasai-City Hyogo-Prefecture Japan]
≪兵庫県  加西  永長英夫≫

Antonio Cidadao








≪アントニオ  シダダオ  ポルトガル≫
[Antonio Cidadao  Oeiras - Portugal]
