土星 月惑星研究会 関西支部 （最新）
ALPO-Japan Latest
Saturn Image 2001/10/25(UT)

森田光治,中井健二(Draw)(CCD),池村俊彦,新川勝仁

M.Morita,K.Nakai(Draw)(CCD),T.Ikemura,M.Niikawa

Mitsuji Morita(200mm Newton, Digital still camera NEC PICONA)

seeing 5/10 - 6/10
≪滋賀県守山市　森田光治≫

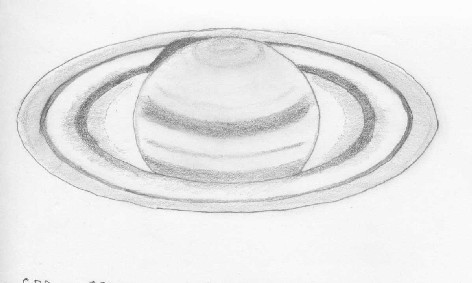

Kenji Nakai(Drawing: LX200-25(254mmF10SC)
2001/10/25 18:00(UT)
LX200-25(254mm Schmidt Cassegrain f/10)
Radian10mm(used by pentaprism)
CM1=245.3  CM3=155.6 B=-26.05  B'=-25.92
seeing:4-5/10  transp.:3/5
comment:
SPR〜SSSTBが水色っぽい（淡い青灰色）。
SPRに白雲のような物が時々見えるが、シンチレーションによるいたずらか？
STBはシーイングが悪いためか見えにくい。
STrZは明るいが、白斑などは出現していない。

PS:この後休憩してデジカメで撮像していると急にシーイングが良くなった。
seeing:7/10. ただし、土星の方向のみ。他はシーイングがあまり良くない。
いかにも撮ってくれと言わんばかり。しかし、暫定的に画像処理してみたが、
どうもパッとしません。今度も没になるかも知れません。m(__)m
≪広島市　中井健二≫
Kenji Nakai( LX200-25(254mmF10SC , Nikon Cool Pix 990)


data:2001/10/25 18:50:27(UT)
      CM1=274.9  CM3=184.0       B=-26.05  B'=-25.92
      LX200-25 F10(254mm Schmidt Cassegrain )
      Nikon CoolPix990+LV10mm+pentaprism(f/22.8)
      Exp.1/8sec  8frames composite
      seeing 7/10  transp. 3/5
      ≪広島市　中井健二≫


(あまりに暗かったので、濃度調整したものです。池村)

Toshihiko Ikemura (310mm Newton, Digital still camera NEC PICONA)
 ≪愛知県名古屋市　池村俊彦≫
Masahito Niikawa (280mm SC, Digital still camera Minolta DimageEx1500)
Saturn on Oct.25, 2001
De = -28.6, E.Dia = 19.9"

[R1]
2001/10/25 17:27:57 (UT)
CMI = 226.6, CMIII = 137.7
14 frames composite

[R2]
2001/10/25 17:41:44 (UT)
CMI = 234.7, CMIII = 145.4
19 frames composite

[R3]
2001/10/25 17:54:13 (UT)
CMI = 242.0, CMIII = 152.5
24 frames composite

[B1]
2001/10/25 18:15:24 (UT)
CMI = 254.4, CMIII = 164.4
29 frames composite


Observer:Masahito Niikawa
Email:zba03198@bird.zero.ad.jp
Obs.site : Mozuhonmachi Sakai-City Osaka Japan
Telescope : C11 (SC) D=280mm fl=2800mm

Camera:Minolta DimageEx1500 Digital Camera taking lens removed
CCD:ICX205AL (Sony Monochrome CCD)

Blue Images
indicate [B]
Filter: B390 (360nm - 500nm)
Exposure :0.5 sec
Effective F No.: 44 (XP24mm Eyepiece Projection)

Near IR Images:
indicate [R]
Filter: R60 (600nm - 1000nm)
Exposure : 0.25 sec
Effective F No.: 44 (XP24mm Eyepiece Projection)

Seeing = 6/10
Transparency = 4/6

Image Processing;
Software-Binning
Enhanced with unsharp masking method.
THE SMALL BRIGHT ZONE OBSERVATIONS IN THE SPR OF SATURN.
By Masahito NIIKAWA

Mr. Ed Grafton, Houston Texas observed the small bright "zone" like a polar ring in the SPR of Saturn at 2001/10/18 08:52 UT.
Few years ago the bright "spot" in the SPR sometimes observed by J-ALPO observes, however it had not been obvious.
In 2001, The SPR of Saturn decline to the earth, then it becomes easier for us to observe the South Polar Region of the Saturn.
The image taken by Mr. Ed Grafton shows small bright zone existence.

Ed Grafton's images
And M. Niikawa , Sakai Osaka also observed this small zone at 2001/10/25 17:43 UT.

In accordance with the both observations the small South Polar Zone is 1.5" or 2.0 " in diameter.
The continuous observations with the various wavelengths are needed.

≪大阪府　堺市　新川勝仁≫
ALPO-Japan Latest　Saturn Section
