Jupiter Image 2002/02/25(UT)

伊藤紀幸,永長英夫,河原義則,富田安昭,奥田耕司,安達 誠,
Clay Sherrod,Ed Grafton,Antonio Cidadao

N.Ito,H.Einaga,Y.Kawahara,Y.Tomita,K.Okuda,M.Adachi,
Clay,E.Grafton,A.Cidadao

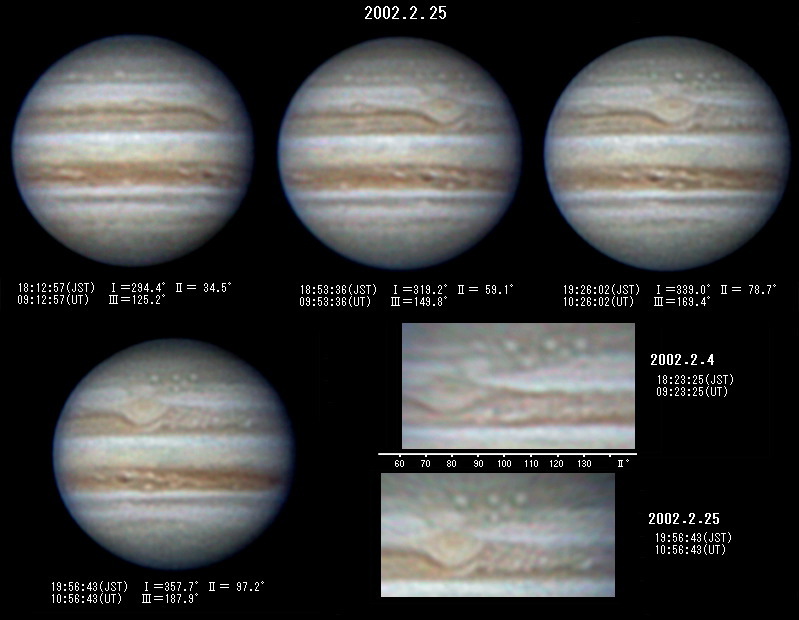

Noriyuki Ito (600mm Cassegrain, Digital Video SONY DCR-TRV20)


コメント
夕方薄雲があったものの19時近くから晴れ,ほぼベスト(7-8/10)大気の状態でした。
STBの永続白斑BA(2系79度)がGRS(81度)の南(上)側を経過しています。
SSTBの小白斑群(68,87,97,108度)も経過中ですが,後方2つの間にある小白斑
とBA後方の白斑(97度)とが接近しています。
STrZ37度に暗斑が,NEBにはBargeが70度,Notchが29,83度に確認できます。

新潟県立自然科学館 60cm カセグレン式反射望遠鏡 K-40mmコリメート
各10枚コンポジット     SONY デジタルビデオカメラ DCR-TRV20にて撮影
≪新潟県 伊藤紀幸≫

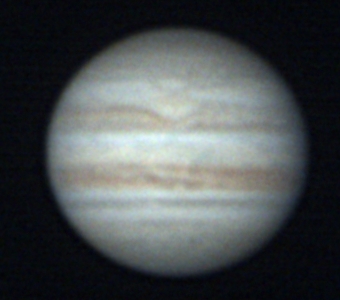

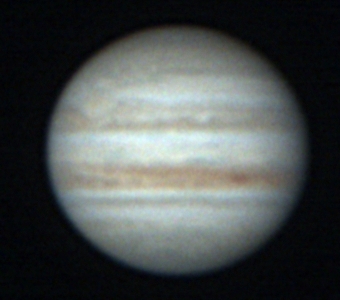

Hideo Einaga (250mm Newton, Digital Still Camera NEC PICONA)
2002/02/25 09:24:21 (UT)
CMI = 301.4, CMII =  41.4, CMIII = 132.1
De =  +2.0, E.Dia = 42.45"
8 frames composite
Seeing=3/10,Trans=1/5
25cm+barlow3x(F=34)+Picona(1/7s)
・STrZ CM付近 やや赤味を帯びた斑点が成長中。


2002/02/25 10:13:54 (UT)
CMI = 331.6, CMII =  71.4, CMIII = 162.1
De =  +2.0, E.Dia = 42.45"
5 frames composite
Seeing=3/10,Trans=1/5
25cm+barlow3x(F=34)+Picona(1/7s)
・BA このまま無事通過か?


2002/02/25 10:32:14 (UT)
CMI = 342.8, CMII =  82.4, CMIII = 173.1
De =  +2.0, E.Dia = 42.44"
7 frames composite
Seeing=3/10,Trans=1/5
25cm+barlow3x(F=34)+Picona(1/7s)


2002/02/25 11:37:49 (UT)
CMI =  22.7, CMII = 122.1, CMIII = 212.8
De =  +2.0, E.Dia = 42.44"
4 frames composite
Seeing=3/10,Trans=3/5
25cm+barlow3x(F=34)+Picona(1/7s)
・薄雲がかかり、非常に透明度が悪い中、
 BAが気がかりなので無理に撮影する。
 輝度不足の画像ばかり。

HIDEO EINAGA ≪兵庫・加西 永長英夫≫


河原義則 Yoshinori Kawahara (250mm Cassegrain, Digital still camera NEC PICONA)


seeing ;5/10

≪愛知県海部郡弥富町 河原義則≫

Yasuaki Tomita (255mmREF, Bitran 32L CCD Camera)


2002/02/25 10h18m(UT)
I=334.1 II= 73.8 III=164.5
De= +2.0 E.Dia=42.45"

CM等算出用ソフト、何かありましたら
(日本語、英語かまいません)
教えてください。
      ≪群馬県佐波郡 富田安昭≫

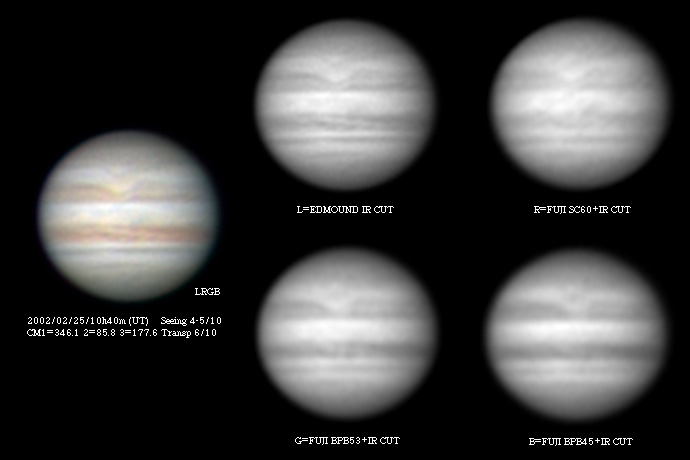

奥田耕司 Koji Okuda (250mm Newton, BITRAN BT-01 Cooled CCD Camera)
:薄雲を通しての撮像
:撮像中CCDカメラの故障のためB画像が撮像できず、
 やむなく6分前のB画像使用した。
≪滋賀県信楽町 奥田耕司≫

静電気が激しく放電し、CCDがダメになってしまったとのことです。

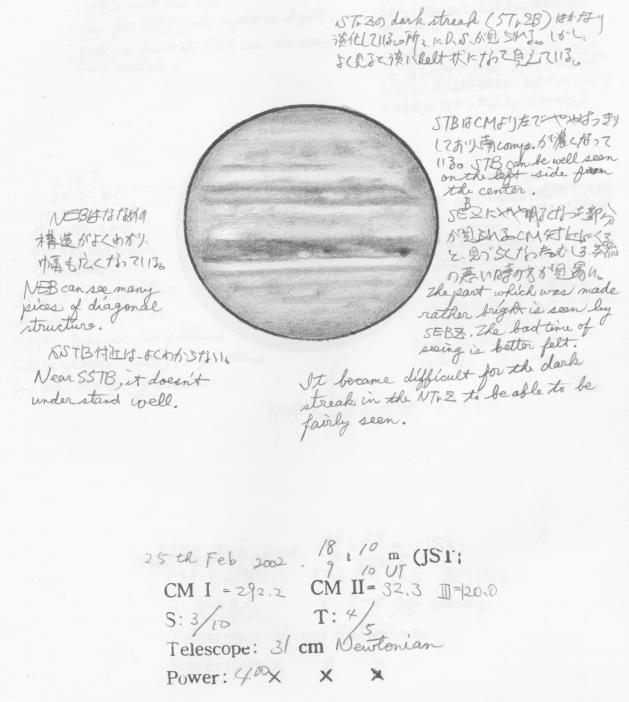

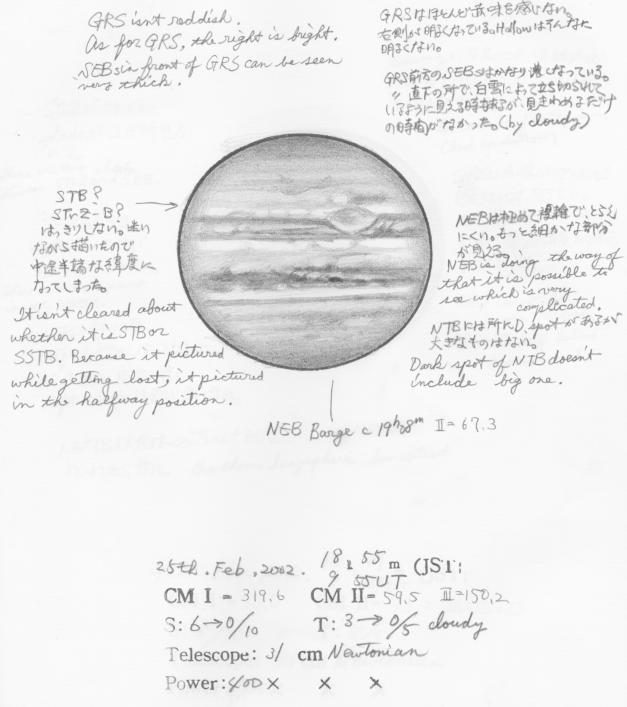

Makoto Adachi (Drawing: 310mm Newtonian)

----------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------
≪滋賀県 大津市 安達 誠≫

Dr. P. Clay Sherrod (310mm Schmidt Olympus C-3000 camera)

One image from tonight's effort due to increasing clouds and very poor
seeing conditions.  Interesting development since last night (Feb. 24,however).
Note dark barge B-4 on far right edge.  NEB bright diagonal rift is now
complete in disjuncture of the NEB from near similar long. of the GRS all
way to dark barge B-4 in NEB.  Note the very dark new spot in the SEBn, just
fol. the GRS and continued activity fol. GRS and oval BA.
Clay
----------------------------------------
Dr. P. Clay Sherrod
sherrodc@ipa.net
Arkansas Sky Observatory
www.arksky.org
[Dr. P. Clay Sherrod  Arkansas  State U.S.A]
 ≪クレイ シェラード アメリカ アーカンサス≫

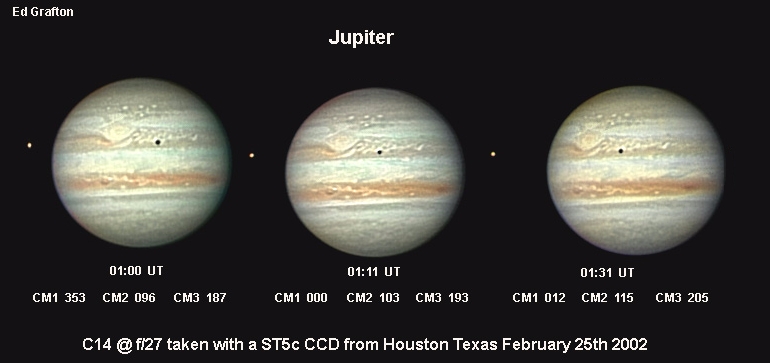

Ed Grafton (14 inch f/11 Celestron SCT, ST6 CCD medium resolution mode)
Hi Jupiter Observers,
Here is an observation from Feb. 25th 2002. Europa and its shadow are
present. The oval BA can be seen to be just past ( preceeding ) the
longitude as the GRS and has more of an enlongated appearence than before
the encounter with the GRS, almost as if it were being squeezed between the
GRS and the STB as it passes. It has a rather flat border on its S. side and
the visible boundary where it meets the GRS is very tenous or non-visible.
NEB rift is prominent and white spots and festoons are visible.
The sky was very transparent, 9/10, and seeing was good, 7/10, with a 5 MPH
SSW wind. Light dew was present. The weather was mild with the temperature
in the mid 60's in the early evening.

Barlow Projection to f/27 aprox .21 arc seconds per pixel.

Image data for 01:100
  5 BLUE  + IR rejection, .3  seconds, SBIG filter
  5 GREEN + IR rejection, .3  seconds, SBIG filter
  5 RED   + IR rejection, .3  seconds, SBIG filter
  ~50 clear filter, No IR .1  seconds, SBIG filter

Image data for 01:11
  5 BLUE  + IR rejection, .3  seconds, SBIG filter
  5 GREEN + IR rejection, .3  seconds, SBIG filter
  5 RED   + IR rejection, .3  seconds, SBIG filter
  ~50 clear filter, No IR .1  seconds, SBIG filter

Image data for 01:31
  5 BLUE  + IR rejection, .3  seconds, SBIG filter
  5 GREEN + IR rejection, .3  seconds, SBIG filter
  5 RED   + IR rejection, .3  seconds, SBIG filter
  ~35 clear filter, No IR .1  seconds, SBIG filter

  Ed Grafton          E-Mail: egrafton@ghg.net
   [Ed Grafton, Houston Texas]

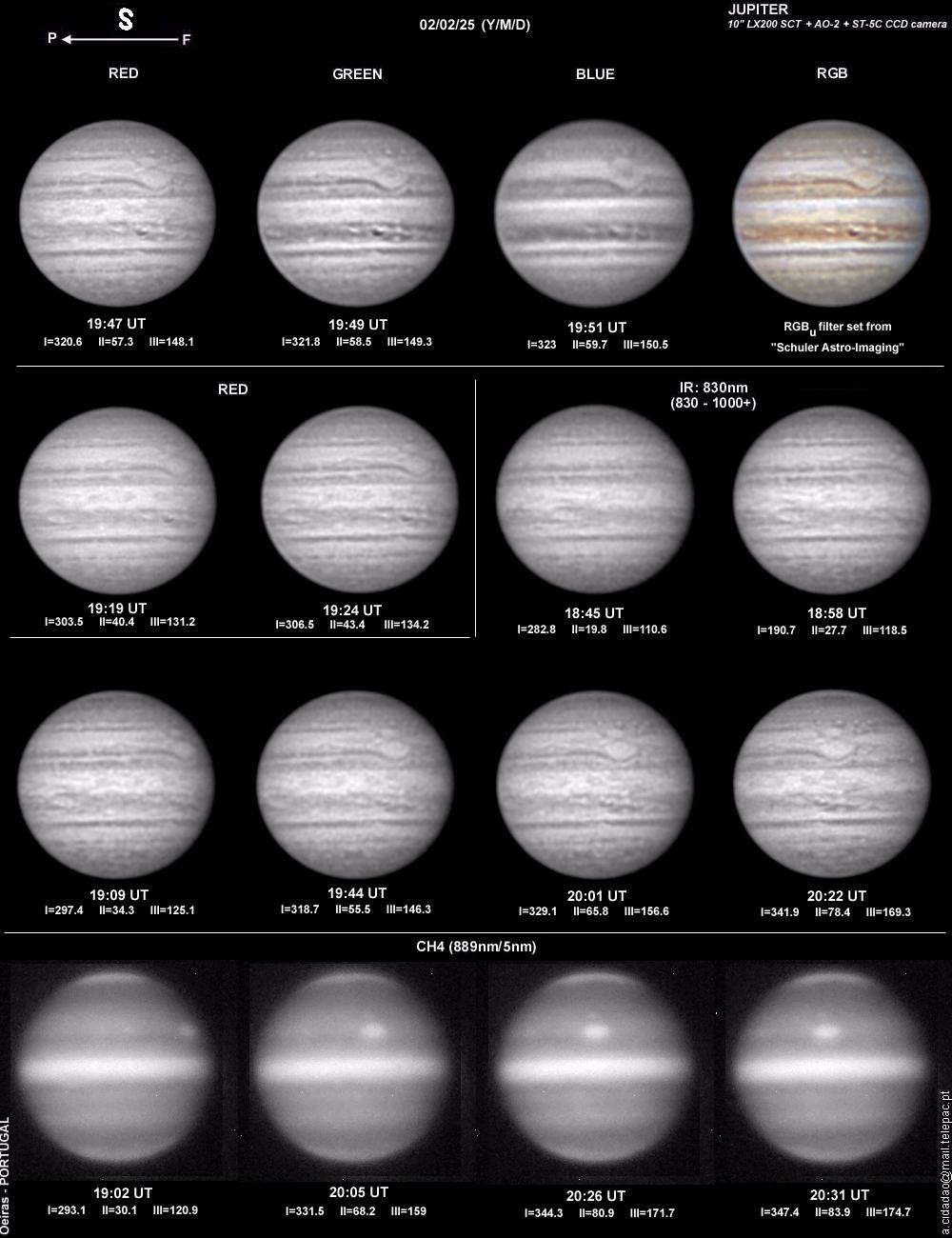

Antonio Cidadao (280mm C11+ST-237 CCD camera)
この画像をクリックすると
元の大きさの画像が見えます。

Please click this image,
You can regard a image of
the original size .

Here are the images obtained on Feb 25 (I already have send some IR/CH4
results).
RGS/BA, SSTB ovals, STr band oval, NEB rifts and barge are seen.
Observing the first CH4 image (and the other IR and visivle images for
comparison) it appears that there is CH4-bright material associates with
the NEB rift that is near the p limb in the color image. At that region,
the methane-bright EZ is distorted towards N. Just S of this distortion is
a faintly methane-dark festoon (dark in IR).
Good observations.
Antonio
 ≪アントニオ シダダオ ポルトガル≫
