火星 月惑星研究会 関西支部 (最新)


ALPO-Japan Latest
Mars Image 2003/07/03(UT)

Clay Sherrod,Don Parker,Ed Grafton,Christophe Pellier,Eric Ng,Carmelo Zannelli

Clay,Don,E.Grafton,Christophe,Eric,C.Zannelli


解説(安達)
ヘラス(Hellas;300W,-50)の北方に発生した黄雲は南東方向に拡がった
様子が見て取れます。また、ヘレスポントス(Hellespontus;330W,-45)の北
部にも小規模ながらダストが見られる様です。全体の位置は明らかに南に
移動しています。明るい位置だけではなく、ぼんやりと霞んだ地域が東に
拡がっている様子が読み取れます。この様子はD.C.パーカーの画像でわか
ります。グラフトンの画像ではデューカリオン(Deucalion;332W,-15)付近
の位置に流れ込んでいる様子が読み取れます。どうやら黄雲は西に2波に
分かれて進行している様です。一方、フランスのクリストフ・ペリエはダ
ストがキンメリウム(Mare Cimmerium;220W,-20)のすぐ西の西経230°南緯
25°付近にまで達していることをとらえています。今日の観測で東西のす
べての範囲が確認できました。(reported by 6 obsevers)

July 3rd, 2003
The cloud which occurred in the north of Hellas(295W,-50) spread
to the southeastern direction. Also, small dust cloud is seen in
the northern part of Hellespontus(330W,-45), too. The position of
the whole cloud moves to the clarifying south. The hazy area in
addition to light cloud is spreading to the east. It understands
this state well by the image of D.C.Parker. In the image of Ed.
Grafton, the state that dust is flowing into the east of Deucalion
(332W,-15) is recorded. The dust cloud separates into two and
seems to have advanced towards the west. Cristophe Pellier(France)
is recording that dust reached (position;230W,-25) the west of
Mare Cimmerium(220W,-20). It understood the state of the Martian
surface by the observation today.
FROM Makoto ADACHI
-------------------------------------------------------------------------------------

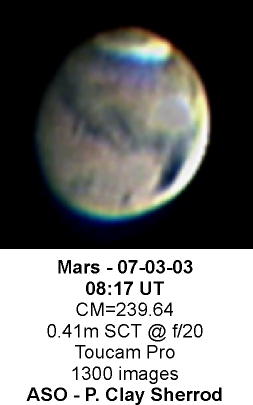

Dr. P. Clay Sherrod (410mm SC : ToUcam PRO)
Attached is a decent image of Mars this morning, showing the developing
large dust cloud in the Hellas basin south of Syrtis.  The large and
apparently spreading cloud is very distinct in this image.

under the Planetary Patrol link/Browse to Mars and just press enter (and
date if not July 3.....)
Image is composite of 1,300 images with the ASO-Meade 0.41m SCT, f/20 and
Toucam webcam over a 100 sec. period.  Registax was used for all alignment
and processing.  No color corrections employedSeeing was poor, but excellent
detail is showing.
[Dr. P. Clay Sherrod  Arkansas  State U.S.A]
≪クレイ  シェラード  アメリカ  アーカンサス≫

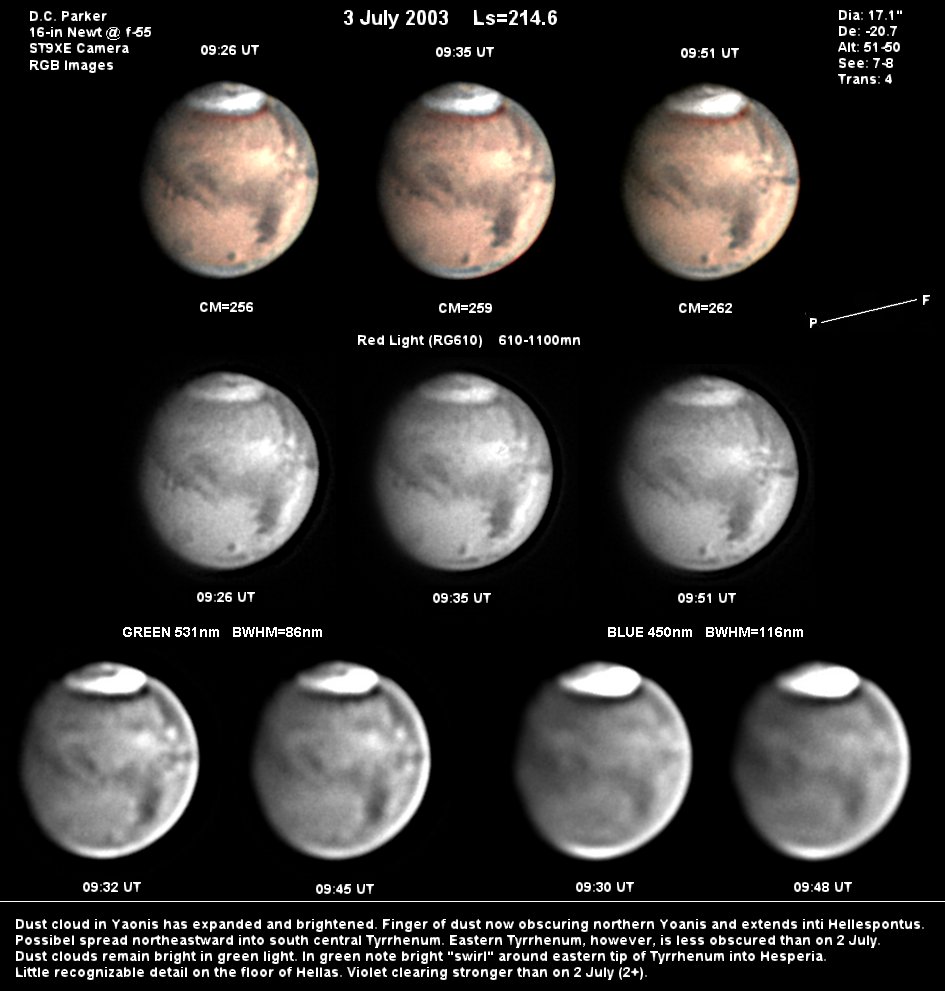

Donald C Parker(16-in (41cm) Newtonian, ST9E CCD Camera)

MARS IMAGES   3 July, 2003

D.C. Parker, Coral Gables, FL. 16-in (41cm) Newtonian
ST9XE CCD Camera  Eyepiece Projection @ f/55.4
Integration Times:
RED (RG610 Red Filter, 610-1100nm: NO IR Rejection)    0.16-0.17s 1-2  images
GREEN (CFW8C, 531nm central; BWHM 86nm)    0.39s   6 images
BLUE (CFW8C, 450nm central, BWHM 116nm)   1.250s  7-8 images
Images bias,flat and dark corrected.

Seeing good (7-8, Pickering).
Transparency 4-4.5m with slight haze. Wind SSE 0-2 kts. No dew.
Altitude = 51-50 degrees.

Dust cloud in Yaonis has expanded and brightened.
Finger of dust now obscuring northern Yoanis and extends inti Hellespontus.
Possibel spread northeastward into south central Tyrrhenum. Eastern Tyrrhenum
however, is less obscured than on 2 July.
Dust clouds remain bright in green light.
In green note bright "swirl" around eastern tip of Tyrrhenum into Hesperia.
Little recognizable detail on the floor of Hellas. Violet clearing stronger
than on 2 July (2+).
[ Donald C Parker Coral Gables, Florida U.S.A]

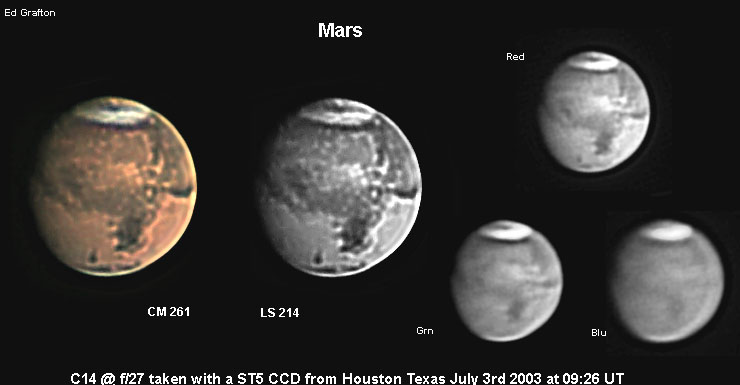

Ed Grafton (14 inch f/11 Celestron SCT, ST6 CCD medium resolution mode)
Hi Mars Observers
The Dust Cloud has expanded South and now obscures the southern part of
Hellas. Other changes since July 2nd are also present. The western end of of
Sinus Sabaeus and Mare Serpentis have bright cores present. Another bright
core has appeared near the eastern rim of the SPC.
The sky was mostly clear with only a few clouds in the clouds. The
transparency was very good 8/10 and the seeing was good to excellent 8-9/10.
C14 @ f/27, ST5 CCD

RED  + IR rejection, .15  seconds, SBIG filter
GREEN + IR rejection, .3  seconds, SBIG filter
BLUE  + IR rejection,  .5  seconds, SBIG filter
Luminance, IR only, 700-1000nm  .12  seconds,  Edmunds filter
[Ed Grafton, Houston Texas U.S.A.]

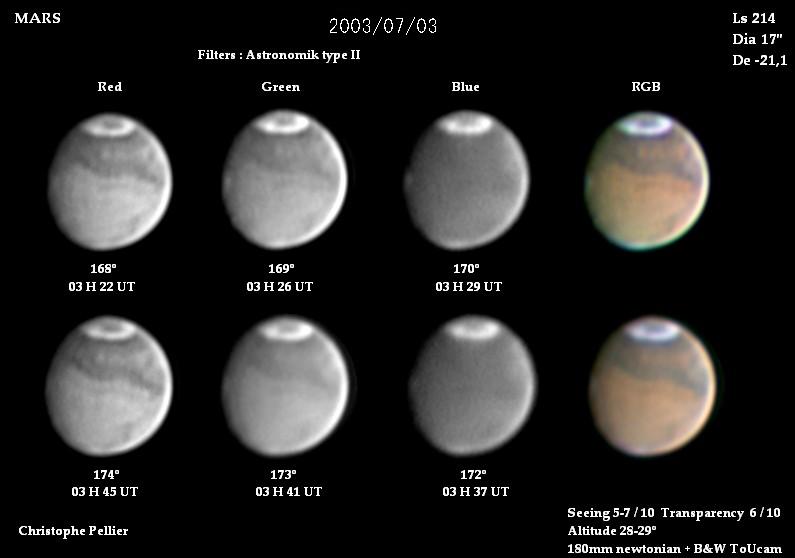

Christophe Pellier (180mm Newtonian webcam Toucam Pro)
Hello Mars observers :
This morning I had a brief window of clear sky between two rainy days with
thunderstorms, and surprisingly the seeing was quite good.
With the B&W ToUcam I have been able to use a set of R, G, B filters from
Astronomik and I find that the RGB images obtained match almost exactly the
visual aspect of the planet (to my eyes of course), colors and contrasts. I
think this is a good way to go ! The images made with the color ToUcam this
same morning aren't satisfactory.
I see no dust activity at these longitudes, unlike the Hellas longitude, as
seen on the beautiful observations made by the American observers. A white
cloud is just barely seen over Tharsis.

[Christophe Pellier  Bruz City , France]
≪クリストフ  ペリエ  フランス≫

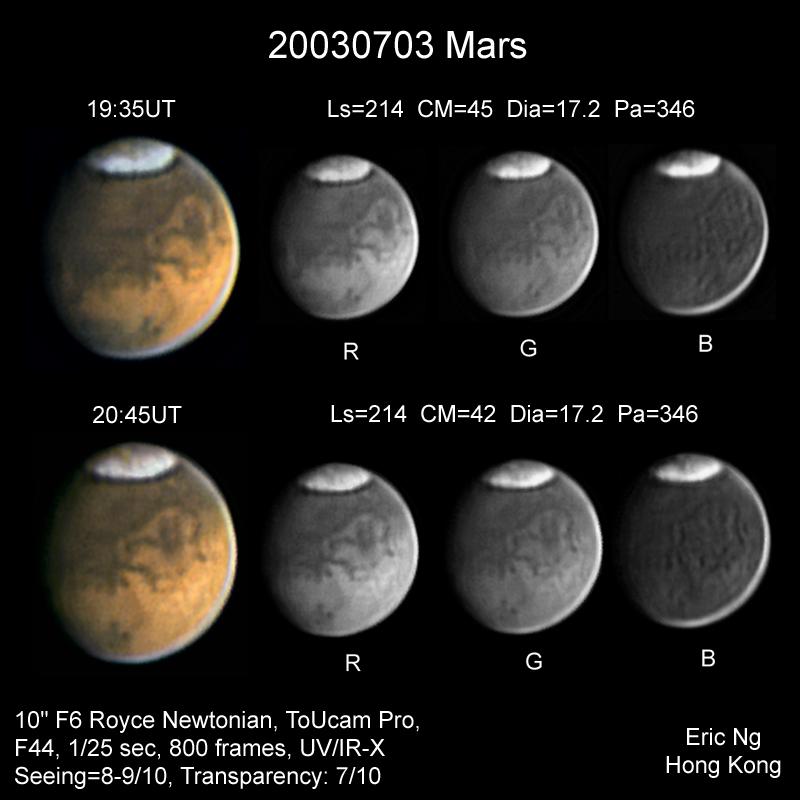

Eric Ng (10" F6 Newtonian homebuilt reflector : ToUcam Pro)
Dear friends
Here were two mars images taken in this morning. God blessed that the dust patch seems diffused
already. These two are so far my most detailed shots. Seeing and transparency were good, no wind.
Please feel free to comment

Kind Regards
[Eric Ng, Tai Po site Hong Kong, China]

Carmelo Zannelli ( Newton (Vixen) D=130mm F=720mm: webcam Philips ToUcam pro)

Hello Mars observers,
please excuse my incorrect english.
This is Mars image of 2003/07/03 with my newton Vixen 130 mm. f/5,5.
After a period of about 5 days with the sky coloration tending to yellow because africans atmospheric perturbation, today the sky was nearly blue and the seeing was 5/10 and trans. 6/10.
This Mars image isn't so good as 06/25 because seiing was a little bad.

Technical specifications:
Date: 2003/07/03 02:30 (UT)
CM: 155,41° Diameter: 17,10"
Magnitude: -1.5
k=0.902
Phase angle: 36.5°
Elongation: 124.8°
Light time: 0h 4m 34.3s
Centre of disk at long 155.3°, lat -21.1°

Image RRGB;
Webcam Philips Toucam Pro with IR-Cut filter;
Eyepiece projection: Meade SP 6,4 mm to F/66 (about 8,5 meters);
919 frames of 1800 stacked at 15 FPS and 1/25 sec exposition;
Seeing 5/10; Trans 6/10;
Site: Palermo - Sicily (Italy);
Acquisition: K3CCDTools;
Elaboration: Registax; Photoshop.
Autor: Carmelo Zannelli - Palermo (Italy
[Carmelo Zannelli ,  Sicily-Italy]
