Mars Image 2003/07/13(UT)

中井健二,阿久津弘明,
Frank J Melillo,Clay Sherrod,Domenico Licchelli,Christophe Pellier,Mario Frassati,Carmelo Zannelli,Don Parker,Ed Grafton,Eric Ng,Fabio Acquarone,Paolo Baldoni,Paolo R. Lazzarotti

K.Nakai,H.Akutsu,Frank,Clay,D.Licchelli,Christophe,M.Frassati,C.Zannelli,Don,E.Grafton,Eric,F.Acquarone,Baldoni,P.Lazzarotti


解説(安達)
  日本からはシルチス(Syrtis major;295W,+0)付近の観測となった。この
ところ、ヘラス(Hellas;295W,-50)がしだいに明るくなってきている。今回
の観測では全体が黄色く観測された。パーカー氏(D.C.Parker)の画像では
南極冠の内部の様子が非常に良く分かる。また、ニクスオリンピカ(Nix
Olympica;130W,+20)は午後になってもまだ白雲のでないことが確認された。
エリック氏の画像ではサバエウス(Sinus Sabaeus;340W,-5)は北の方が南よ
りも濃くなっていることである。原因はよく分からない。(reported by 14
observers)

July 13rd, 2003
It became observation near Syrtis major (295W,+0) from Japan.
Recently, Hellas (295W,-50) becomes bright. In the observation this
time, Hellas was yellowly observed. D.C.Parker recorded a state
inside SPC in detail. Even if Nix Olympica (130W,+20) becomes in
the afternoon, yet, cloud doesn't come out. Eric Ng recorded that
the northern side of Sinus Sabaeus (340W,-5) became thicker than
the southern side. It doesn't find the cause of this well.
FROM Makoto ADACHI
-------------------------------------------------------------------------------------

Kenji Nakai( LX200-25(254mmF10SC) , ToUcam Pro)
2003/07/13 27:04:30(JST) 18:04:30(UT)
CM=274.3 LS=221.1 Dia=19.0" De=-21.0 P=344.5
LX200GPS-25(254mm Schmidt Cassegrain f/10)
LE7.5mm+IR Cut+ToUcam Pro
Exp.:1/25sec. 50frames stacked
seeing:3/10 transp.:0-1/5
雲が薄くなるのを見計らって撮影しましたが、
厚い雲のためにほとんどが露出不足のイメージです。
899framesのうち50framesしか使えません。
≪広島市  中井健二≫

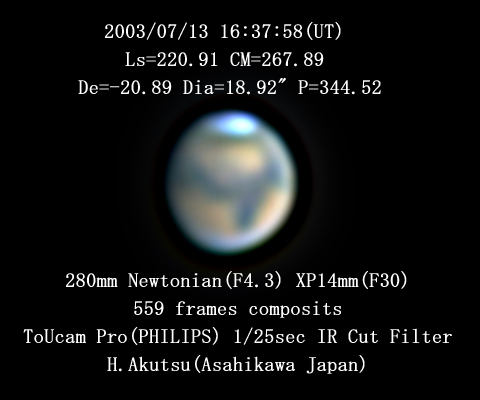

Hiroaki Akutsu(280mm Newtonian(F4.3), BJ32-C BITRAN CCD Camera)
ToUcam
極冠が小さくなってきました。
シーイングがとても悪くシルチス
が辛うじてわかる程度でした。
この日も26時前には曇ってしまい
ました。
主鏡が圧迫されていた様で直した
ら像が良くなりました。


≪北海道旭川市  阿久津弘明≫


Frank J Melillo(Celestron 203mm Schmidt Starlight Xpress MX-5)
Dear all -
Mars was imaged July 13, 2003 between 9:25 to 9:41 UT.
The seeing was about average with some clouds scattered around.
Mare Sirenum and Mare Cimmerium dominate the disk.
No dust clouds is seen at this point.  Still very dark around the SPC.

[Frank J Melillo  Holtsville NY U.S.A]
≪フランク : アメリカ  ニューヨーク≫

Dr. P. Clay Sherrod (410mm SC : ToUcam PRO)

An image of Mars from this morning; stepped the focal ratio of the 16" up to
f/35 and produced better results under still-poor seeing conditions.
Olympus Mons and Phoenicis Lacus are clearly identified on western limb.
[Dr. P. Clay Sherrod  Arkansas  State U.S.A]
≪クレイ  シェラード  アメリカ  アーカンサス≫

Domenico Licchelli (MAK-CASS 127mm F12 ToUcamPRO)

Hello observers : this morning the sky was very turbulent, and it worsened
again as the planet was getting higher ! So here is only one RVB serie ; no
other data could be obtained.
Regards
[Domenico Licchelli ,Gagliano del Capo, Italy]
≪ドミニコ・リッチェル:イタリア≫

Christophe Pellier (180mm Newtonian webcam Toucam Pro)

[Christophe Pellier  Bruz City , France]
≪クリストフ  ペリエ  フランス≫

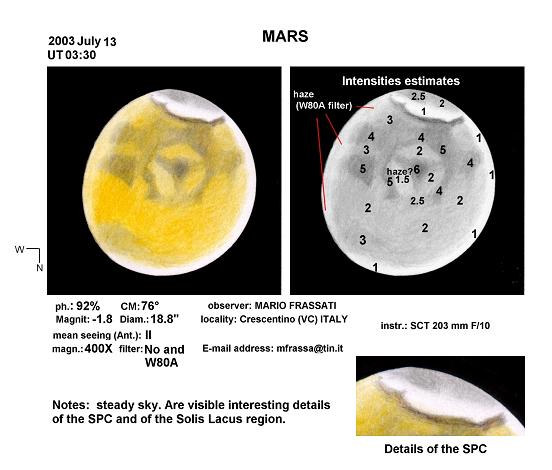

Mario Frassati(Drawing:203mm F10 SCT)
Dear
I am just arrived from the holidays in Sardinia and I have immediately observed Mars.
A very beautiful view!!!
I send you the drawing.
Kind regards
[ Mario Frassati Crescentino (VC) ITALY ]

Carmelo Zannelli ( Newton (Vixen) D=130mm F=720mm: webcam Philips ToUcam pro)

2003/07/13 01:59(UT)
C.M.: 53,86ー; Diam.: 18,80";

Telescope: Newton Vixen D= 130 mm. F= 720 mm.
Image RRGB;
Webcam Philips Toucam Pro with IR-Cut filter;
Eyepiece projection: Meade SP 6,4 mm to F/66 (about 8,5 meters);
1160 frames of 1995 stacked at 15 FPS and 1/25 sec exposition;
Seeing 7/10; Trans 8/10;
Site: Palermo - Sicily (Italy);
Acquisition: K3CCDTools;
Elaboration: Registax; Photoshop.
Autor: Carmelo Zannelli - Palermo (Italy
[Carmelo Zannelli ,  Sicily-Italy]

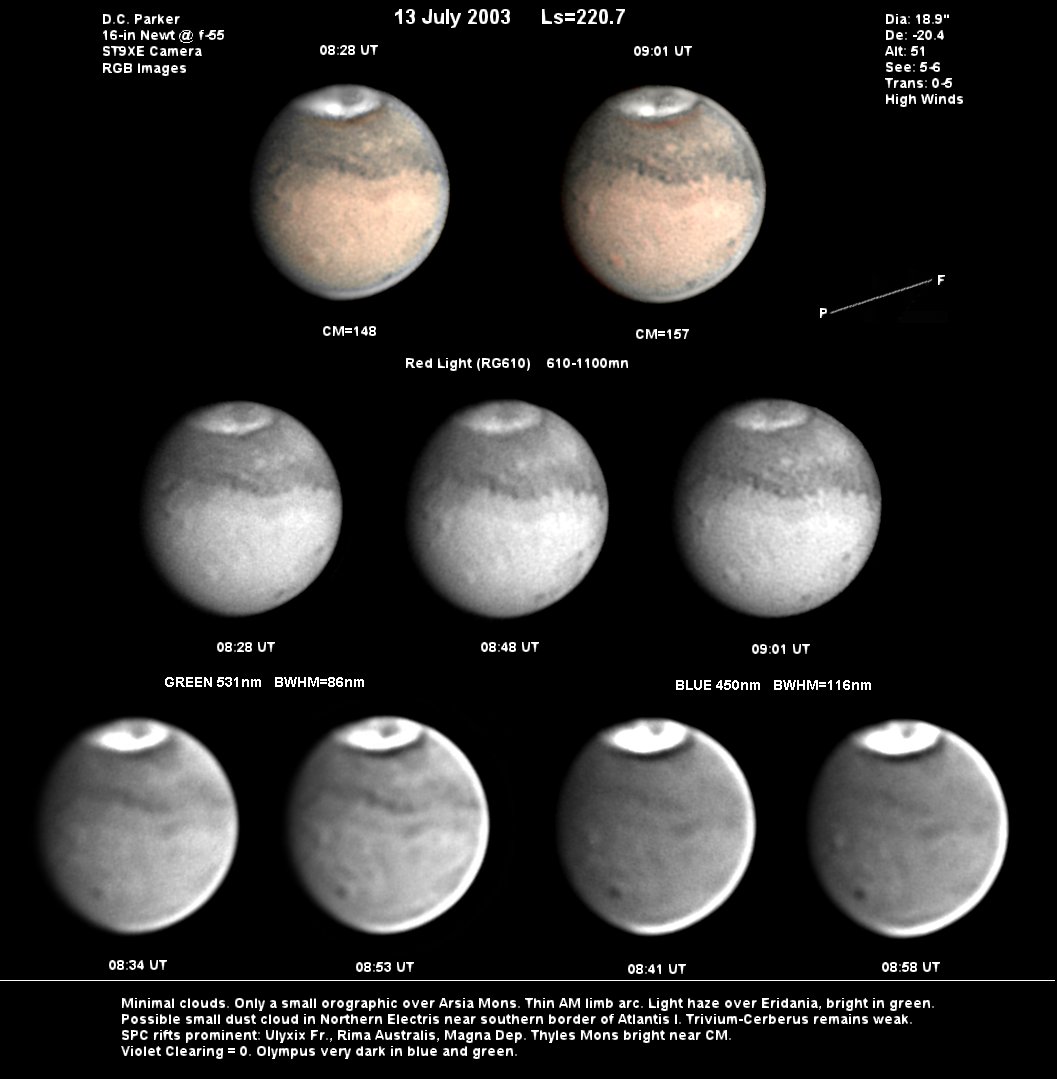

Donald C Parker(16-in (41cm) Newtonian, ST9E CCD Camera)

MARS IMAGES   13 July, 2003
D.C. Parker, Coral Gables, FL. 16-in (41cm) Newtonian
ST9XE CCD Camera  Eyepiece Projection @ f/55.4
Integration Times:
RED (RG610 Red Filter, 610-1100nm: NO IR Rejection)    0.12s 1-2  images
GREEN (CFW8C, 531nm central; BWHM 86nm)    0.37-0.39s    5-9 images
BLUE (CFW8C, 450nm central, BWHM 116nm)   1.20s  5-7 images
Images bias,flat and dark corrected.

Seeing fair (5-7, Pickering).  Transparency  variable (0-5.0 m) with frequent fast cumulus clouds.
Wind E 7-14 kts. No dew. Altitude = 51 degrees.

Minimal clouds. Only a small orographic over Arsia Mons. Thin AM limb arc. Light haze over Eridania, bright in green.
Possible small dust cloud in Northern Electris near southern border of Atlantis I. Trivium-Cerberus remains weak.
SPC rifts prominent: Ulyxix Fr., Rima Australis, Magna Dep. Thyles Mons bright near CM.
Violet Clearing = 0. Olympus very dark in blue and green.
[ Donald C Parker Coral Gables, Florida U.S.A]

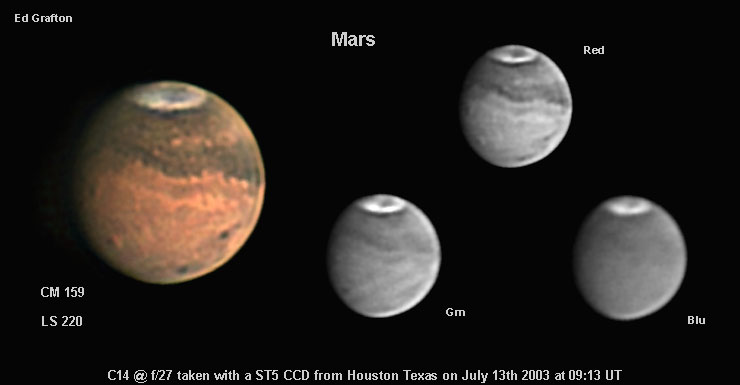

Ed Grafton (14 inch f/11 Celestron SCT, ST6 CCD medium resolution mode)
Hi Mars Observers
Here is an image from July 13th at 09:13 UT. The sky was clear, transparancy
was good 7/10 and seeing was very good 8/10.
C14 @ f/27, ST5 CCD

RED  + IR rejection, .15  seconds, SBIG filter
GREEN + IR rejection, .3  seconds, SBIG filter
BLUE  + IR rejection,  .5  seconds, SBIG filter
Luminance, IR only, 700-1000nm  .10  seconds,  Edmunds filter
[Ed Grafton, Houston Texas U.S.A.]

Eric Ng (10" F6 Newtonian homebuilt reflector : ToUcam Pro)

Attached two mars shots were taken in this morning.
Seeing was just fair and surprisingly it further degraded while mars was transiting zenith ...
I believe some local turbulent causing blur image.
Kind Regards
[Eric Ng, Tai Po site Hong Kong, China]

Fabio Acquarone(235mm F10 SCT:Toucam Pro)
Observer: Fabio Acquarone   Genoa - Italy
Instruments : Intes MK66 Deluxe focal lenght 1800  f/12
GM-8 mount
Celestron Ultima 2x
Toucam Pro   exposition 1/25 sec.
Observation locality :  Imperia (ITALY)   Lat. 43°52' 58" N    Long. 7°58' 58 E     H.00:25UT
Elaboration software: IRIS -  Stacking of 900 best frames on 1497 taken at 10 f/sec.
Color images are progressive elaboration using unsharp mask and levels correction
Seeing was bad,  diifficulties were understand the correct focusing according to the observed turbolence.
Results are good if we take into account the seeing of the night, this result highlights the good optics
of the INTES Mak Cassegrain.
[ Fabio Acquarone Genoa ITALY ]

Paolo Baldoni (Maksutov Newton 7"(178mm) . TouCam Pro Ir Blocked)

sky not clear
tnx
[Paolo Baldoni  Genova, North Italy](N44d25'37",E08d56'00")
≪パオロ・バルドニ  ローマ:イタリア北部≫

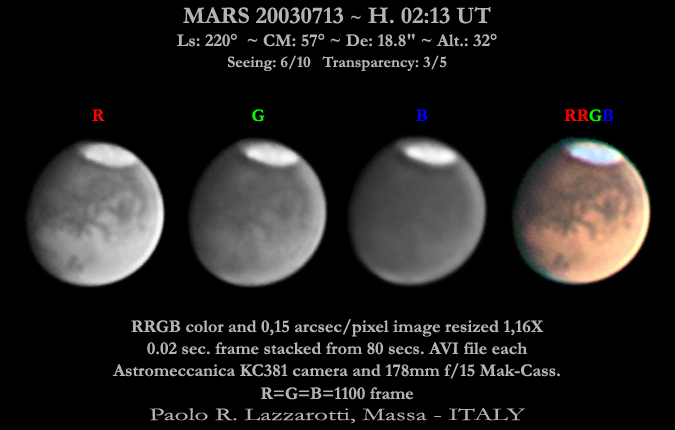

Paolo R. Lazzarotti (178mm f/15 Maksutov-Cassegrain Astromeccanica KC381 video CCD camera)

[Paolo R. Lazzarotti   Massa-City,Italy]
≪ラザロッティ  マサ:イタリア≫
