Mars Image 2003/07/28(UT)

柚木健吉,安達 誠,小嶋孝弘,畑中明利,新川勝仁,
Clay Sherrod,Carmelo Zannelli,Christophe Pellier,Daniel Crussaire,Donald C Parker

K.Yunoki,M.Adachi,T.Kojima,A.Hatanaka,M.Niikawa,Clay,C.Zannelli,Christophe,Daniel,Don


解説(安達)
日本からはダエダリア(daedaria;20W,-30)付近の観測となった。南極冠の
内部の西経140°の光点が非常によく目立っている。ニクス・オリンピカ
(Nix Olympica;130W,+20)は、正午前に観測されたが、白い雲はまだ記録でき
なかった。ペリエ(Christophe Pellier)の青画像では北極地方に白雲が記録
された。ダニエル・クルシア氏(Daniel Crussaire)からはム−ドン天文台の
1mの屈折を使った画像が送られてきた。この画像にはサバエウス(Sinus
Asabaeus;340W,-5)を横切る白雲の画像が見られる。また、彼はハドリアカム
(Mare Hardriacum;280W,-25)が淡くなったと記録しているが、シルチス
(Syrtis major;295W,+10)から南にのびる雲に覆われていることが原因と考え
られる。サバエウス付近をアメリカのパーカー氏(Donald C Parker)が撮影し
ているが、この画像には白雲は出ておらず、クルシア氏のとらえた白雲は朝霧
の濃い部分だったのではないかと思われる。ただ、望遠鏡が大きく異なるため、
まだ霧だと結論を出すのは難しい。
(reported by 9 observers)

July 28th, 2003
The observation from Japan became the neighborhood of Daedaria (20W
-30). Bright spot inside SPC is conspicuous very well. Nix Olympica
(130W,+20) was observed in front of the noon but white cloud didn't
come out yet. In the blue image of Christophe Pellier(france), white
cloud was recorded to the arctic region. The observation which used
1 m refractor of the Moodone observatory was sent from Daniel
Crussaire(France). He is recording, saying Hardriacum (280W,-25)
became light. As for this, it thinks that the phenomenon which was
covered up by the cloud which is spread in the south from Syrtis
major (295W,+10) is cause. D.C.Parker (U.S.A.) took the neighborhood
of Sinus Sabaeus (340W,-5) the photograph. White cloud wasn't seen
by this image. The white cloud which Crussaire observed seems to
have been the thick part of the morning mist. However, the telescope
too, is different mainly and two pieces of observation can not be
simply compared.
FROM Makoto ADACHI
-------------------------------------------------------------------------------------

Kenkichi.Yunoki (200mm Newtonian, ToUcam Pro)
連日の悪シーイングは少し良くなったものの、透明度が極めて悪く、拡大率をかなり下げざるを得ない。
火星は大気の吸収からか南中時ですら生ウニのような色あいであったから、発色の補正には悩まされた。
[Kenkichi Yunoki  (Sakai City  Japan)]
≪大阪府  堺市  柚木健吉≫

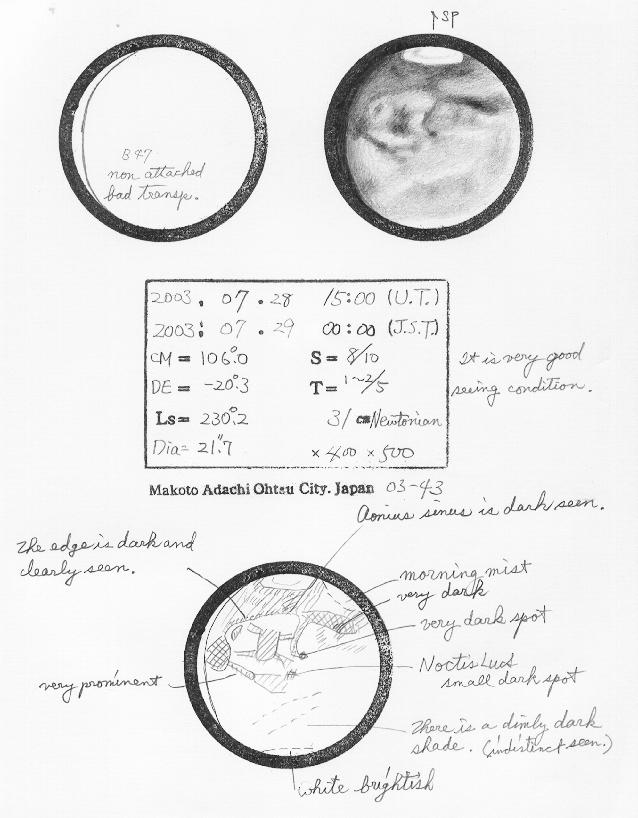

Makoto Adachi (Drawing: 310mm Newtonian)

----------------------------------------------------------------------------------------------
≪滋賀県 大津市 安達 誠≫

Takahiro Kojima (1000mm Cassegrain, ToUcam Pro)
-----撮影データ(左)----------------------------------右----------
2003/07/28  15:57:30(UT)                  2003/07/28  16:52:34(UT)
2003/07/29  00:57:30(JST)                 2003/07/29  01:52:34(JST)
CM=120d                                   CM=133d

1000mm F10 Cassgrain                      1000mm F10 Cassgrain
+ ToUcam Pro + 3 degree Prisum            + LV40 + Canon PowerShot G2
1/100sec 632farmes stacked                1/200sec(F2.5 ISO50)
Seeing:3/10                               Seeing:3/10

赤外線カットフィルターなし                プリズムなし
撮影:小嶋孝弘(かわべ天文公園)
--------------------------------------------------------------------
ToUcamで撮影を始めてほぼ火星が1周しました。初期には10時間かかっていた処理が、現在では30分ほどに。撮影と処理
のコツが掴めてきたようです。まだ画像はイマイチですが…。

最近、いつ撮影しても南東(2時半の位置)の縁に朝霧が発生しているのは、南半球の温度が高いからなのでしょうか?
それともこれが(この季節の)火星特有の現象???

薄雲が掛かっていたため、いつもよりシャッタースピードを1段下げて撮影しています。

赤い方の火星(m030729x)はデジカメで撮影したものです。模様がほとんど写りません(単画像で、生画像ですが…)。
何でだろう???  次回は銀塩で撮影してこれまでの接近と見比べてみます。
≪和歌山県日高郡川辺町かわべ天文公園  小嶋孝弘≫

Akitoshi Hatanaka (400mm Cassegrain, ToUcam Pro)
no1 2003/07/28 15:56:00(UT)
CM=202.1d
802 Video Frames Composite
exposure = 1/25sec
15 fps  IR broker Filter
sky Light Filter

no2  2003/07/28 16:08:00(UT)
CM=205.0d
1396 Video Frames Composite
exposure = 1/25sec
15 fps  IR80Filter

no3  2003/07/28 16:12:00(UT)
CM=205.8d
1205 Video Frames Composite
exposure = 1/25sec
15 fps  IR80Filter

no4 2003/07/28 16:41:00(UT)
CM=213.1d
640 Video Frames Composite
exposure = 1/33sec
15 fps  IR broker Filter
sky Light Filter

no5  2003/07/28 16:50:00(UT)
CM=215.3d
1364 Video Frames Composite
exposure = 1/25sec
15 fps  IR80Filter

40cm Cassegrain+Vari-Extender(F30)
3 degree Prisum
Philips ToUcam Pro  Rezistax
≪三重県熊野市  畑中明利≫


Masahito Niikawa (280mm SC, Hand-made PC camera (CCD:ICX424AL))
Mars on Jul.28, 2003
Ls = 230.3, De = -20.3, Dia = 21.7"

R image
R64 filter 640nm - 1000nm
15:59 (UT), CM = 120.1
Exposure 0.02sec

B image
B390 filter (350nm -460nm)
Exposure 0.2sec
15:41 (UT), CM = 115.7

Telescope:C11(D=280mmm fl=2800mm)
Camera:Hand-made PC camera (CCD:ICX424AL)
Effective Fno. = 26 (XP24mm Eyepiece projection)
Seeing = 6/10, Transparency = 2/6
Observer:Masahito Niikawa Sakai Osaka JAPAN
Processed with CRoPP, Registax and Photoshop
≪大阪府  堺市  新川勝仁≫


Dr. P. Clay Sherrod (410mm SC : ToUcam PRO)



Mars on the morning of July 28 with unsteady skies and intermittent clouds.
There are very small areas which appear perhaps brightened by thin yellow
clouds:  Edom, Decolionis Regio (south of Sinus Sabaeus), Margaritifer
Sinus, and within Eos.  A northern polar region blue hood is visible in the
later image and was clearly visible (not artifact) visually and on raw
images.

Images were obtained via 1600 (each) 1/33nd sec. images, Toucam Pro with
double IR block, 0.41m SCT at f/35.


Last image from July 28 under increasingly steady air; considerable low
contrast and fine detail emerging in the Mare Erythraeum area and a very
bright (more so than normal it seems) Margaritifer Sinus.
[Dr. P. Clay Sherrod  Arkansas  State U.S.A]
≪クレイ  シェラード  アメリカ  アーカンサス≫

Carmelo Zannelli ( Newton (Vixen) D=130mm F=720mm: webcam Philips ToUcam pro)

2003/07/28 00:34(UT)
C.M.: 254,79ー; Seeing: 5/10; Transp.: 5/10;
Telescope: Schmidt-Newton Meade D= 254 mm. F= 1016 mm. f/4;
Webcam Philips Toucam Pro + filtro IR-Cut - 1/25 s. exposure;
Eyepiece projection: Meade SP 6,4 mm - about f/47 (about 12 meters);
910 frames of 1800 stacked with Registax;
Site: Palermo - near city center;
Acquisition: K3CCDTools;
Elaboration: Registax; Photoshop
Autor: Carmelo zannelli - Palermo, ITALY.
[Carmelo Zannelli ,  Sicily-Italy]

Christophe Pellier (180mm Newtonian webcam Toucam Pro)

Hello everyone ; I'm sending my latest images with a bit of delay due to my
few days out of town. On july 23 the seeing was fairly good. On july 28
after days of rain, the transparency was excellent but the seeing very poor.
Moreover, a quick return of the rain that night didn't allowed me to take
more than two images.
On these images you can see my first results with an IR-pass filter
[Christophe Pellier  Bruz City , France]
≪クリストフ  ペリエ  フランス≫

Daniel Crussaire (refractor fluorite 102mm Philips Vesta Pro )

Dear friends
Another Mars, first run with IR-cut filter, taken between two
clouds. Hadriacum M. very faint. I'll try to do better with the 1 meter
telescope at Meudon and VX2000 Sony tri-CCD camescope as soon as
possible.
Best regards
[Daniel Crussaire  Paris-Meudon, France]
≪ダニエル クルシア フランス≫

Donald C Parker(10-inch Mewlon Dall-Kirkham:ToUCam)

Hi All
Here are some .JPG images taken between seafood and pina coladas on the Keys.
I used a 10-inch Mewlon Dall-Kirkham, Paramount ME, and a ToUCam, eyepiece projection.
The differences in color occurred when I started using an IR rejection filter.
This provided somewhat better, more realistic color balance --
Mars looks more yellow than red through the eyepiece.
I also used an Adirondack PADC-1 variable prism to reduce prismatic dispersion.
The thing actually works!
[ Donald C Parker Coral Gables, Florida U.S.A]
