Mars Image 2003/07/31(UT)

福井英人,荒川 毅,熊森照明,林敏夫,沼澤茂美,瀧本郁夫,柚木健吉,阿久津弘明,大河巨和,伊賀祐一,前田和儀,安達 誠,草階英夫,永長英夫,野々口猛浩,
Ed Grafton,Clay Sherrod,Carmelo Zannelli,David M Moore,Dr.Timothy J.Parker,Donald C Parker,Frank J Melillo,Guilherme Grassmann,Daniel Crussaire

H.Fukui,T.Arakawa,T.Kumamori,T.Hayashi,S.Numazawa,I.Takimoto,K.Yunoki,H.Akutsu,H.Ohkawa,Y.Iga,K.Maeda,M.Adachi,H.Kusakai,H.Einaga,T.Nonoguchi,E.Grafton,Clay,C.Zannelli,D.Moore,Tim Parker,Don,Frank,G.Grassmann,Daniel


CM=(2 3 6 7 15 33 67 69 72 77 80 81 83 84 87 88 89 92 93 97 99 101 103 105 106 109 114 115 116 121 125 132 223 232 254 308 344 356)
解説(安達)
日本からもクリセ(Chryse;35W,+10)に黄雲が観測できるようになってきま した。福井氏が画像の東の端にその様子を記録しました。肉眼でも安達が東 の端にその様子を記録しています。クレイ・シェロッド氏(P. Clay Sherrod) が明るく見やすい画像でとらえています。しかし、画像やスケッチから判断 すると、クリセ(Chrise;35W,+10)からクサンテ(Xanthe;45W,+28)にかけて ベール状にも拡がっている様子がとらえられています。北極地方にはかなり 白っぽい雲が見られるようになっています。(reported by 23 observers) July 31st, 2003 Japanese observer became observing the dust storm in Chryse (35W,+10). Hukui(Japan) recorded this phenomenon on eastern edge of the Martian disk. Adachi(Japan) observed this dust storm by naked eye,too. P.Clay Sherrod (U.S.A.) recorded brightly and clearly Chryse (35W,+10) on his image. And, there are covered on Chryse and Xanthe (45W,+28) region by dust veil. It was seen by some images and drawings. North pole region was covered by whitish cloud. FROM Makoto ADACHI -------------------------------------------------------------------------------------

Hideto Fukui (250mm Dall Kirkham, Philips ToUcam Pro)
20秒を超えた火星がまたたいて見えました。案の定、シーイングは最悪でした。
半ばやけくそで全フレームスタックしました。
左縁に白い筋が写っていますが砂嵐でしょうか?
[Hideto.Fukui  (Kyoto City  Japan)]
≪京都府  京都市  福井英人≫

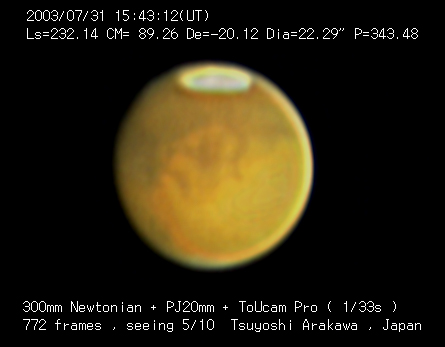

Tsuyoshi Arakawa (300mm Newton, ToUcam Pro)
seeing  5/10 ,  trans 3/5
25fps × 60sec
連続して、4枚撮影してみましたが、どんどん気流状態が悪化し、
最初の1枚だけがなんとか使える程度でした。
≪奈良県奈良市  荒川 毅≫

Teruaki Kumamori (200mm Dall-kirkham , PHILIPS ToUcam Pro)
曇る直前にシーイングが良くなったのですが、そのまま曇ってしまいました。
≪大阪府  堺市 熊森照明≫

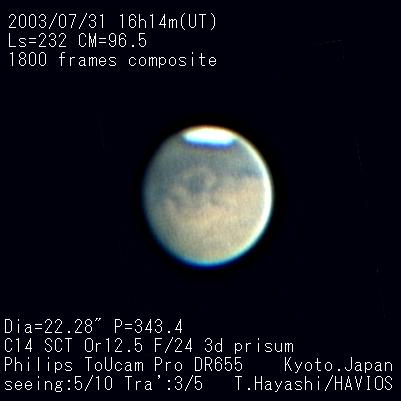

林敏夫 Toshio Hayashi (355mm Schumidt-Cassegrain, Digital still camera Minolta DimageEX1500)
2003/07/31 16h14m(UT)
Dia 22.28"  C.M 96.5°Ls 232° P 343.4°
355mm Schumidt-Cassegrain, Or12.5mm F=33
Philips ToUcam Pro 1800frames composite
1/33sec   Seeing:5/10  Transp.:3/5
DR655 IRcut 3d purisum
・今シーズン初の火星報告です。
・梅雨が明けて、本格的な夏シーズンでシーングは
良かったものの雲が出てシャッター速度が難しいかった。
≪京都府京都市  林敏夫≫

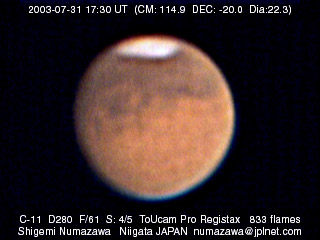

Sigemi Numazawa (280mm SC)

[Sigemi Numazawa : Niigata-City Niigata-Prefecture Japan]
≪新潟県 新潟市 沼澤茂美≫


Ikuo Takimoto (310mm Newtonian : ToUcam & Olympus C-2040 ZOOM )
2003/07/31 15:58:30(UT)
C.M.=92.87
P=343.48
LS=232.14 Dia.=22.29"

310mm Newtonian, PL15mm(f/6.5)
ToUcam Pro, 1/50 sec
602 frames composite
Seeing:5/10 Transp.:4/5
--------------------------------
コメント:太陽湖が異様に見える。
初めてのToUcamPro
で撮影


2003/07/31 16:38:30(UT)
C.M.=102.74
P=343.48
LS=232.16 Dia.=22.29"
310mm Newtonian, LV6mm(f/6.5)
Olympus C-2040 ZOOM, 1/30 sec
13 frames composite
Seeing:4/10 Transp.:4/5
--------------------------------------------------
コメント:
・太陽湖の目玉模様が見えます。
・この中央面経度では、南極冠の亀裂が確認できません。
[Ayauta-gun Kagawa-Prefecture Japan]
≪香川県  綾歌郡  瀧本郁夫≫

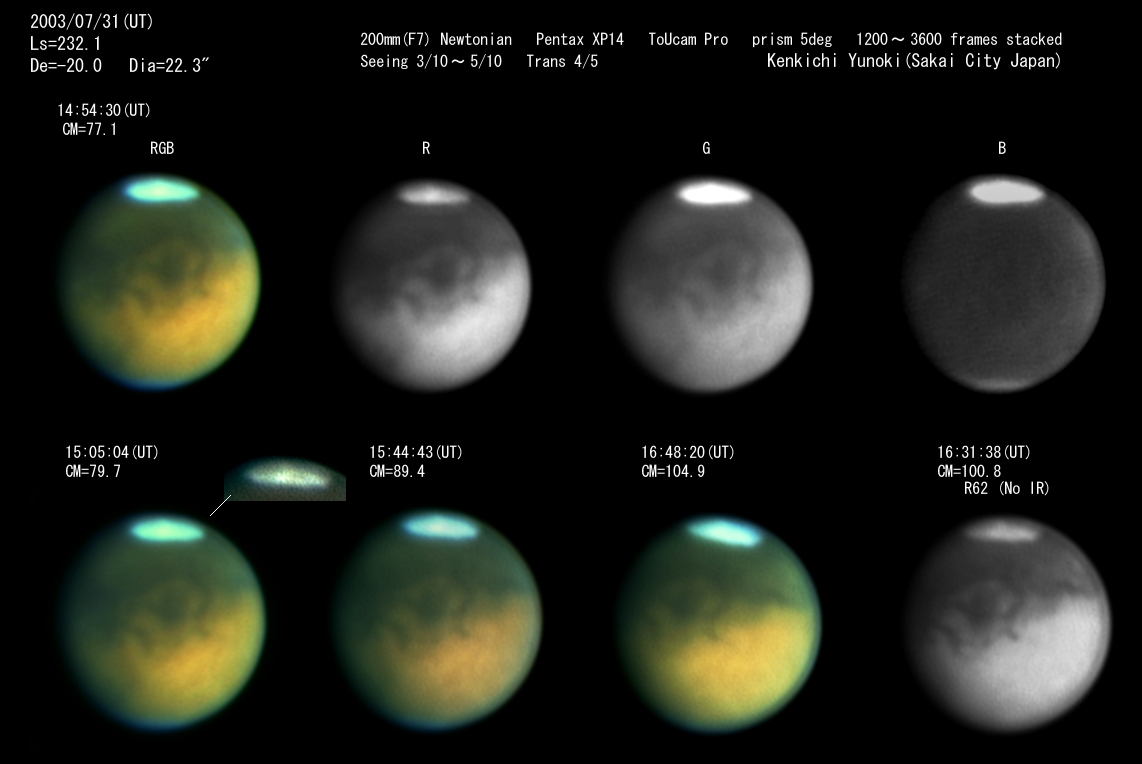

Kenkichi.Yunoki (200mm Newtonian, ToUcam Pro)
観測当初は良くないシーイングであったが、暫くするとこの数日に比べて良くなってきた。
R62(NO IR)とB370にIRカットを装着したものでも撮像した。B370はB390より短波長よりで450nmより長波長はカットできるはずである。
ところが赤外もれがあるためIRカットも装着したのだが、IRカットがB370の赤外もれを完全にはブロックできないようだ。
加えて、大変暗く20pでは集光力不足で使い物にはならななかった。
[Kenkichi Yunoki  (Sakai City  Japan)]
≪大阪府  堺市  柚木健吉≫

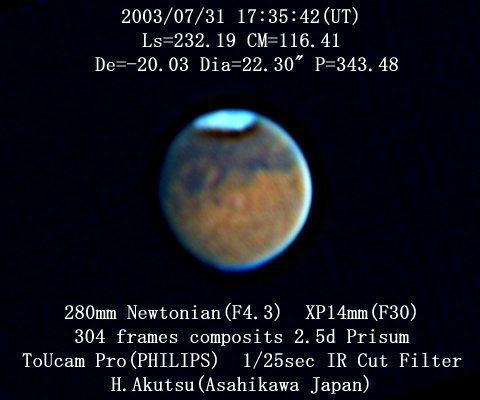

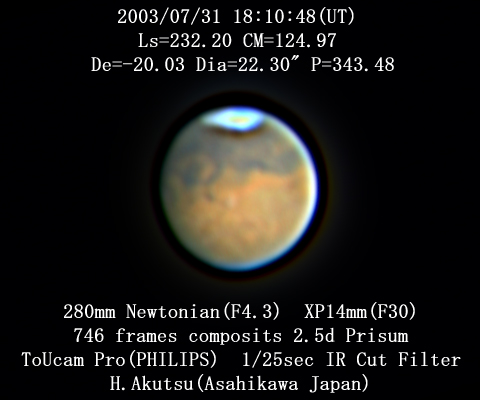

Hiroaki Akutsu(280mm Newtonian)





今回やっとプリズムを使ってみました。かなり良い結果が出ました。
また、接眼部を電動フォーカサーにしました。ピント合わせも非常に
楽になりました。
≪北海道旭川市  阿久津弘明≫

Hirokazu Ohkawa (300mmNewtonian, SONY VX2000)
[Takahashi-City Okayama-Prefecture Japan]
≪岡山県高梁市 大河巨和≫

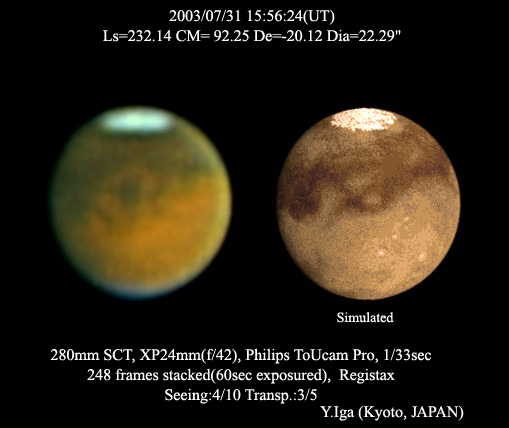

Yuichi Iga (280mm SC, Philips ToUcam Pro)
2003/07/31 15:56:24(UT)
Ls=232.14 CM= 92.25
De=-20.12 Dia=22.29"

280mm SCT, XP24mm(f/42), Philips ToUcam Pro, 1/33sec
248frames stacked(60sec exposured), Registax
Seeing:4/10 Transp.:3/5

コメント:
・思ったほどシーイングは良くない。
・ソリス付近の大きく変化した模様は面白い。
・東端のオーロラ付近は黄色で、ダストが見えているようだ。

≪京都市山科区  伊賀 祐一≫

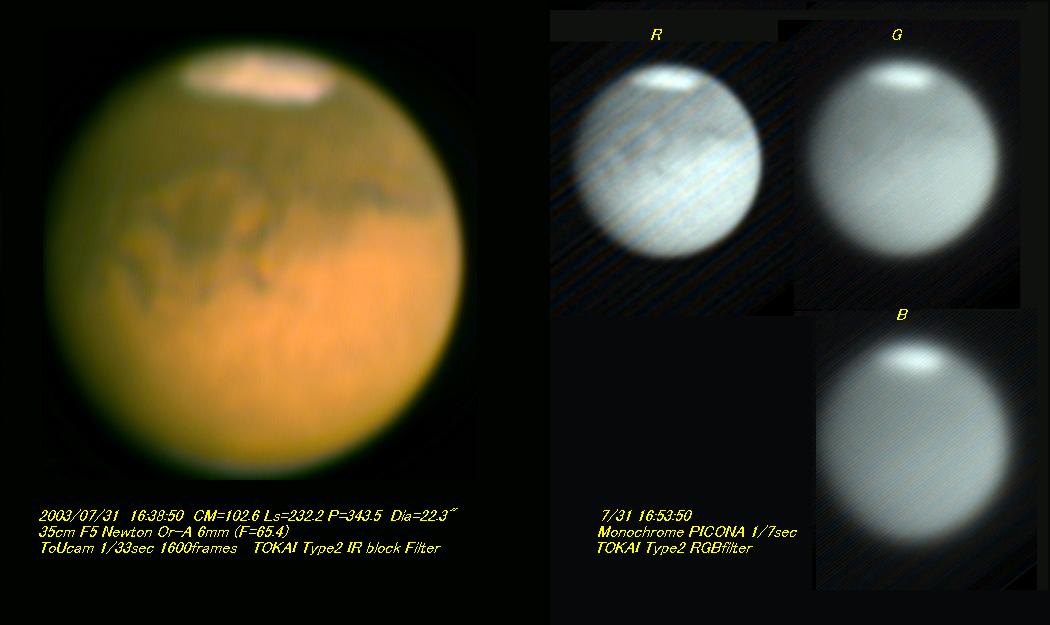

Kazuyoshi Maeda (350mm Newton, NEC PICONA)
今日から合成Fを大きくして撮像しました。亀岡にしてはシーイングがよく、雲の切れ目を
待って狙いました。
≪京都府 亀岡市 前田和儀≫

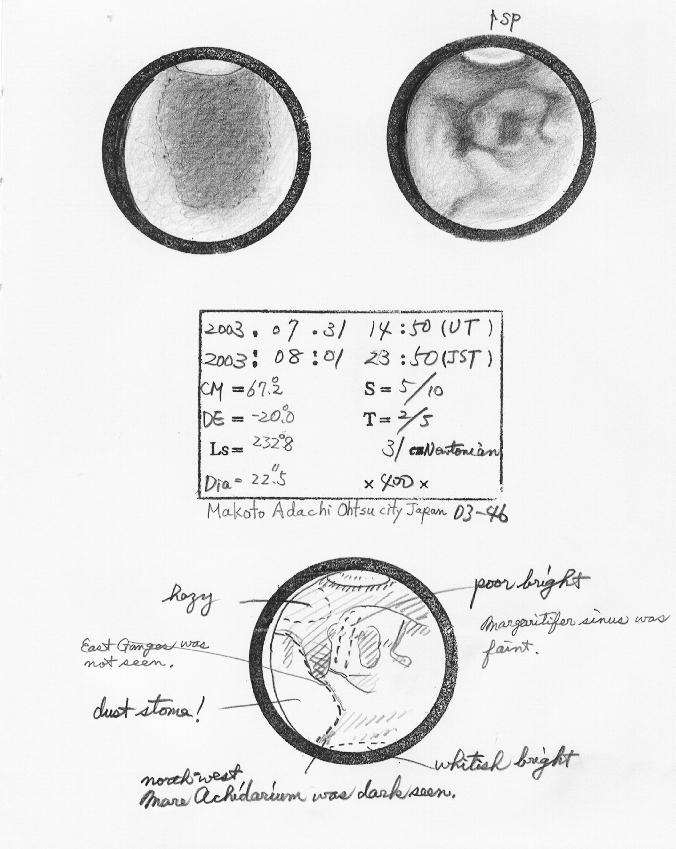

Makoto Adachi (Drawing: 310mm Newtonian)

----------------------------------------------------------------------------------------------
≪滋賀県 大津市 安達 誠≫

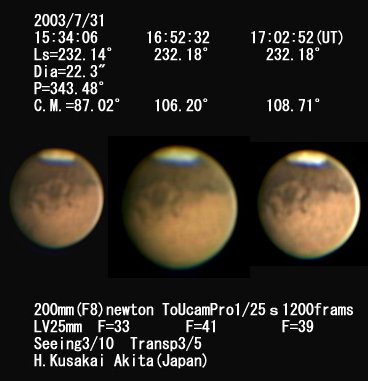

hideo Kusakai(200mm newton Philips ToUcam Pro)
赤外線カットフィルターはつけていません
[H.Kusakai Akita-city Akita-Pref  Japan]
≪秋田県秋田市  草階英夫≫

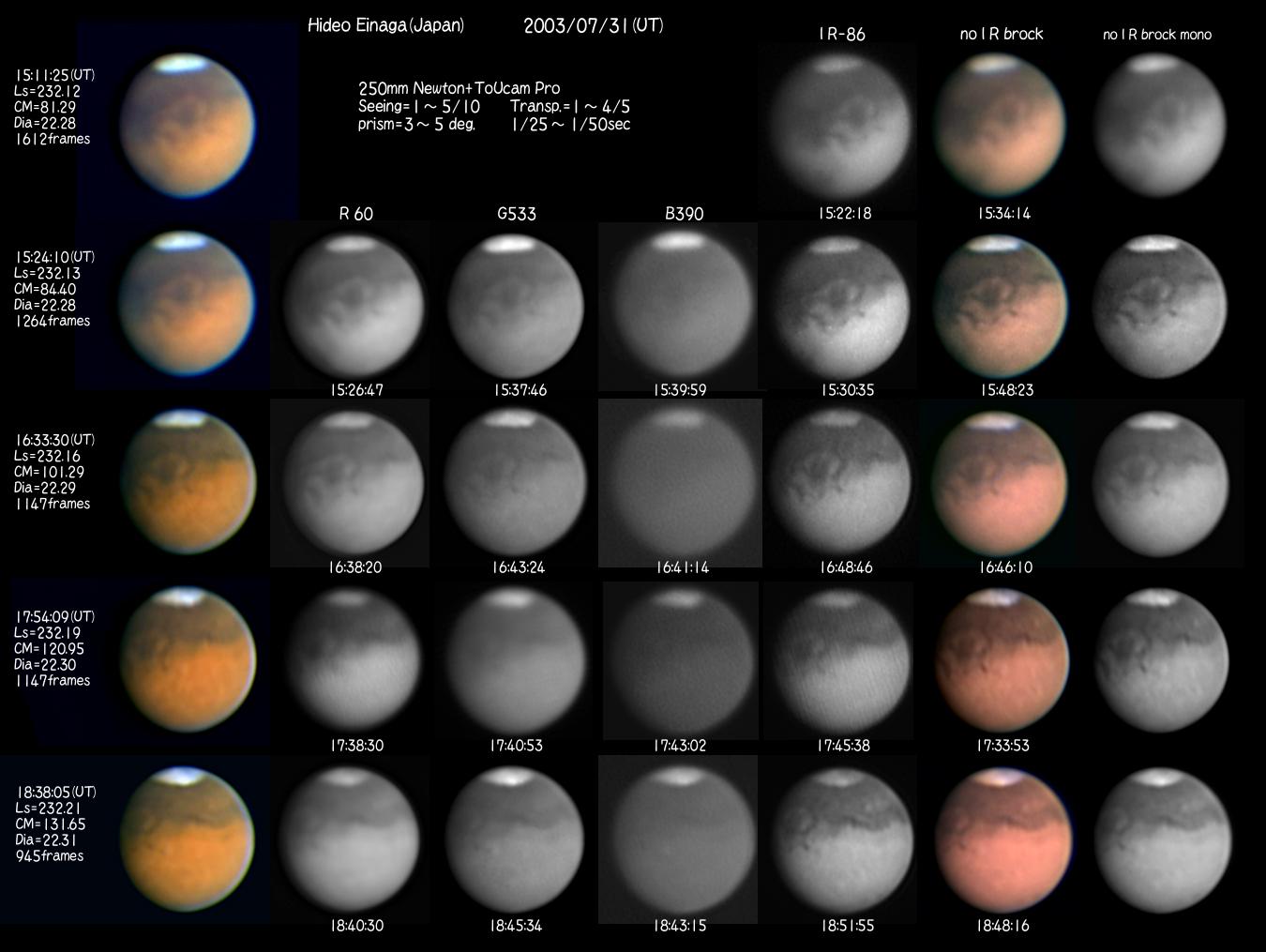

Hideo Einaga (250mm Newton, Toucam Pro Webcam)
黄雲発生ということで、22時過ぎから撮影に入りましたが、
低空と悪シーイングで、23時過ぎまでは観測といえる画像は
得られませんでした。
初めの方の画像には、何とか黄雲らしき形跡が認められます。
また、この日は透明度も良く、発光現象に出くわさないかと04
時過ぎまで粘りましたが、観測時間中にはそれらしきことは起
こっていないようです。
ここのところ、どうしたら明快な画像が得られるかいろいろと試
しています。皆さんの参考にして下さい。
HIDEO EINAGA ≪兵庫県 加西 永長英夫≫

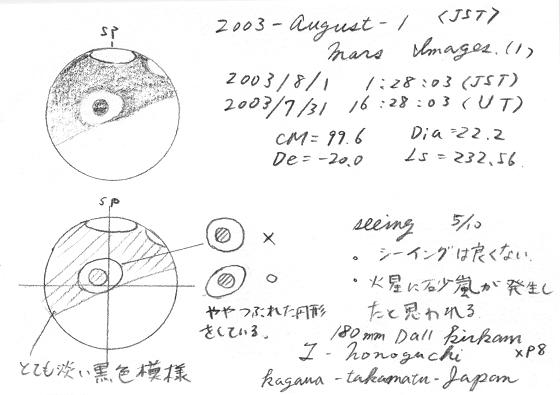

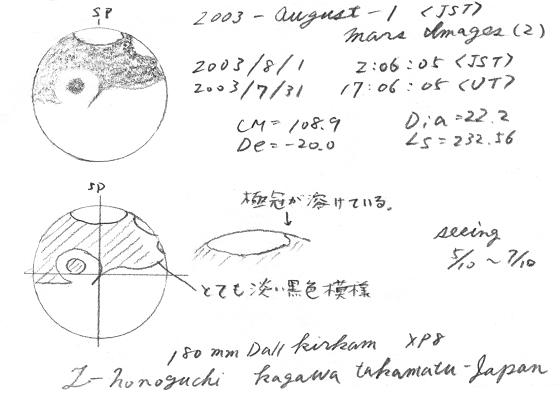

Takehiro Nonoguchi (Drawing: 180mm Dall kirkam)

-----------------------------------------------------------------------------

-----------------------------------------------------------------------------
≪香川県高松市  野々口猛浩≫

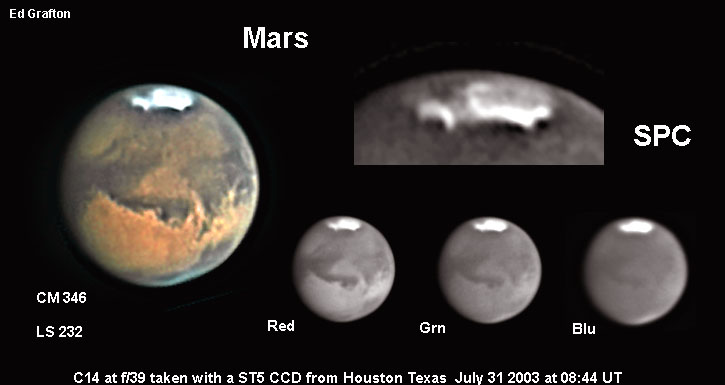

Ed Grafton (14 inch f/11 Celestron SCT, ST6 CCD medium resolution mode)
Hi Mars Observers
Here is an image from July 31st 2003. The dust area does not look as
concentrated as yesterday although perhaps broader. Another concetrated core
looks to be present around Aurorae Sinus. The sky transparancy was very good
8/10 and seeing good 7/10.
C14 @ f/39, ST5 CCD

RED  + IR rejection, .25  seconds, Edmund filter
GREEN + IR rejection, .5  seconds, Edmund filter
BLUE  + IR rejection, .8  second, Edmund filter
Luminance, IR + Red , 600-1000nm  .07  seconds,  Edmunds filter
[Ed Grafton, Houston Texas U.S.A.]

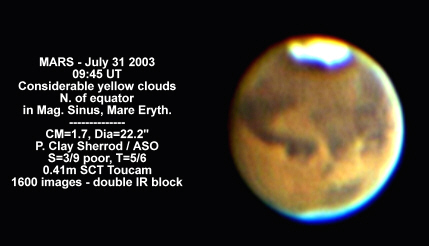

Dr. P. Clay Sherrod (410mm SC : ToUcam PRO)

Mars imaged through forest fire smoke and unsteady skies, but with some nice
detail of cloud development in and around Margaritifer Sinus and Mare
Erythraeum.
[Dr. P. Clay Sherrod  Arkansas  State U.S.A]
≪クレイ  シェラード  アメリカ  アーカンサス≫

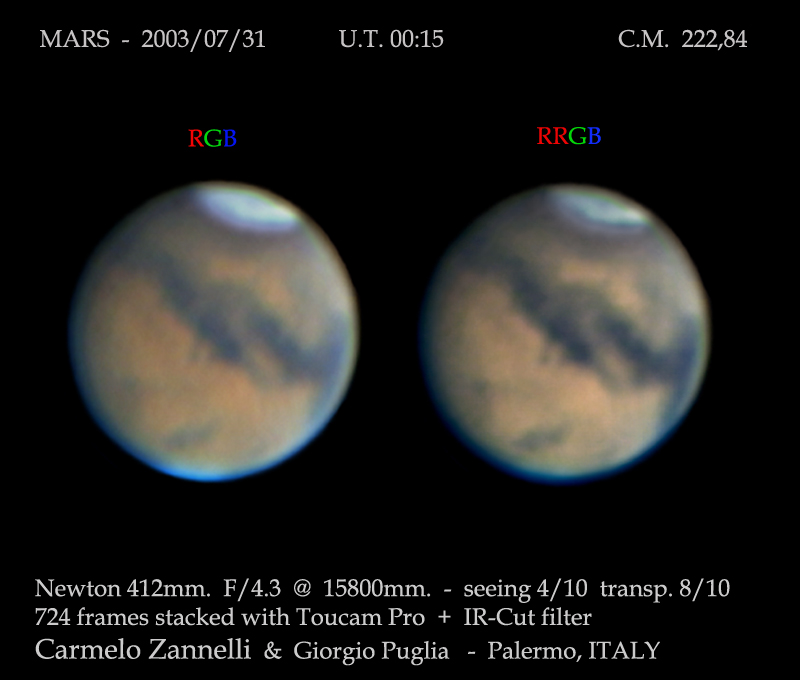

Carmelo Zannelli ( Newton D=412mm : ToUcam pro)

2003/07/31 00:15(UT)
C.M.: 222,84ー;  Seeing: 4/10; Transp.: 8/10;
Telescope: Newton homebuild D= 412 mm. F= 1790 mm. f/4,3;
Webcam Philips Toucam Pro + filtro IR-Cut - 1/25 s. exposure;
Eyepiece projection: Meade SP 12,4 mm - about F/38 (about 16 meters);
724 frames of 1800 stacked with Registax;
Site: Ventimiglia di Sicilia - (Palermo) Sicily;
Acquisition: K3CCDTools;
Elaboration: Registax 1.1; Astroart 3.0; Photoshop 7.0
[Carmelo Zannelli ,  Sicily-Italy]

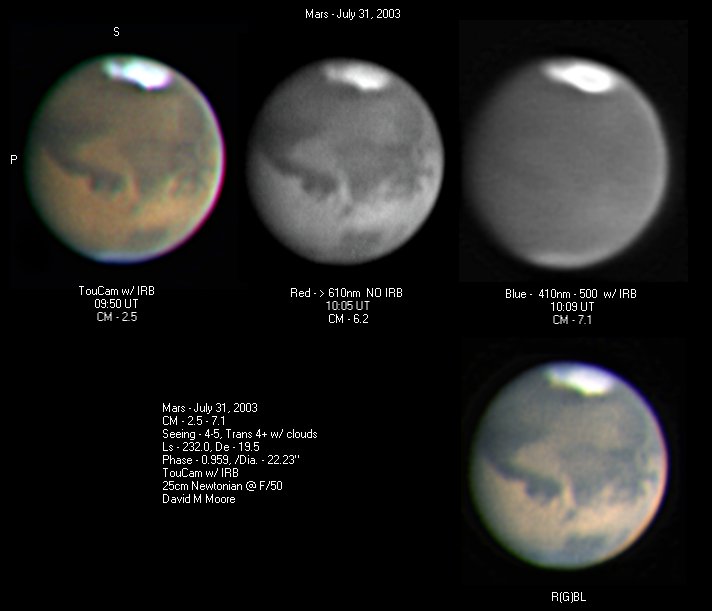

David M. Moore(25cm Newtonian, Philips ToUcam)



A few breaks in the clouds allowed these rather poor images to be taken.
Seeing was very bumpy form evening TStorms to the East.
It appears there was something happening in Mare Acidalium on Tuesday morning
and now dust is spreading South.
Comparing images from Tuesday morning of the 29th to this mornings, shows
definite obscurations of Chryse/Xante region and areas South of it.
Also areas around Oxia Palus, Margaritifer Sinus appear changed.
I include a comparison image for your study.
Hopefully, more in the morning.
Thanks
[ David M Moore Phoenix, Arizona U.S.A]

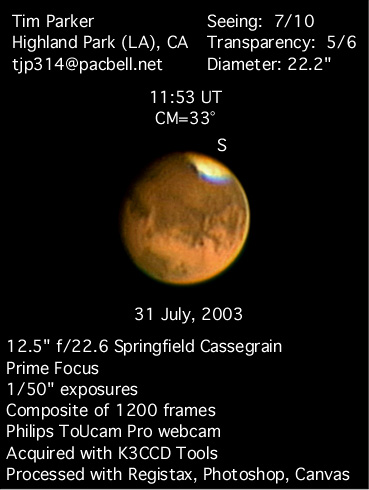

Dr.Timothy J.Parker(12.5" 310mmSC ToUcam PRO)

All:
First time posting one of my recent images!  Seeing was pretty good for
Los Angeles, due to that persistent High Pressure weather pattern over
us.  It's like Florida here, only more humid!
Planetary regards to all
[ Dr.Timothy J.Parker : Pasadena, California U.S.A]

Donald C Parker(16-in (41cm) Newtonian)
Hi All
Here are some Mars images from 31 July. Dust in Chryse remains.

D.C. Parker, Coral Gables, FL. 16-in (41cm) Newtonian
ST9XE CCD Camera  Eyepiece Projection @ f/55.4
Integration Times:
RED (RG610 Red Filter, 610-1100nm: NO IR Rejection)    0.13s 1  image
GREEN (CFW8C, 531nm central; BWHM 86nm)   0.29s  8-10 images
BLUE (CFW8C, 450nm central, BWHM 116nm)   1.00s  7-9 images
Images bias,flat and dark corrected.
Seeing fair (5-7 Pickering).  Transparency  4-4.5 m. No wind. Light dew. Altitude =49-43 degrees.
Dust clouds in Chryse remain, clouds now in Eos and Margaritifer Sinus. Possible dust in Aram.
Dust bright in green as well as red light. Dust clouds formed since 30 July also bright in blue.
Novus Mons separating from SPC. Argenteus Mons remains brilliant. Violet Clearing = 1+
[ Donald C Parker Coral Gables, Florida U.S.A]

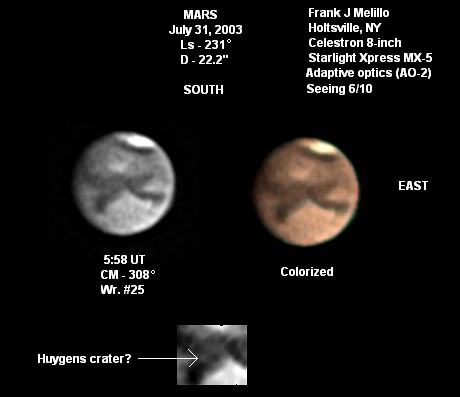

Frank J Melillo(Celestron 203mm Schmidt Starlight Xpress MX-5)
Dear all -
Mars was imaged July 31st at 5:58 UT. I was struggling with the clouds and Mars was shinning only
15 seconds through a small opening hole in the clouds when I took this image.

Luckily, I had only one chance to image Mars and it was just in focus or close to focus.
Mars is looking normal at this view while the dust clouds in Chryse area is just beyond the morning limb.
Also, it is possible that I may have captured Huygens crater which I cropped it and it is pointing by an arrow.
[Frank J Melillo  Holtsville NY U.S.A]

Guilherme Grassmann (8" F6 Newtonian Philips Vesta Pro)

Hello,attached my last image.Sory for delay but I hat some computer problem and cannot process my images.
Seiing was 6/10 and transparence 7/10.    Image with 3X Barlow and IR Filter.
Best regards
[Guilherme Grassmann, Americana-San Paulo, Brasil]

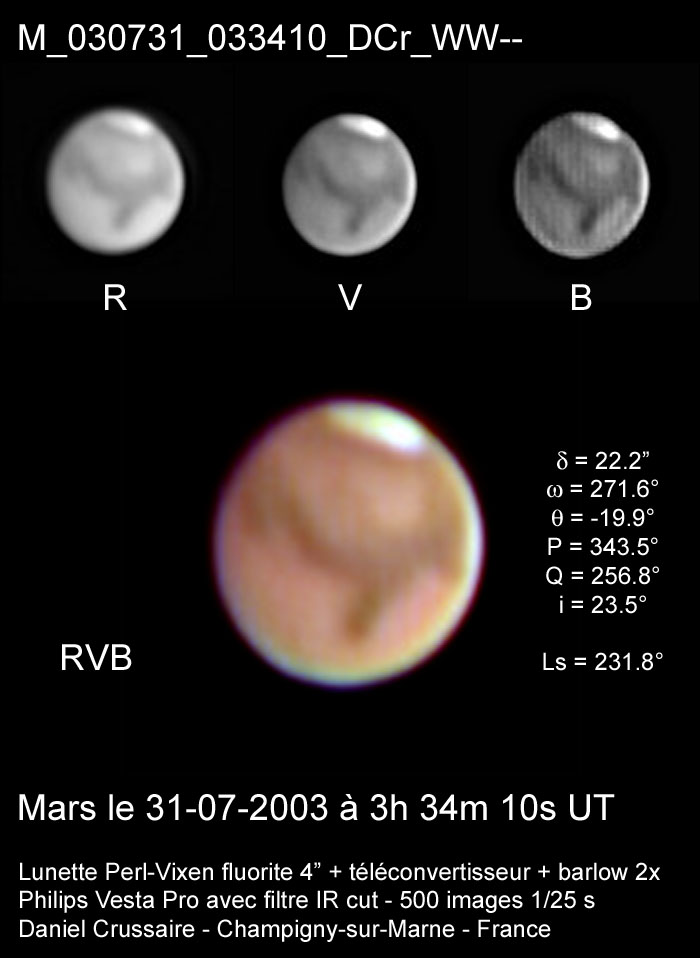

Daniel Crussaire (refractor fluorite 102mm Philips Vesta Pro )

[Daniel Crussaire  Paris-Meudon, France]
