火星 月惑星研究会 関西支部 (最新)


ALPO-Japan Latest
Mars Image 2003/08/01(UT)

荒川 毅,西谷輝昭,中井健二,畑中明利,前田和儀,薄出敏彦,永長英夫,瀧本郁夫,柚木健吉,三品利郎,奥田耕司,菅野清一,
Ed Grafton,Clay Sherrod,Christophe Pellier,Mario Frassati,Daniel Crussaire

T.Arakawa,T.Nishitani,K.Nakai,A.Hatanaka,K.Maeda,T.Usude,H.Einaga,I.Takimoto,K.Yunoki,T.Mishina,K.Okuda,S.Kanno,E.Grafton,Clay,Christophe,M.Frassati,Daniel


CM=(50 59 66 70 72 73 77 80 82 85 90 91 93 95 97 107 116 206 226 228 234 236 244 267 270 331 341 353)
We succeeded in a one round cover at an interval within 90 degrees.
1回転達成
解説(安達)
黄雲は暗色模様の中に入り、拡散傾向になりました。おそらく砂の供給がな くなっためだろうと考えられます。黄雲の全体は永長氏や柚木氏がとらえてい ます。グラフトン氏(Ed grafton)の画像からは拡散した黄雲が クリセ(Chryse;35W,+10)にも拡がっている様子をとらえています。またグラ フトン氏はミッチェル山が爪のような形になっている様子を記録された。 (reported by 16 observers) August 1st, 2003 Dust storm was stored into the dark pattern. Then, it showed a spreading tendency. It will be because the supply of sand decreased. Einaga(Japan) and Yunoki(Japan) recorded the state of whole dust storm. Spread dust storm is recording the state which covers Chryse (35W,+10) widely from Grafton(U.S.A.). Also, Grafton is recording Nobs Mons like the pointed nail. FROM Makoto ADACHI -------------------------------------------------------------------------------------

Tsuyoshi Arakawa (300mm Newton, ToUcam Pro)
seeing 5/10  ,  trans 1/5   1465 frames comp.
1/25 sec ,  15 fps X 100 sec
processed Registax ver.2



seeing 4/10 ,  trans 1/5   1145 frames comp.
1/25 sec ,  15 fps X 100 sec
processed Registax ver.2

全天を薄く雲が覆った状態で、露出不足のため、
ToUcam の色調整に苦労しました。
露出不足のため、背景にかなりのカブリが出た
ため、PhotoShop で背景を黒にしました。
そのため、輪郭が少し不自然になっています。



≪奈良県奈良市  荒川 毅≫


Teruaki Nishitani (210mm Newton, Digital still camera NEC PICONA)
2003/08/01 16:46:08(UT)
Ls=232.79 CM= 95.27
De=-19.98 Dia=22.47" P=343.50
21cm F6 Newton(ASKO) Power Mate 5X
NEC Picona 1/7sec. 25 frames composite

甲賀の忍者で〜す

生きてまっせ (^_^)
久々の観測です。PICONAです !

≪滋賀県甲賀郡  西谷輝昭≫


Kenji Nakai( LX200-25(254mmF10SC) , ToUcam Pro)
2003/08/01 25:23:04(JST) 16:23:04(UT)
LS:232.8 Dia:22.47 De:-20.08 P:343.50 CM:89.6
LX200GPS-25(254mm Schmidt Cassegrain f/10)
LE5mm+IRcut filter+ToUcam Pro
exp.:1/100sec. 640X480 832farmes stacked
seeing:5/10 transp.:1/5
comment:眼視で25cm,500Xでは-60度以北が全体に
黄色く見えるが、200Xでは特に異常
は認められない。


2003/08/01 25:27:52(JST) 16:27:52(UT)
LS:232.8 Dia:22.47 De:-20.08 P:343.50 CM:90.8
LX200GPS-25(254mm Schmidt Cassegrain f/10)
LE5mm+IRcut filter+ToUcam Pro
exp.:1/100sec. 320X240 889frames stacked
seeing:5/10 transp.:1/5
comment:320X240の方が明瞭なのでこれも添付します。
≪広島市  中井健二≫


Akitoshi Hatanaka (400mm Cassegrain, ToUcam Pro)
no1 2003/08/01  16:06:00(UT)
CM=85.2d
830 Video Frames Composite
exposure = 1/25sec
15 fps sbig IR broker filter
kenko skylight Filter

no2 IR Image(800-1000nm)
2003/08/01  15:56:00(UT)
CM=82.8d
1381 Video Frames Composite
exposure = 1/25sec
FUJI IR80 Filter

no3 BLUE Image(400-520nm)
2003/08/01  16:03:00(UT)
CM=84.5d
1818 Video Frames Composite
exposure = 1/25sec
15 fps sbig IR broker filter
kenko skylight Filter
SBIG B Filter

40cm Cassegrain+Vari-Extender(F30)
3 degree Prisum
Philips ToUcam Pro  Rezistax
seeing 6/10  trans 3/10
≪三重県熊野市  畑中明利≫

Kazuyoshi Maeda (350mm Newton, Philips ToUcam Pro)
うす雲のなかの撮像です。シーイングも悪く解像度が低い。

≪京都府 亀岡市 前田和儀≫

T.Usude (250mm Newton, Philips ToUcam Pro )
2003/08/01 17h36m(UT)
CM= 106.8    Dia= 22.5
Seeing 5-6/10 Trans. 2/5
250mm Newtonian  Or9mm  ToUcam Pro(1/25sec)
1799 frames stacked Processed: Registax , Photoshop
Toshihiko Usude (OSAKA,JAPAN)

ToUcam 内部のLED光漏れを治したつもりが、よけいにひどく
なりました。  今日、LEDの上から黒ペンキを1滴落とします。
ソリスの「カエル」が面白い。
Toshihiko-Usude
≪大阪府  枚方市  薄出敏彦≫

Hideo Einaga (250mm Newton, Toucam Pro Webcam)
低空でフィルターワークがままなりません。
no IR block や IR-86  では地形模様が良く撮れますが、
黄雲は当たり前ですが無理なようです。
B390は低空でシーイング、透明度とも悪く、使えませんでした。
コンディションが良くなってきた頃に曇ってしまいました。

07/31(UT)の画像にも写っているようです。
5時間以上の観測で撮影したファイルがべらぼうに多く、ようやく
第一次の処理が終わったところです。なるべく早く報告したいと
思います。
HIDEO EINAGA ≪兵庫県 加西 永長英夫≫


Ikuo Takimoto (310mm Newtonian : ToUcam Pro )
2003/08/01 15:32:30(UT)
C.M.=77.46
P=343.50
LS=232.77 Dia.=22.46"

310mm Newtonian, PL15mm(f/6.5)
ToUcam Pro, 1/50 sec
149 frames composite
Seeing:3/10 Transp.:4/5
-----------------------------------------------------------
コメント:砂嵐が発生したようで、まだ見ていません。
[Ayauta-gun Kagawa-Prefecture Japan]
≪香川県  綾歌郡  瀧本郁夫≫


Kenkichi.Yunoki (200mm Newtonian, ToUcam Pro)
[Kenkichi Yunoki  (Sakai City  Japan)]
≪大阪府  堺市  柚木健吉≫

Toshirou.Mishina (200mm Newtonian, ToUcam Pro)
撮影を始めた直後から雲に隠れてしまい
ました。そのため、露出不足のワンショット
だけです。
200mm Newtonian, Digital still camera Nikon CoolPix990
≪神奈川県  横浜市  三品利郎≫


奥田耕司 Koji Okuda (250mm Newton, BITRAN BT-01 Cooled CCD Camera)
:透明度は悪いがシーイングは良い
:長い梅雨があがり、約二ヶ月ぶりの大きな火星におどろいた
:南極冠がくっきりと見える
≪滋賀県信楽町 奥田耕司≫

SEiichi Kanno(250mm Newtonian, ToUcam Pro)

山形もやっと梅雨が明けました。今期初めての火星の撮像をおこないましたので報告致します。
極冠の白とそのまわりを取り巻く黒のコントラストが目を引き、またソリス湖とそのまわりの
地形が確認できました。
≪山形県上山市 菅野清一≫
Ed Grafton (14 inch f/11 Celestron SCT, ST6 CCD medium resolution mode)
Hi Mars Observers
Here is an image from August 1st 2003 at 08:58 UT. The dust area does not
look to have changed much during the last day at least from this
perspective. There is a somewhat low contrast ( dust cloud? )feature that
has showm up in Mare Erythraeum but does not appear very concentrated. The
sky transparancy was very good 8/10 and seeing good 7/10.
C14 @ f/39, ST5 CCD

RED  + IR rejection, .25  seconds, Edmund filter
GREEN + IR rejection, .5  seconds, Edmund filter
BLUE  + IR rejection, .8  second, Edmund filter
Luminance, IR + Red , 600-1000nm  .07  seconds,  Edmunds filter
[Ed Grafton, Houston Texas U.S.A.]

Dr. P. Clay Sherrod (410mm SC : ToUcam PRO)

Again very poor seeing plagues us as does heavy smoke from nearby (!) forest
fires.  Mars this morning (August 1) from ASO Petit Jean Mt.
For those not having an image attached, these are posted each morning at ASO.
[Dr. P. Clay Sherrod  Arkansas  State U.S.A]

Christophe Pellier (180mm Newtonian webcam Toucam Pro)

Hi everyone : last night the conditions were very good, and the planet is
now so big ! This is truly espectacular to watch at the eyepiece.
Masatsugu : I think that this time the images clearly show the evening and
morning mist (first two RGB images) : this must be apparently because I have
changed a bit the exposure of the G and B images (increased at 1/33 and 1/25
instead of 1/50 and 1/33). The third RGB, made with the "old" settings
doesn't really show the mist. It seems that there is also a vast but subtle
white haze in the northern hemisphere. This is supported by the images taken
with the color Toucam; one of those two has been taken through a pale blue
filter to enhance the white hazes and mists (just an experience). I have
managed to see the mists in visual thanks to that filter. Note at last that
in the second RGB image the preceding part of Mare Cimmerium looks quite
obscured at the martian evening.
Novus month is seen as a brillant white point (also seen in visual).
It's also obvious that the IR images have a lower resolution than the R
ones.
To the Mars Observers group : I have trouble to access to my homepage so I
can't give you a link (the images will be visible on some others web pages
soon), but I have uploaded it in the "new images" folder (named
2003-08-01-CPI)
Best wishes
[Christophe Pellier  Bruz City , France]

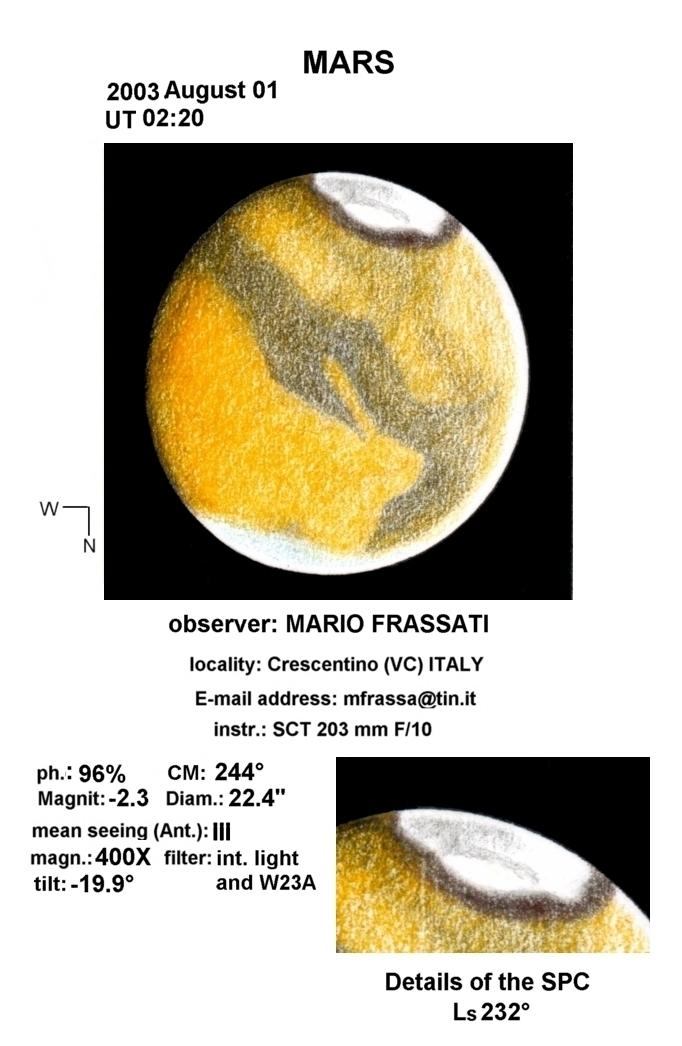

Mario Frassati(Drawing:203mm F10 SCT)
[ Mario Frassati Crescentino (VC) ITALY ]


Daniel Crussaire (refractor fluorite 102mm Philips Vesta Pro )

taken with the 4" fluorite.
Philips VestaPro webcam from my home
rather good conditions on August 1st
[Daniel Crussaire  Paris-Meudon, France]
