Jupiter Image 2005/04/23(UT)

木星月惑星研究会関西支部

Jupiter Image 2005/04/23(UT)
米山誠一,野々口猛浩,柚木健吉,瀧本郁夫,畑中明利,三品利郎,永長英夫,
Carlos.E.Hernandez,Ralf Vandebergh,Daniel Chang,Paulo Casquinha
S.Yoneyama,T.Nonoguchi,K.Yunoki,I.Takimoto,A.Hatanaka,T.Mishina,H.Einaga,Carlos.E,R.Vandebergh,D.Chang,P.Casquinha

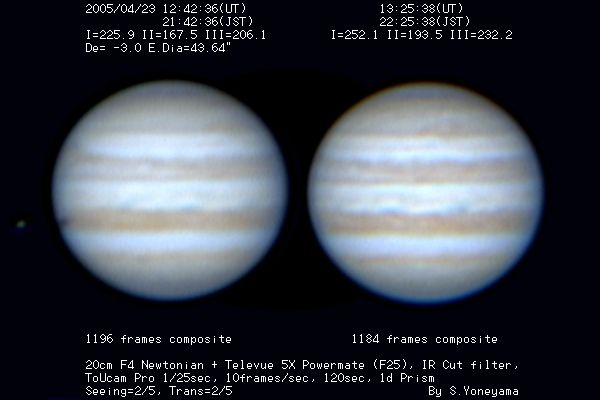

Seiichi Yoneyama(200mm F4 Newton,ToUcam PRO)

風が強い割にはシーイングが良く
何とか撮影できました。
STBとEBが良く見えています。
≪神奈川県横浜市  米山誠一≫

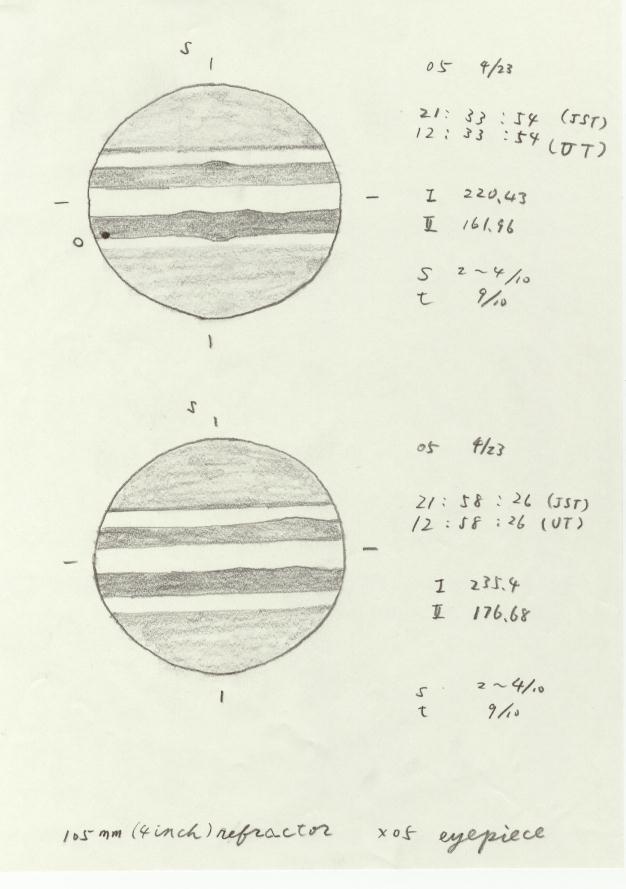

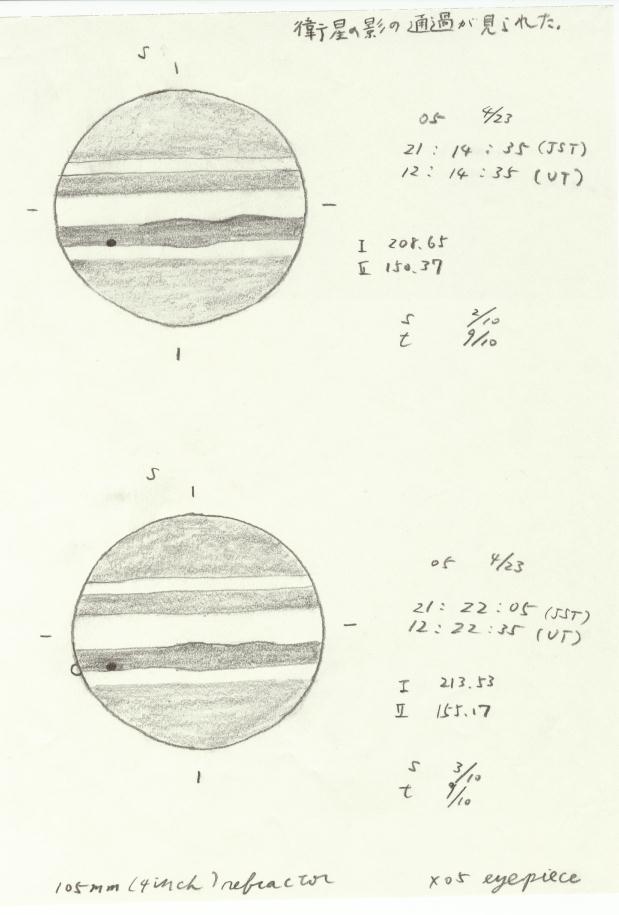

Takehiro Nonoguchi (Drawing: 105mm refractor)


この晩もシーイングはあまり良くなかったが、衛星の影の通過が見られた。輪郭が
はっきりしているので影とわかった。05年度版天文年鑑で調べると、イオのようだ。

[Takehiro-Nonoguchi  Takamatu-Kagawa-Japan  ]
≪野々口猛浩 香川県高松市≫

Kenkichi.Yunoki (200mm Newtonian, ToUcam Pro)

久しぶりに良いシーイングだった。GRS後方のいくつかの白斑が明るい。

[Kenkichi Yunoki (Sakai City Japan)]
≪大阪府堺市柚木健吉≫

Ikuo Takimoto (310mm Newtonian :ToUcam Pro )

コメント：夜半前にやっと雲が少なくなり、観測が可能
となった。しかし、シーイングは悪い状況です。
[Ayauta-gun Kagawa-Prefecture Japan]
≪香川県  綾歌郡  瀧本郁夫≫

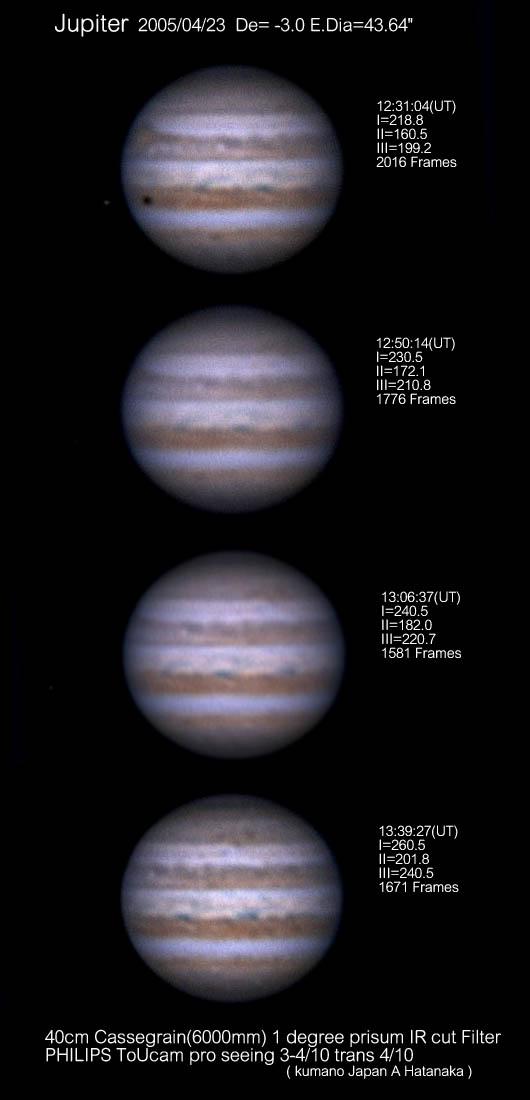

Akitoshi Hatanaka (400mm Cassegrain, ToUcam Pro)

  40cm Cassegrain+1 degree Prisum
Philips ToUcam Pro  Rezistax  IR block Filter
seeing 3-4/10   Trans 4/10
≪三重県熊野市  畑中明利≫

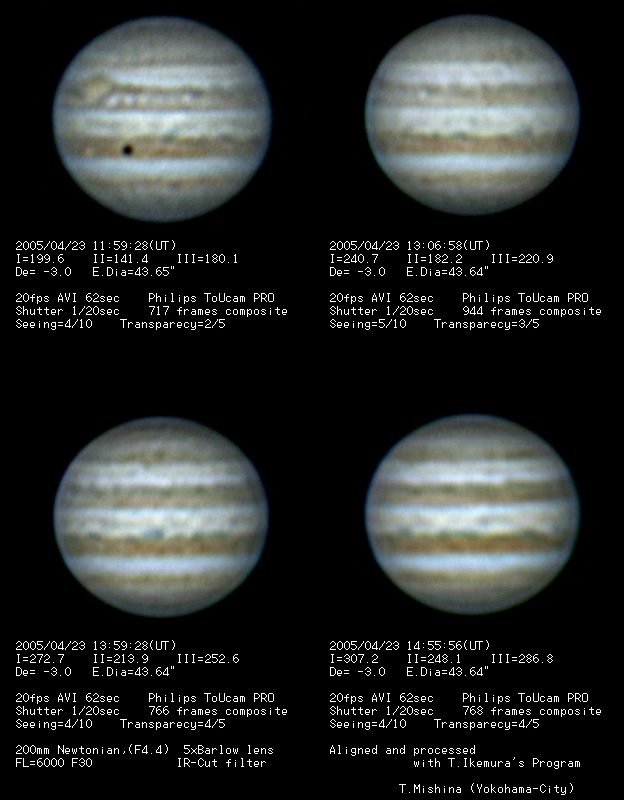

Toshirou.Mishina (200mm Newtonian, ToUcam Pro)

印象(眼視) :<13:06:58(UT)>
SEBは二本に分かれているように見えた。
NEBに幾つかの暗斑点が見えた。NEBのリフトが目立っていた。
NNTBに暗斑が見えた。

Impression (visual observation): <13:06:58(UT)>
The SEB seemed to have divided into two.
Some dark spots were seen in the NEB.
The Rift of the NEB was remarkable.
A dark spot was seen in the NNTB.
≪神奈川県  横浜市  三品利郎≫

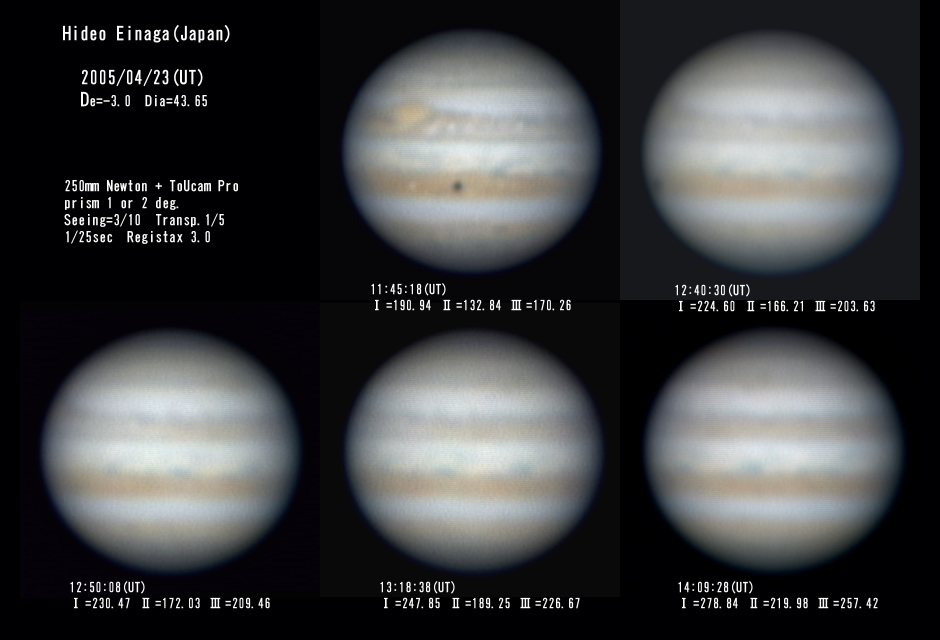

Hideo Einaga (250mm Newton, Toucam Pro Webcam)

[Hideo Einaga Kasai-City Hyogo-Prefecture Japan]
≪兵庫県加西永長英夫≫

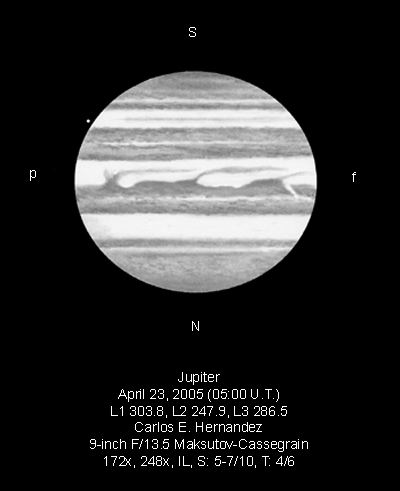

Carlos E. Hernandez (Drawing:9-inch (23-cm) F/13.5 Maksutov- Cassegrain)

I made an observation of Jupiter on April 23, 2005 at 05:00 U.T. using a 9-inch F/13.5 Maksutov-Cassegrain. Much detail was noted over the disk, especially the NEB and SEB. Europa (II) was visible adjacent to the preceding limb at the approximate latitude of the South Tropical Zone (STrZ). I welcome any comments on my observation.

2005/04/23 05:00 (UT) L1 303.8, L2 247.9, L3 286.5
Instrument: 9-inch F/13.5 Maksutov-Cassegrain Magnification: 172x and 248x
Filters: None (IL) Seeing (1-10): 5-7, Antoniadi (I-V): III-II Transparency (1-6): 4

Notes:
South Polar Region (SPR): Appears dark to dusky (3-4/10) and mottled.
South Temperate Zone (STZ): Appears bright (7/10) and thin.
South Temperate Belt (STB): Appears dark to dusky (3-4/10) with an irregular northern border. No ovals were noted within it at this time.
South Tropical Zone (STrZ): Appears bright (7/10) without any other detail noted within.
South Equatorial Belt (SEB): Appears dark to dusky (3-4/10) with an bright (7/10), irregular zone over it's mid-section. The following half of the northern component of the SEB (SEB-N) appears dark (3/10) compared to a dusky to dull (4-5/10) preceding half.
Equatorial Zone (EZ): Appears bright (7/10) with dusky to dull (4-5/10) bands (extending from NEB-S blue festoons) over the middle of the zone.
North Equatorial Belt (NEB): Appears dark to dusky (3-4/10) and mottled. A bright to very bright (7-8/10) rift is noted towards the following limb extending north towards a very bright (8/10) spot which continues as a bright (7/10) band towards the following limb. Dark (3/10) blue festoons were noted along the southern border (NEB-S).
North Tropical Zone (NTrZ): Appears bright (7/10) without any detail visible within.
North Temperate Belt (NTB): Appears dark (3/10) and broad.
North Temperate Zone (NTZ): Appears bright (7/10) and thin.
North Polar Region (NPR): Appears dark to dull (3-5/10) and mottled.

Europa (II) appears over the preceding limb at the approximate latitude of the STrZ which will soon be occulted by Jupiter.

[[Carlos.E. Hernandez South Florida U.S.A ]]

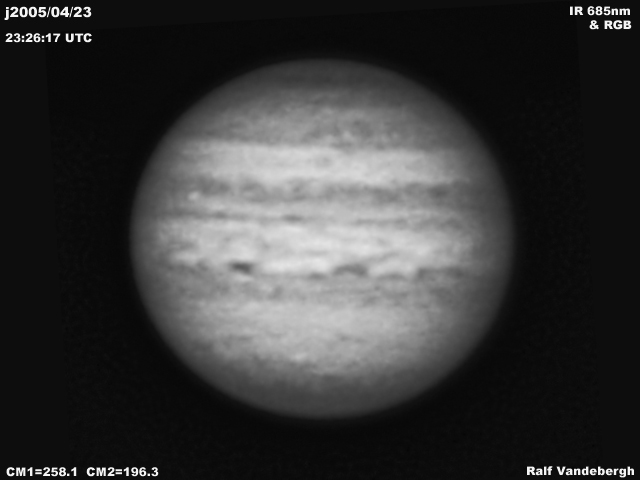

Ralf Vandebergh(250mm Newton:ATK-2C)

Attached is my latest image taken April 23,at 23:26 UTC taken under very
poor seeing conditions.The RGB layer showed very bad detail.The infrared
685nm component,fair.
There is a small white oval visible within the mid SEB.
(10 inch Newton & ToUcam PCVC740k@ 0.19´´/pi.
wind: SE,0-1 bft.seeing: 2-3/10 transp: 7/10.
a color and monochrome version.




A part of the latest IR-RGB observation showing in neg,and arroweda small white oval within the mid-SEB.

[バンディバ:オランダ]
[Ralf Vandebergh:Neighbourhood of Maastricht Netherlands]

Daniel Chang (254mm SCT Philips ToUcam Pro)

20050423Jupita image,C8 3x & 5xBarlow, ToUcam Pro,1/25sec.

[Daniel Chang : 香港]

Paulo Casquinha (250 mm Newtonian Reflector:Toucam Pro)

Jupiter image under poor to fair seeing conditions and good transparency

(site: 38.567 N /8.933 W Alt 124 m)
[Paulo Casquinha Palmela, Portugal]
