Jupiter Image 2005/06/13(UT)

木星月惑星研究会関西支部

Jupiter Image 2005/06/13(UT)
福井英人,三品利郎,柚木健吉,永長英夫,瀧本郁夫,
Robert Heffner,Ralf Vandebergh,Paolo R. Lazzarotti,Brett Turner,John Sussenbach,Jan Adelaar,Bruno Daversin
H.Fukui,T.Mishina,K.Yunoki,H.Einaga,I.Takimoto,R.Heffner,R.Vandebergh,P.Lazzarotti,B.Turner,J.Sussenbach,J.Adelaar,B.Daversin

Hideto Fukui (250mm Dall Kirkham, Philips ToUcam Pro)

<コメント>
雲が多く透明度は悪いが、思ったほど気流は悪くない。  NNTBに暗班が並んでいる。

[Hideto.Fukui  (Shizuoka-Prefecture  Japan)]
≪静岡県藤枝市  福井英人≫

Toshirou.Mishina (200mm Newtonian, ToUcam Pro)

≪神奈川県  横浜市  三品利郎≫

Kenkichi.Yunoki (200mm Newtonian, ToUcam Pro)

メタン、紫外で撮像しました。Baader Venus Filterの波長域はIDAS Uとほぼ同じですが、IDASに比べてかなり明るいです。（もっとも、写りは少し異なっていますが。）
興味深いことに、UではEZがEBを境目として北半分が暗く写っていることです。Methaneや赤（W25A)ではEZは全体が明るく写っているのに不思議です。木星のＵ画像は何を捉えているのでしょうか。

[Kenkichi Yunoki (Sakai City Japan)]
≪大阪府堺市柚木健吉≫

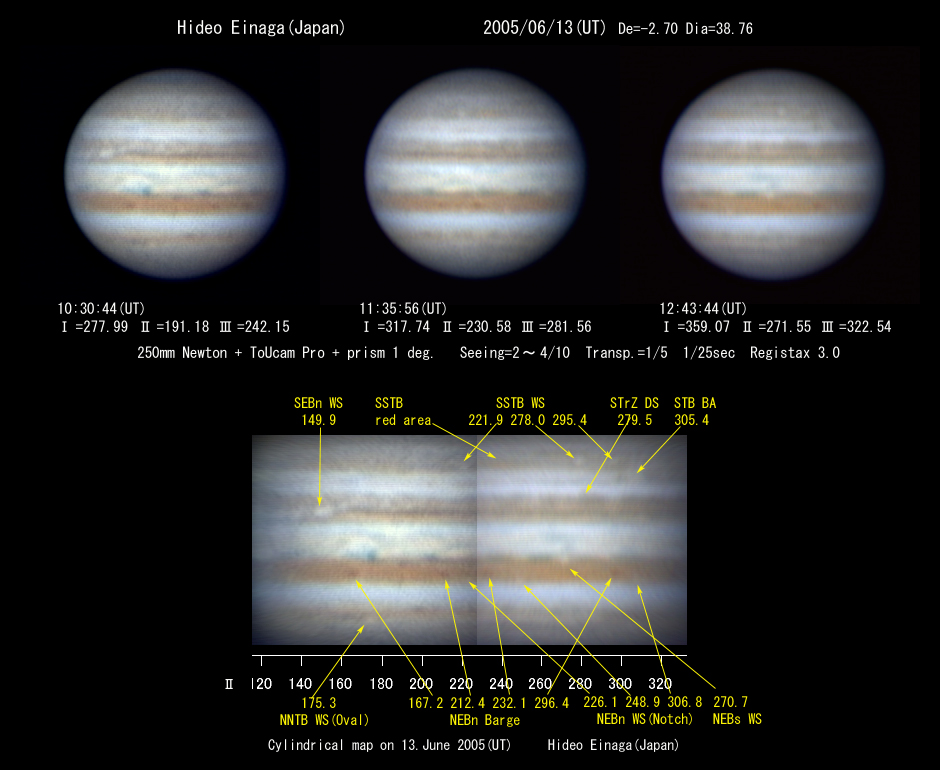

Hideo Einaga (250mm Newton, Toucam Pro Webcam)

[Hideo Einaga Kasai-City Hyogo-Prefecture Japan]
≪兵庫県加西永長英夫≫

Ikuo Takimoto (310mm Newtonian :ToUcam Pro )

コメント：シーイングは相変わらず良くない。
　　　　　BAがなんとか判る。
[Ayauta-gun Kagawa-Prefecture Japan]
≪香川県  綾歌郡  瀧本郁夫≫

Robert Heffner (280mm SCT : ToUcam Pro 840)

An unexpected clear evening tonight. The wake of the GRS can be seen on the limb as well as red spot storms in the NEB.

[Robert Heffner:Aichi, Japan]

Ralf Vandebergh(250mm Newton:ATK-1HS)

An observation from June 13th, under fair conditions.Dear wasn't much time to observe,and becomes day after day less.
Although, 3-4 avi's were still usable.
The SSTeB red bar is nicely seen,and processed at bw in the small window.Also the NNTeB dark spots were visible well.
I have them also processed at bw in the small window.
Note also the nice color difference of the SEBs jetstream with the SEB itself,and especially the subtle color difference
of the NEB and SEB.


Another image from June 13th,showing better detail within the EZ.


Attached is a partial enlargement of the yellow color of an NEBs bright bay, taken on June 13th.
(data on the image).


A conjunction of the moons Io and Europa.


I have attached a special color processing and partial enlargement of one of my
June 13. observations of Jupiter,showing nicely the NNTeB spots,and color of the NTrZ


Attached is a partial enlargement of the SSTeB red bar (color and bw) taken on June 13.


I have improved my technique again,and tried it on the latest image from June 13. as attached.
concerning NEBs yellow fringing; the image suggest that this fringing reaches further into the
EZ as I thought before.
Image data: June 13, 2005 21:21 UTC   CM1=313.33  CM2=224.12  CM3=275.06
tri-color shot with IR685nm,synth gr and blue.

[バンディバ:オランダ]
[Ralf Vandebergh:Neighbourhood of Maastricht Netherlands]

Paolo R. Lazzarotti (250mm Newton : Lumenera LU075M)

Here my latest jovian image showing the nice couple of the inner galileian moons dancing over Jupiter and producing shadows, too.
Mediocre seeing with fair/good transparency.

[Paolo R. Lazzarotti : Massa-City,Italy]

Brett Turner (254mm Newton ToUcam Pro)

[Brett Turner, Perth Western Australia]

John Sussenbach(C11 280mm SC:ToUcam Pro)


I herewith submit a recent Jupiter image
subjectname: Jupiter image 2005/06/13
Mail-text
2005/06/13 20:26:00(UT) CM I 280.5 CM II 190.5
280mm SCT (C11): 2x Barlow plus ToUcam Pro. Seeing 2/10, Trans 8/10.
[スセンバッハ:オランダ]
[John Sussenbach:De Bilt,Netherlands]

Jan Adelaar(178mm (7') Maksutov cass:ToUcam)

Seeing poor to mediocre , imaged with the C8 at F20. In IR strange..? ovals in the South Ez-zone, resolution not high enough in RGB to confirm

[ジャン-アデラー:オランダ]
[Jan Adelaar:Netherlands Arnhem City]

Bruno Daversin (200 mm Mak_cas:ATIK)

[Bruno Daversin  Cherbourg, France]
