ISS Image 2008/11/04(UT)

Ralf Vandebergh
R.Vandebergh

Ralf Vandebergh(250mm Newton)
subject:2008/11/04_ISS observations.

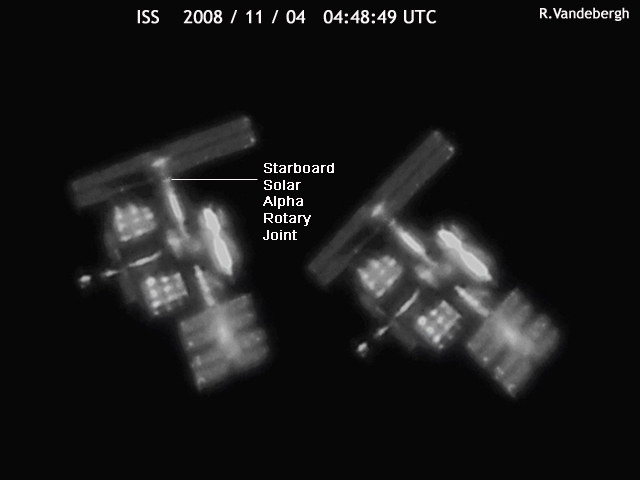

  This is a recent image taken in poor seeing on Nov 4.The
  only oppertunity I got to take images in this window due to the clouds.
  The seeing disabled capturing small detail but it shows nicely
  one of the goals of the upcomming STS-126 mission:The solar panels on
  the Starboard side are clearly not tracking the sun like the other
  solar panels on the port side,but they are faced to Earth.During a
  pass overhead the camera sees exactly its plane.One of the activities
  of the STS-126 mission is the repair of the Solar Alpha Rotary Joint
  were problems are found since the STS-120 mission.

  Note also a nice shadow on the Starboard panels!
  Image:10inch Newtionian,handtracked).

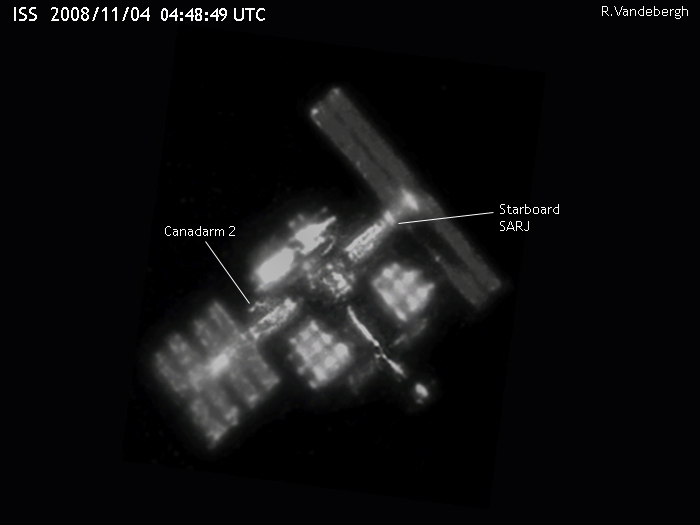

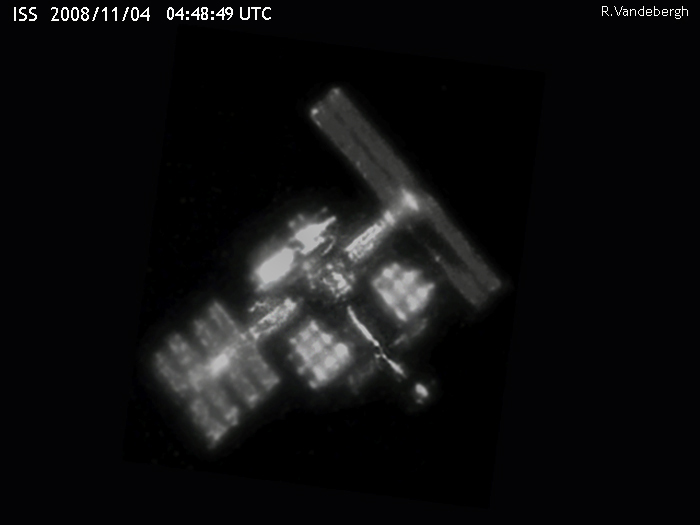

--After strong new selection of frames from my Nov 4 session
I found some much sharper frames,I combined the best which all contained
sharper and less sharper areas due to the turbulent air during the session.
Now we see clearly the robotic arm again on the trusses and a better view
on the working area of one of the comming EVA's of STS-126(EVA 2):
The SARJ(Solar Alpha Rotary Joint)at the Starboard side.As I mentioned earlier
we see nicely that the Starboard panels at the moment not tracking the sun
but is faced to Earth.They have stopped its working until the problems
are fixed.(Imaging:10inch Newtonian by manually tracking)

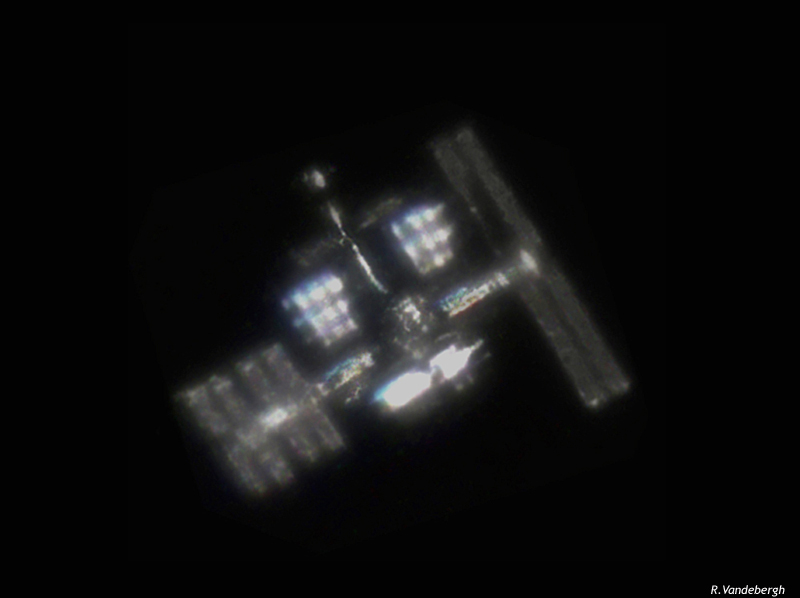

final soft contrast color version of this image.

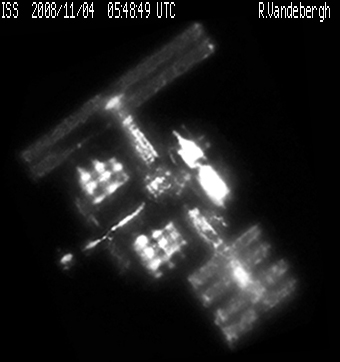

Here is a contrast-optimized version of this image.

[バンディバ:オランダ]
[Ralf Vandebergh:Neighbourhood of Maastricht Netherlands]
