ISS Image 2010/03/09(UT)
Ralf Vandebergh
R.Vandebergh
|
Ralf Vandebergh(250mm Newton) |
subject: 2010/03/09 ISS observations
STS-130 additions: Tranquility node & Cupola
Flare of the damaged S1 radiator
____________________________________________

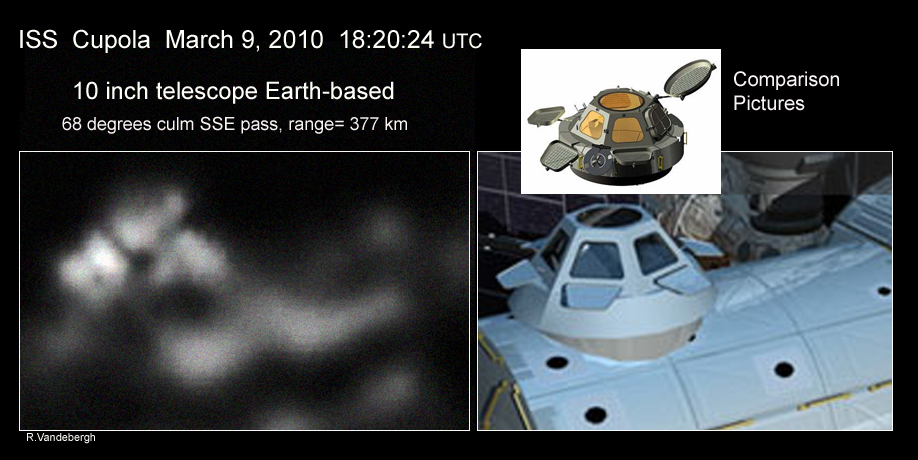

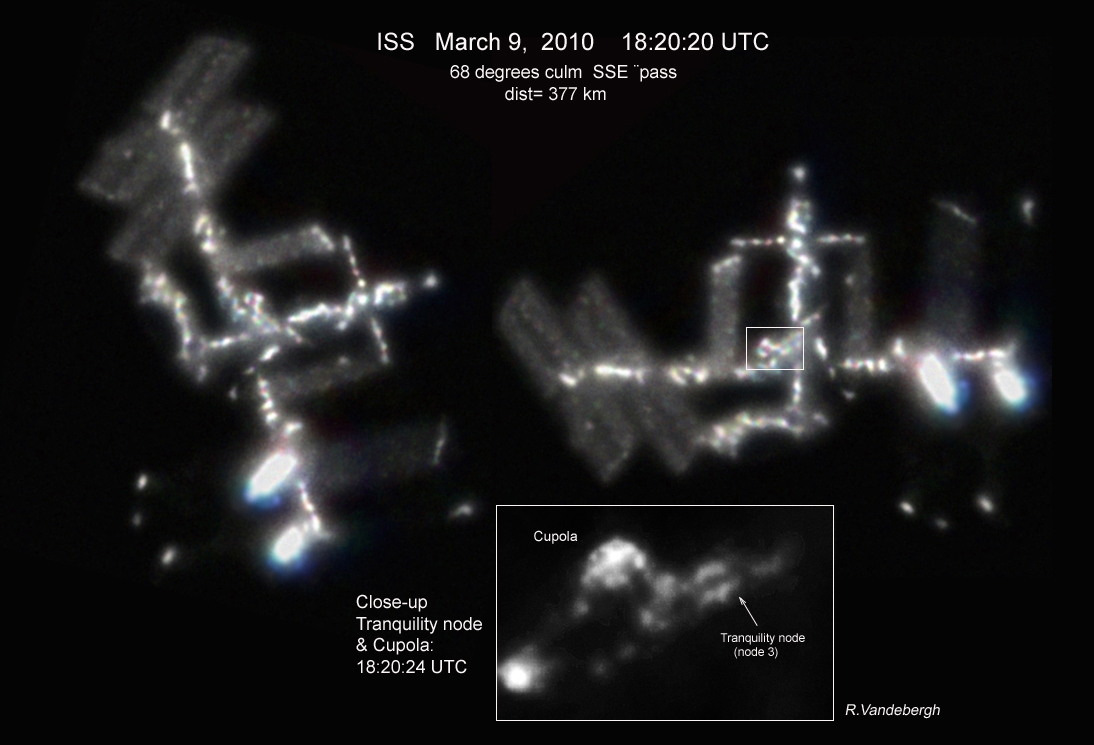

This is an observation at 377 km distance (67.6°max southern pass)
showing the new additions after STS-130 on the ISS; the node 3
(Tranquility node) with the European built observatory module:
the Cupola. Nice surprise was that the Cupola seems to stick
out in this observation as a real Cupola....

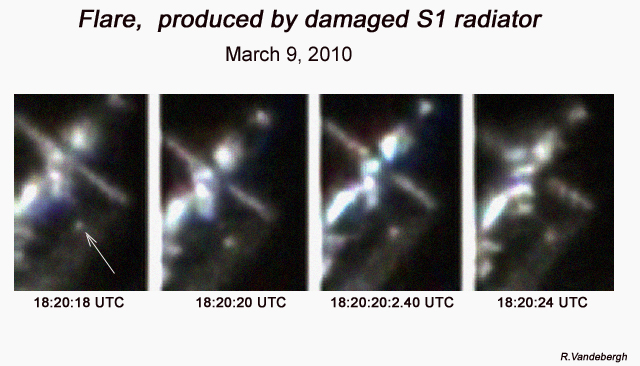

Attached also, is a seqence of a minor flare, apparently
caused by the damaged piece in the S1 radiator which sticks out:
The radiators are currently in a turned position causing that
they appear from Earth less bright itself, and the minor flare
becomes obvious. Sometimes, in images, showing the radiators
Earth-faced, and brightly white, the damaged piece can be seen
as a small dark interruption.
All observations: 10 inch Newtonian, manually tracked)

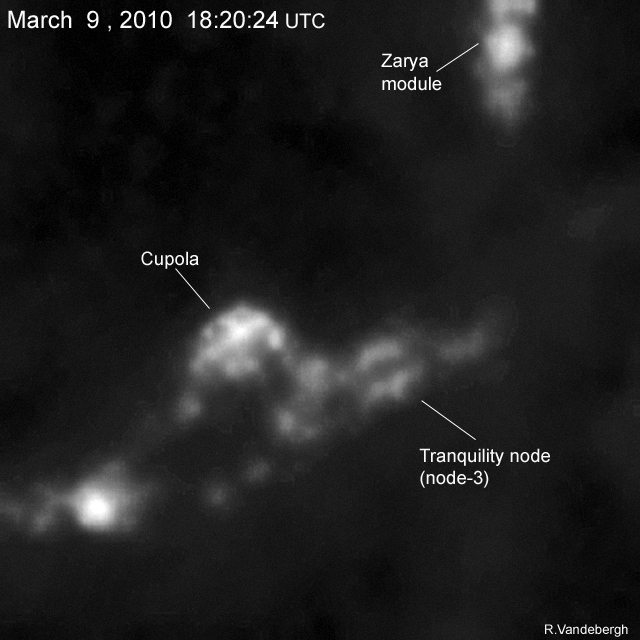

Attached is a higher resolution version of the close-up showing the Cupola
on the Tranquility node, with a wider view, providing some better orientation.
At the right you see a lit part of the Russian Zarya module, the first element
of the ISS.
Sent: Tuesday, March 30, 2010 11:35 AM
Subject: 2010/03/09_ISS observations
subject: 2010/03/09 ISS observations
STS-130 additions: Tranquility node & Cupola
Flare of the damaged S1 radiator
____________________________________________
This is an observation at 377 km distance (67.6°max southern pass)
showing the new additions after STS-130 on the ISS; the node 3
(Tranquility node) with the European built observatory module:
the Cupola. Nice surprise was that the Cupola seems to stick
out in this observation as a real Cupola....
Attached also, is a seqence of a minor flare, apparently
caused by the damaged piece in the S1 radiator which sticks out:
http://www.nasaspaceflight.com/wp-content/uploads/cache/5511_single.jpg
The radiators are currently in a turned position causing that
they appear from Earth less bright itself, and the minor flare
becomes obvious. Sometimes, in images, showing the radiators
Earth-faced, and brightly white, the damaged piece can be seen
as a small dark interruption.
All observations: 10 inch Newtonian, manually tracked)

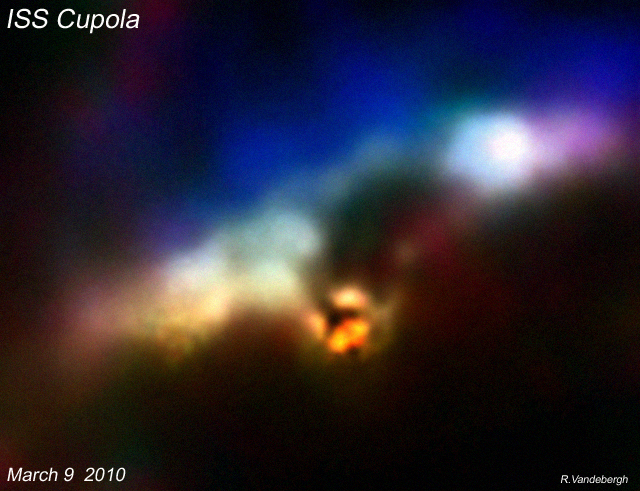

Finally, here is a (real)color shot of the Cupola area.
Note that this image is turned 180 degrees, compared
to the previous images.
Sent: Wednesday, March 31, 2010 11:43 AM
Subject: 2010/03/09_ISS observations_additional
Attached is a higher resolution version of the close-up showing the Cupola
on the Tranquility node, with a wider view, providing some better orientation.
At the right you see a lit part of the Russian Zarya module, the first element
of the ISS.
subject: 2010/03/09 ISS observations
STS-130 additions: Tranquility node & Cupola
Flare of the damaged S1 radiator
____________________________________________
This is an observation at 377 km distance (67.6°max southern pass)
showing the new additions after STS-130 on the ISS; the node 3
(Tranquility node) with the European built observatory module:
the Cupola. Nice surprise was that the Cupola seems to stick
out in this observation as a real Cupola....
Attached also, is a seqence of a minor flare, apparently
caused by the damaged piece in the S1 radiator which sticks out:
http://www.nasaspaceflight.com/wp-content/uploads/cache/5511_single.jpg
The radiators are currently in a turned position causing that
they appear from Earth less bright itself, and the minor flare
becomes obvious. Sometimes, in images, showing the radiators
Earth-faced, and brightly white, the damaged piece can be seen
as a small dark interruption.
All observations: 10 inch Newtonian, manually tracked)

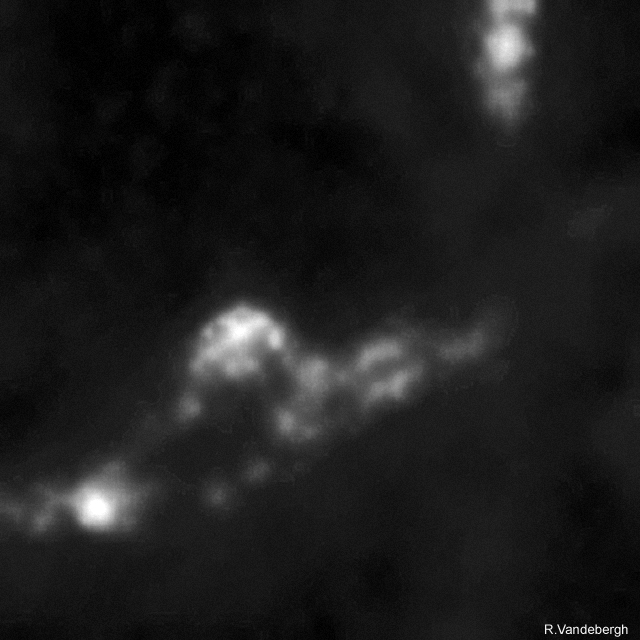

This final result of my March 9 ISS imaging session, shows the best
detail generally spoken, on the recently added new elements.
The partial enlargement shows the Tranquility node (node 3) and
the Cupola (European built observatory window) now from above,
and the new location of the Pressurized Mating Adapter number 3 (PMA-3)
at the end of the node. At 377 km (67° max culm pass),the visibilty of
the PMA was about at the edge, as only few frames with higher local
resolution due to local seeing variations resolved it from the module.
This final result of my March 9 ISS imaging session, shows the best
detail generally spoken, on the recently added new elements.
The partial enlargement shows the Tranquility node (node 3) and
the Cupola (European built observatory window) now from above,
and the new location of the Pressurized Mating Adapter number 3 (PMA-3)
at the end of the node. At 377 km (67° max culm pass),the visibilty of
the PMA was about at the edge, as only few frames with higher local
resolution due to local seeing variations resolved it from the module.

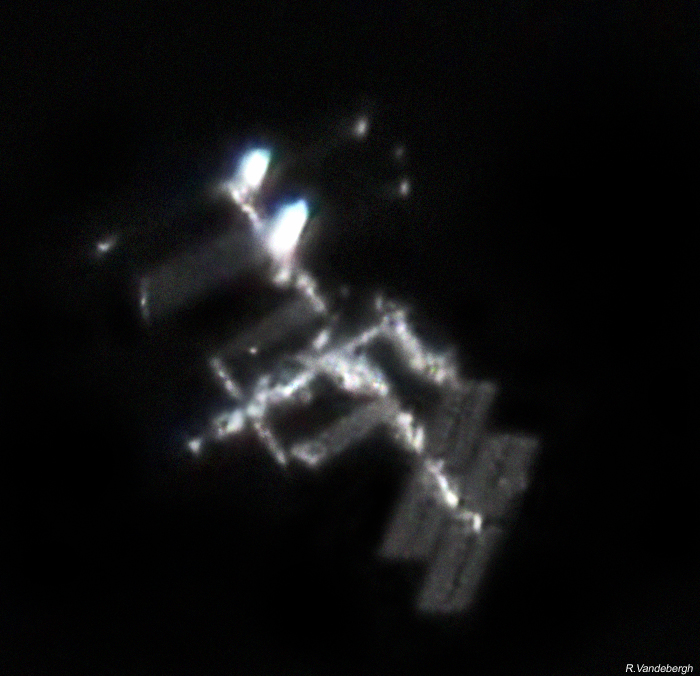

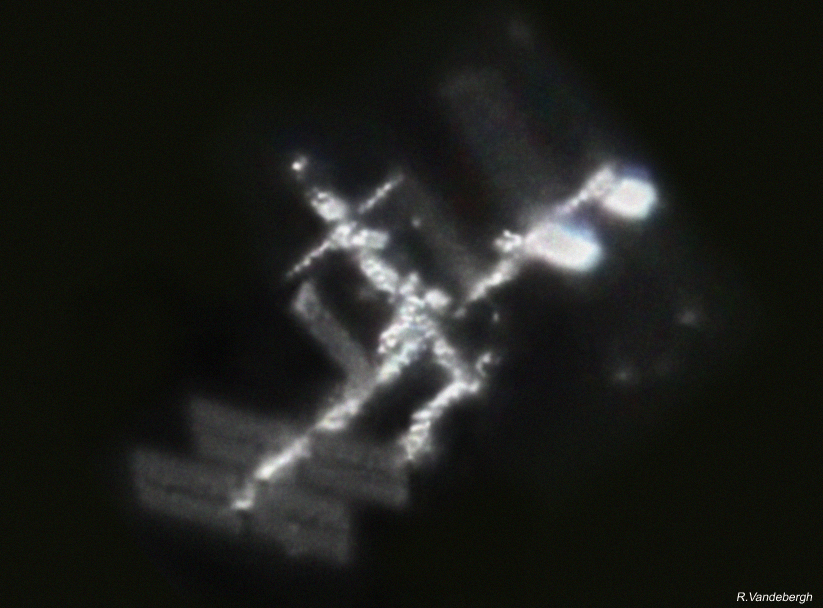

ISS session, a composition with use of best frames
[バンディバ:オランダ]
[Ralf Vandebergh:Neighbourhood of Maastricht Netherlands]
