Jupiter Image 2011/07/31(UT)
菅野清一,熊森照明,永長英夫
Javier Beltran Jovani,Paul G. Abel,Marc Delcroix,Jean Jacques Poupeau,George Tarsoudis,Fumega Camilo Ucha,Bruce Kingsley,Antonio Lasala Garcia,Sadegh ghomizadeh,Gerald Stelmack,Manos Kardasis,Clif Ashcraft
Javier,P.Abel,M.Delcroix,J.J.Poupeau,G.Tarsoudis,Camilo,B.Kingsley,S.Kanno,T.Kumamori,A.Lasala,Sadegh.GH,H.Einaga,G.Stelmack,Kardasis,C.Ashcraft
|
Javier Beltran Jovani(505mm Newton) |
Jupiter 2011 - 07 - 31_04:22 U.T.
Camera Basler Ace acA640-100gmIR685
Newt 505mmEQ
[Javier Beltran Jovani:Castellon-Spain]
|

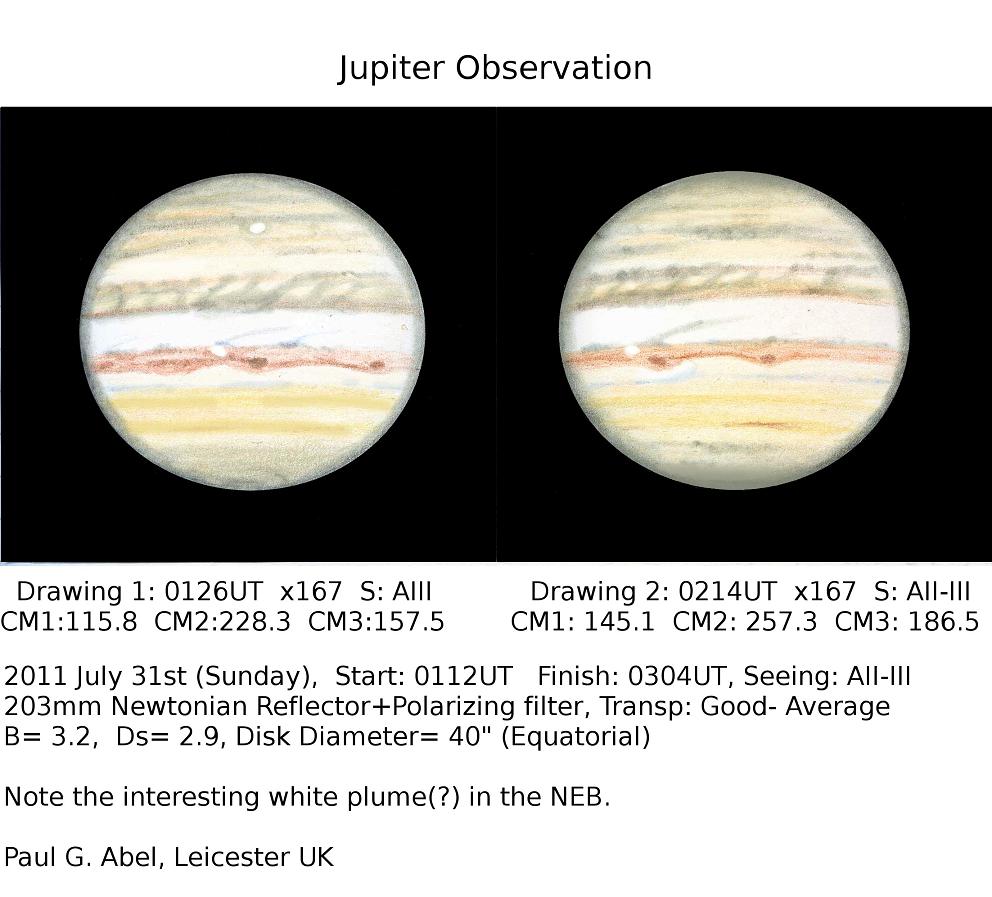

Paul G. Abel(203mm reflector) |
Although the transparency was rather average,the seeing was quite good at times and by the time I came to make drawing 2,the image definition was reasonably stable. I employed the use of a polarizing filter throughout the observation this seemed to darken the sky and increase the contrast of the various objects inside the equatorial belts.
I had some trouble in seeing the belts south of the SEB and I think the belts were are a little fragmented,although in drawing 2 the STB(?) seemed to have a dark section passing over the CM. The SEB is looking very striking now. It seems to me that there are two components,and the components are connected at fequent intervals by greyish diagonal sections. Some of the brighter regions in between these dark grey sections are quite bright and are of a yellowish colour. There is a lot of complex structure in the SEB.
The NEB was also of interest; two dark barges were clearly present and the northern edge of the NEB was rather 'wavy'. I am reasonably sure that a bright plume,white in colour was present near to the most proc. barge. Also of interest is the apparent appearance of a vague bluish belt between the NEB and the NTB. The belt was rather thin bur definitely enhanced by the orange-red filters. The NTB and NNTB were present but harder to see as they were a golden colour and only slightly darker than the surrounding zones. Darker sections could be seen in the NNTB. Also some darker grey sections present in the NPR (drawing 2).
Filter work (all at x167 with polarizing filter)
0228UT W12 (yellow): This filter helped enhance the fine details within the main equatorial belts. The STB also seemed more definite in this filter- Ganymede reddish in this filter?
0240UT W25A (red): Interesting view,only the NEB and SEB could really be made out,but the details within them were also enhanced by this filter. So too were the bluish features along the NEBs.
0243UT W47 (violet): The whole disk seemed to be of uniform brightness (except at the limb) . Only the EBs are visible in this filter,and even these are hard to see
0247UT W80A (blue). Another nice view,the reddish features on the planet were nicely enhanced.
By 0304UT seeing had dropped off once more,so I decided to close down for the night.
Best wishes,
[Paul G. Abel:Leicester:United Kingdom]
Still we can make out oval BA rising,White Spot Z and a dark barge in NEB
[Marc Delcroix Tournefeuille,France]
|
Jean Jacques Poupeau (350mm Cassegrain) |
The seeing was average and the transparency was good.
T = +9.5°C
[Jean Jacques Poupeau : Pecqueuse France]
|
George Tarsoudis ( 254mm Newtonian ) |
Telescope 10 inch @f/6.3,camera Unibrain fire-i 785,filters RGB,barlow 3X.
[George Tarsoudis,Alexandroupolis of Greece]
《ターソウディス ギリシャ アレクサンドロポリス》
|
Fumega Camilo Ucha(310mm.Newton) |
Mediocre seeing.
[Fumega Camilo Ucha : Galicia,Spain]
|
Bruce Kingsley(354mm SCT) |
Its been along time since I was last able to send out an observation,but
at last I have a fully operational equatorial mount again.
So here is my first Jupiter of the apparition. Conditions were not ideal
and seeing was not very good with a light haze in the sky. Dew was
abundant,but it was good to be observing again!
[Bruce Kingsley: Maidenhead United Kingdom]
|
Seiichi Kanno(300mm Newtonian) |
梅雨のような天候が続き、10日ぶりの報告になります。
この日も雲が多く、雲間を見つけての撮像になり、1ショット目以後の撮像は
雲の阻まれ断念しました。
≪山形県上山市 菅野清一≫
|
Teruaki Kumamori (280mm SC) |
梅雨のような天気が続きます。
少しの晴れ間で撮影することができました。
≪大阪府堺市 熊森照明≫
|
Antonio Lasala (254mm Newtonian) |
[Antonio Lasala :Morata de Jalon:Spain]
|
Sadegh ghomizadeh (235mm SC) |
[Sadegh ghomizadeh: Tehran IRAN ]
|
Hideo Einaga (300mm Newton) |
[Hideo Einaga Kasai-City Hyogo-Prefecture Japan]
≪兵庫県 加西 永長英夫≫
|
Gerald Stelmack(235 mm SC) |
2011/07/31 (GS Jup-2011-07-31) 10:26 UT
CM1=84.43 CM2=194.11 CM3=120.49
Mag = -2.4
Dia = 40.5"
C9.25 (235 mm)
DMK 21AF04.AS
Astronomik LRGB Type 2
Seeing: 7/10
[G.Stelmack : Canada]
|
Manos Kardasis (280mm SCT ) |
Under not so favourable conditions.
[Manos Kardasis,Glyfada-Athens;Greece]
《カーダシス マノス:ギリシャ アテネ》
|
Clif Ashcraft(184mm Schupmann) |
[Clif Ashcraft:New Jersey:USA]
