Jupiter Image 2011/08/22(UT)
大田 聡,畑中明利,阿久津富夫
Ian Sharp,Martin Mobberley,Gianluca Bianchi,Paul G. Abel,Marco Guidi,Simon Kidd
I.Sharp,M.Mobberley,G.Bianchi,P.Abel,M.Guidi,S.Ota,A.Hatanaka,T.Akutsu,S.Kidd
diffraction rings when collimating,and a nice view in the eyepiece this morning,but the seeing didn't deliver an image with detail at high resolution. Anyway,here it is
![](j110822a1.jpg)
[Ian Sharp: West Sussex,United Kingdom]
Martin Mobberley (300mm Newton) |
[Martin Mobberley: United Kingdom]
Gianluca Bianchi(102mm Maksutov)
|
102 mm maksutov cassegrain,barlow 3x+barlow 2x,uv-ir cut,neximage sum nearly
1400 frames el.r6 iris.
[Gianluca Bianchi:Modena ITALY]
Paul G. Abel(203mm reflector) |

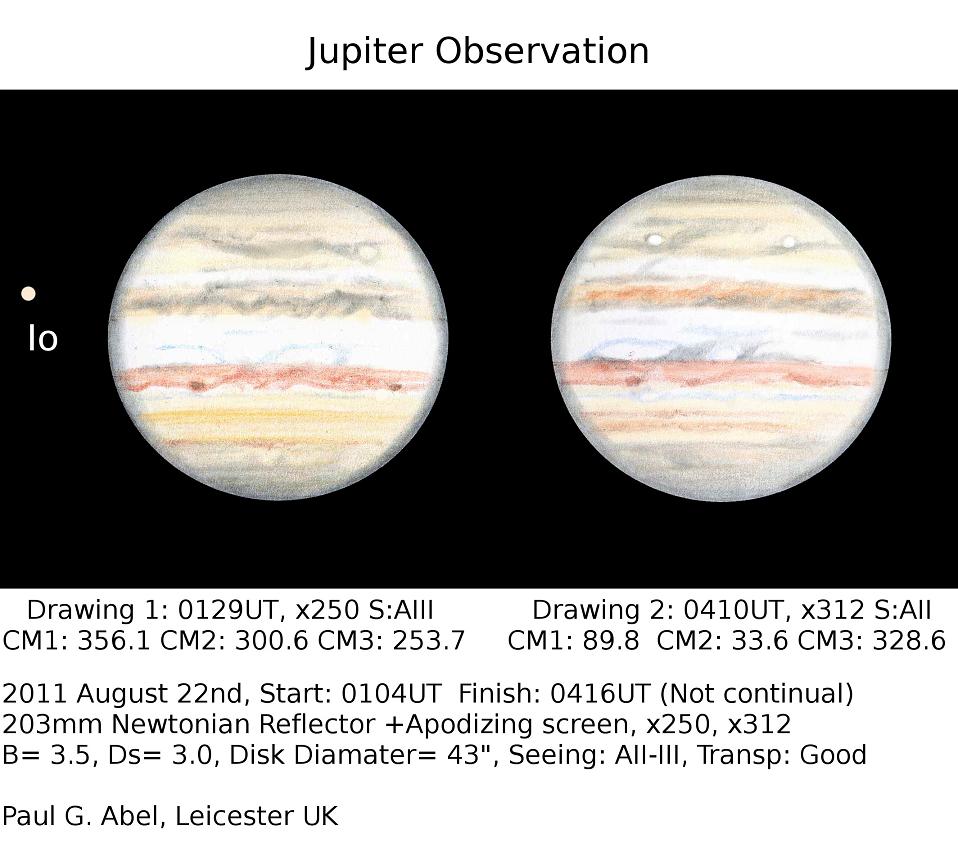

Attached are are two Jupiter drawings I made last night. We had some stable conditions and by the time of drawing two,I was able to use a power of x312 on the planet and really observe some fine details. Main remarks from the observation is as follows:
Drawing 1: Oval BA now coming into view- this is my first view of it this apparition and it seems to me that it's colour is harder to detect visually this time round. The STB seemed to be a little curved in appearance,and the SEB again seemed to be quite turbulent,with a dark grey SEBz composed of darker diagonal sections. A number of festoons present in the EZ and two dark barges were observed in the NEB- dark brown in colour. NTB and NNTB harder to see at these longitudes,and the NPR seemed to contain some faint structure.
Drawing 2: Seeing rather good now,and at x312 there is a great deal of colour and structure present on the disk. The region between the STB and SSSTB was interesting- Two white ovals were present in the STZ,and the STB seemed to curve under them. From the proc. white spot,there seemed to be a gray diagonal feature. Further north,it seemed that there may have been a sgort grey extension from the SEBs through the STropZ though the feature was hard to pin down. At this longitude there is a strong orange component to the SEBz and the turbulence continues to manifest itself as diagonal darker sections. Number of festoons and what I took to be a veil present in the EZ. A number of dark barges present in the NEB and there seemed to be a white oval or brighter region in the NTropB band- perhaps the band goes around a bright region in the NTropZ?
NTB and NNTB much easier to see at this longitude- what looks like to irregular lighter regions present in the NPR.
![](j110822d1.jpg)
[Paul G. Abel:Leicester:United Kingdom]
[Marco Guidi,Italy]
Satoshi Ota (309mm Newtonian) |
[Tomigusuku city Okinawa Japan]
≪沖縄県 豊見城市 大田 聡≫
Akitoshi Hatanaka (400mm Cassegrain) |
≪三重県熊野市 畑中明利≫
屋上に風があり、ぶれた画像です。 SEB葉中央が明るく、両側が複雑な模様。
≪Cebu PHILLIPINES 阿久津富夫≫
Simon Kidd (355mm Celestron SCT) |
An image from Monday morning. Despite suffering two 5 second power cuts
(annoying!) everything held together to get a couple of runs under the
fairly good conditions.
This image shows, coincidentally, roughly the same face as the one from the
15th, some interesting changes have occurred.
[Simon Kidd: Welwyn Herts,United Kingdom]
