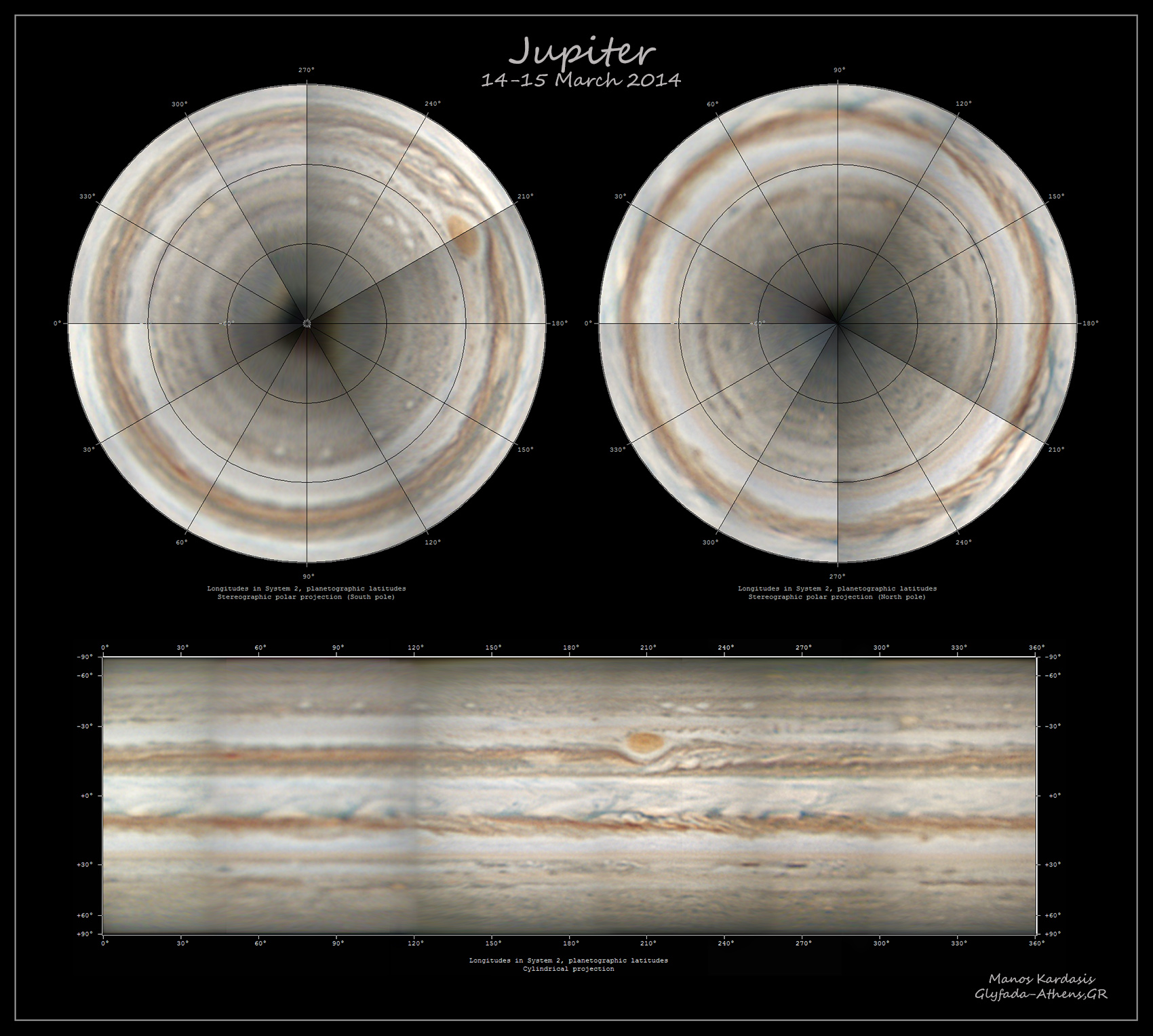

Here is a set of maps that needed many-many hours of personal work.

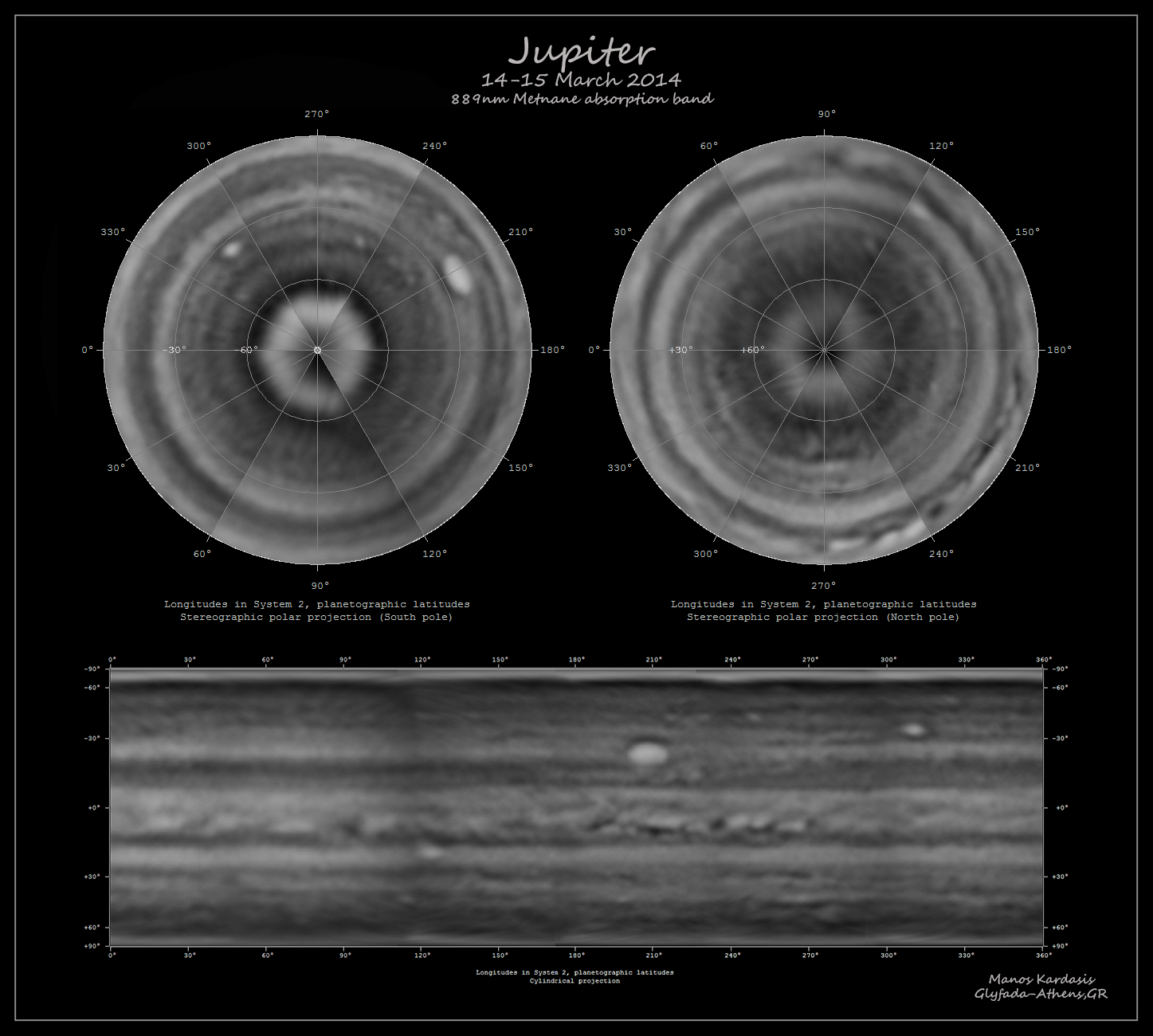

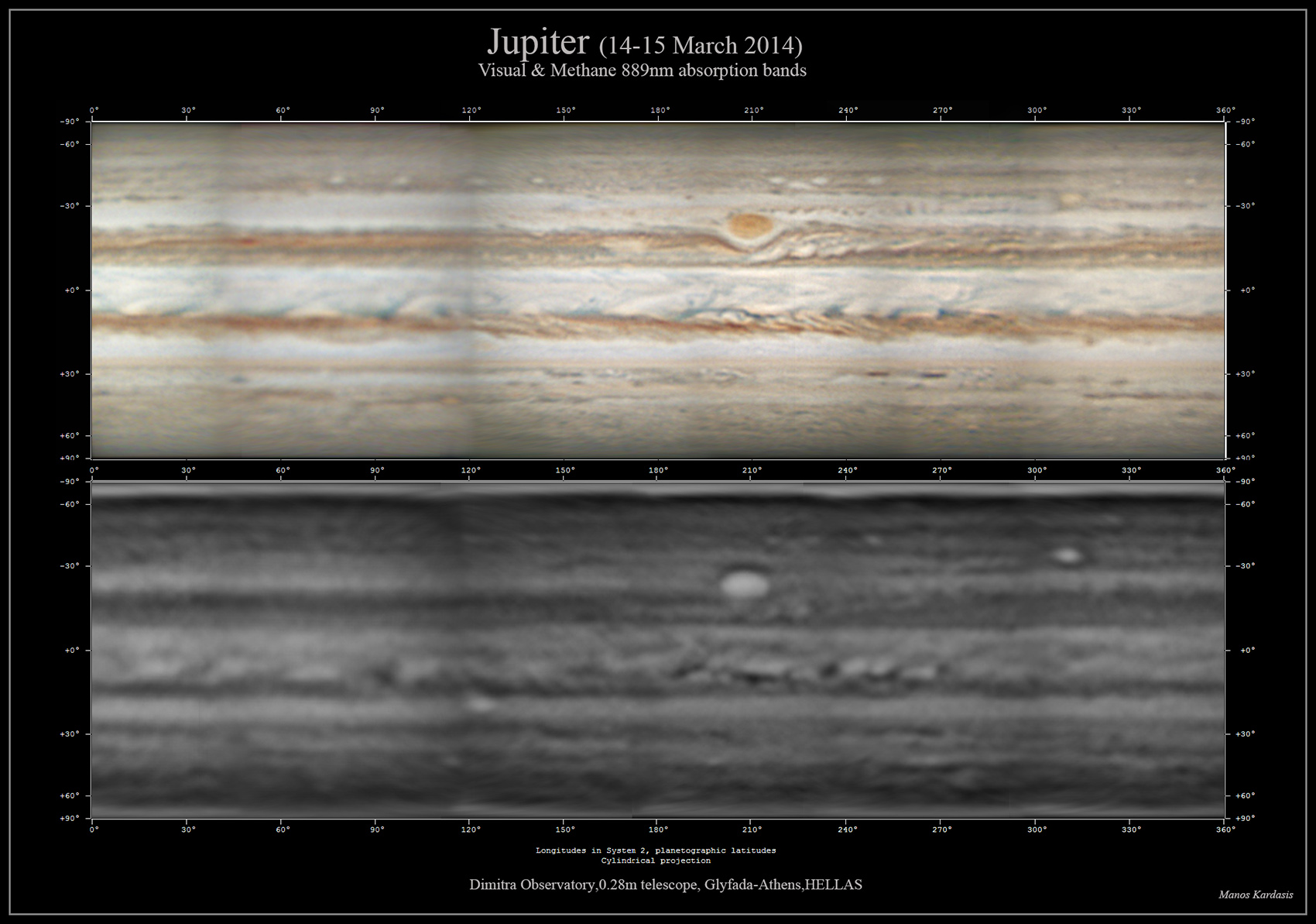

Methane absorption 889nm band report

 Polar caps: Both caps look bright, the south cap is brighter, and the  north cap more extended than the south cap.

 SSTB: The white Ovals look bright. The oval between and north of A3 &  A4 ovals("Mickey mouse") is still bright but less bright than at its discovery on Non 9th.
              The shape looks like it is more extended now.

 STB: Oval BA is very bright. The "STB ghost" is a methane-dark  formation. The material interacting with Oval BA is methane-dark too.

 SEB: Most of the visually bright features are methane bright also. Some methane-bright plumes are visible on the rifted region F of the GRS.
          The interacting area between the "light patch" and the GRS is quite methane bright.

 EZ:  A methane-bright zone with dark sectors mainly in the middle.

 EZn-NEBs: A very active area with about 10 dark projections (dark-blue  in RGB) associated with bright areas on the F side.
                      The most active area is in the middle-right of the map  (associated with NEB rifted region).

 NEB: Is mainly dark with some bright areas in the rifted region. NEBn  is bright and hosts Spot Z (former WSZ) which is very methane-bright since the start of               this apparition.

 NTrZ: Is  bright in all its length.

 NTB-NTZ: The NTBs edge (which is pale orange in visible light) is  also methane-bright but the rest is quite dark.
          In L2=145-210 there is a great disturbance in the NTBn-NTZ mainly dark in the P side.
          In the center there are some brighter regions and a small methane-bright spot in a rift is visible at +29, L2=165.
          At L2= 250 & 270 there are two dark barges. In NTZ at L2=47 there is a very methane-dark spot, which has been visually very dark since early March.


 NNTB: It is not clearly separated from North Polar Region. It is mostly  dark, but a very dark sector is present at L2=315-365.

 NNTZ: LRS-1 is very bright and there is a dark sector P-F and south of  it.There is another bright spot at L2=200.

 NPR:  There are some bright and dark areas.

[Manos Kardasis,Glyfada-Athens;Greece]
