木星 ALPO-Japan Latest

Jupiter Image 2017/02/25(UT)
三品利郎,鈴木邦彦,堀川邦昭,畑中明利,橋野英嗣,堀井恵策,山崎明宏,永長英夫
Jean Jacques Poupeau,Avani Soares,Paul Maxson,Christopher Go,Tiziano Olivetti,Christophe Pellier,Michel Jacquesson,Trevor Barry,Damian Peach
J.J.Poupeau,A.Soares,T.Mishina,P.Maxson,Christopher Go,T.Olivetti,K.Suzuki,K.Horikawa,Christophe.P,Michel.J,A.Hatanaka,H.Hashino,K.Horii,A.Yamazaki,T.Barry,D.Peach,H.Einaga

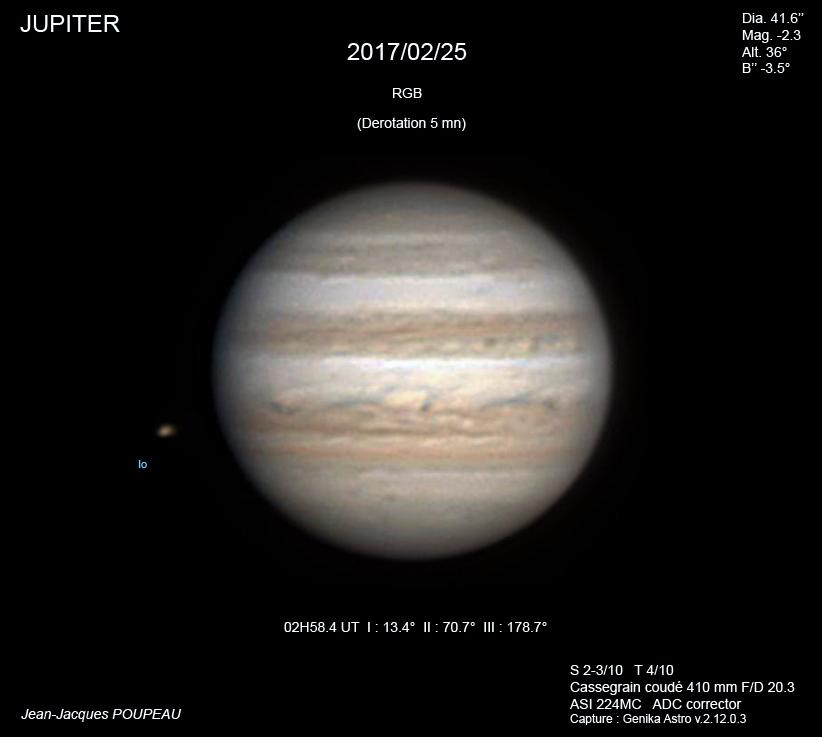

Jean Jacques Poupeau (410mm Cassegrain)

[Jean Jacques Poupeau : Pecqueuse France]

Avani Soares (354mm,200mm SC)

[ Observatory Parsec,City Canoas,Brazil]

Toshirou.Mishina (200mm Newtonian)

≪神奈川県  横浜市  三品利郎≫[Toshirou.Mishina:Kanagawa Japan]

Paul Maxson(250mm DK or 315mm DK)

[ Paul Maxson:Surprise,Arizona,United States]

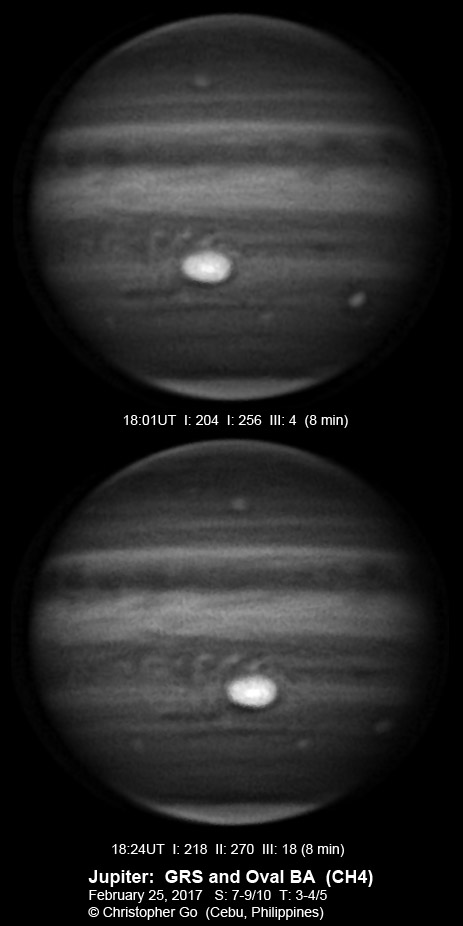

Christopher Go (355mm SC)
Condition was much better this morning.  Seeing was variable but much better than yesterday.
I had to deal with clouds along the way. The GRS is very well resolved. The dark red core can be seen. Note the small ovals on the eastern edge of the GRS.
The wake of the GRS is very turbulent. Note the multiple outbreak white spots on the wake. Oval BA has a dark orange color and is setting on the right. The source of the SEB outbreak can be seen just above Oval BA. The NEB has an outbreak. Note the dark oval connected to this outbreak. The NNTZ LRS is huge and and directly north of the GRS.
This spot is bright in methane band has a hint of red. [Christopher Go : Cebu Philippines]

Tiziano Olivetti(410mm Dall Kirkham)
attached two images from this morning,under average seeing an poor transparency

[ティジャノ:オリベッティ バンコック タイ]
[Tiziano Olivetti : Bangkok Thailand]

Kunihiko Suzuki(190mm Newtonian)
南中ころは比較的シーイングが安定していました。

[Kunihiko Suzuki : Yokohama-city Kanagawa-Prefecture Japan]
≪神奈川県  横浜市  鈴木邦彦≫

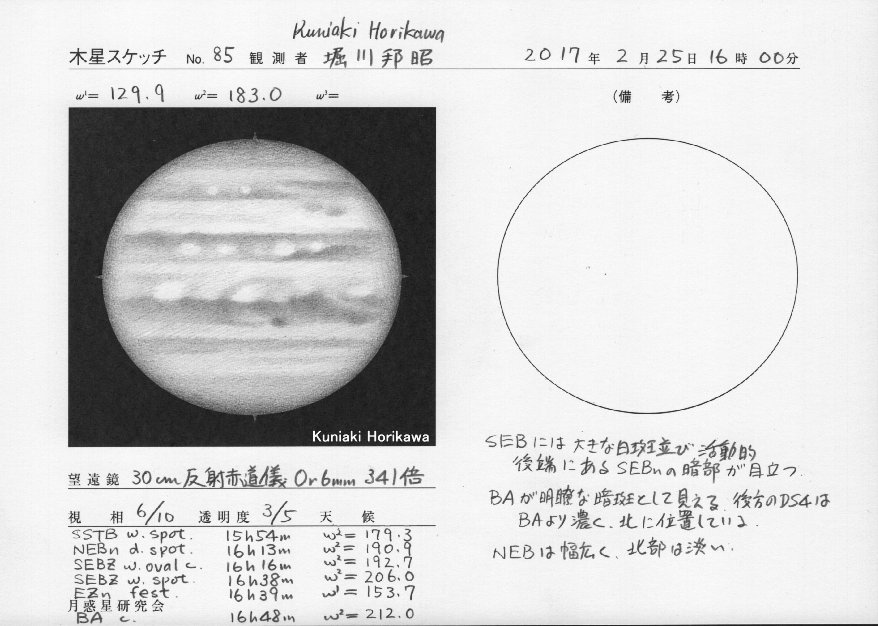

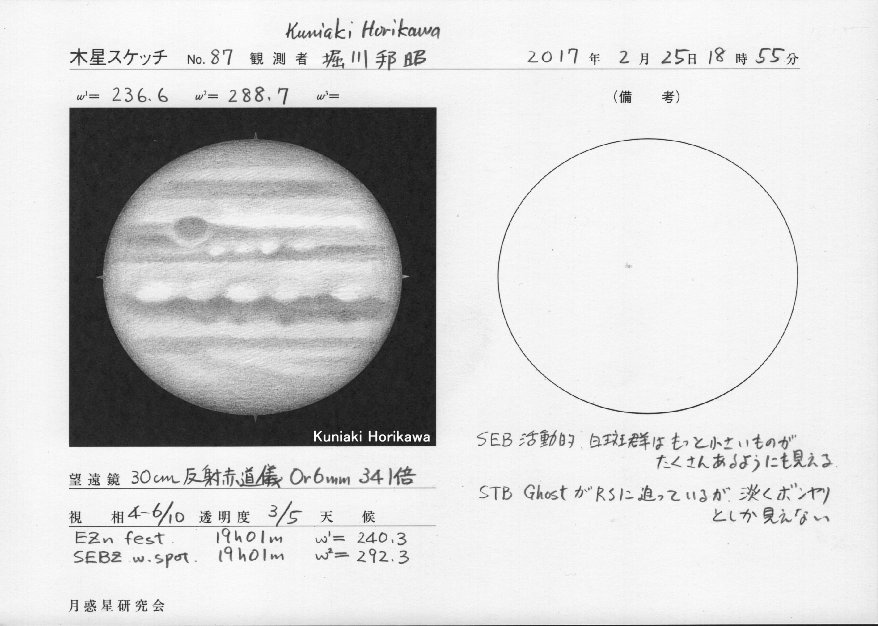

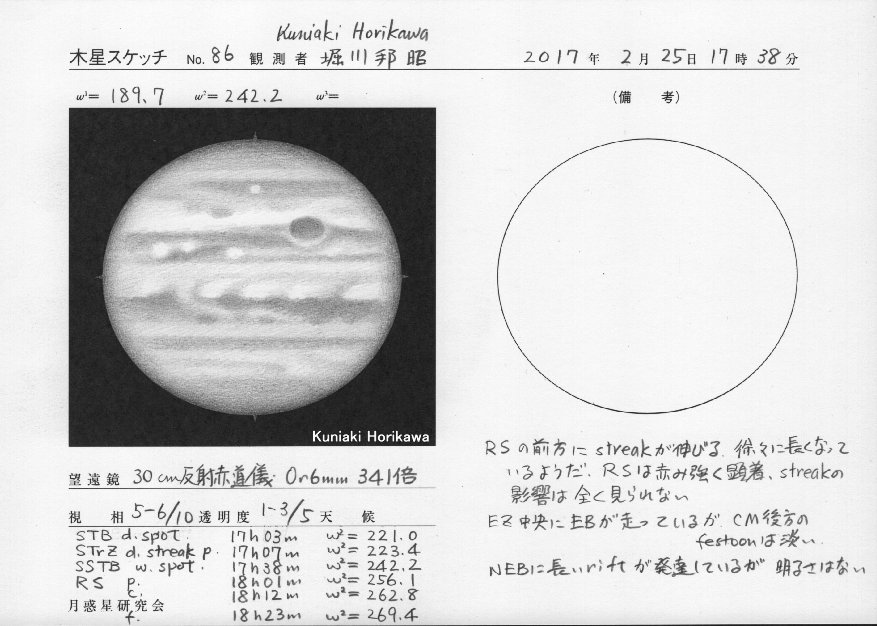

Kuniaki Horikawa(300mm Newtonian)
RS前方のstreakがだんだん長くなっています。
mid-SEB outbreakの余波と考えています。



≪神奈川県横浜市泉区  堀川邦昭≫[Kuniaki Horikawa:Kanagawa Japan]

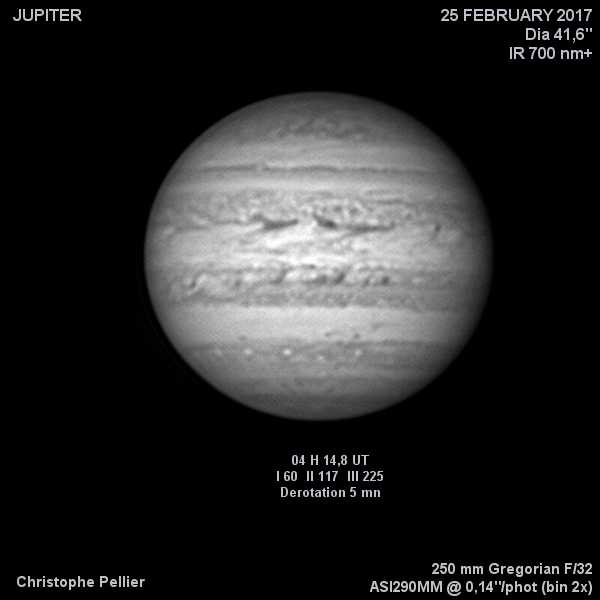

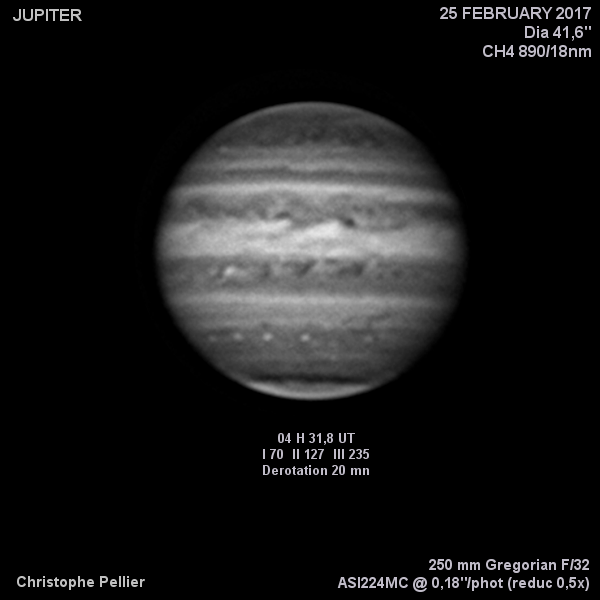

Christophe Pellier (250mm Cassegrain)
Some images of the preceding trail of SEB outbreak under good seeing.







[Christophe Pellier  Bruz City,France]

Michel Jacquesson (203mm SC)

[Michel Jacquesson : Sevigny-Waleppe (Ardennes) France]

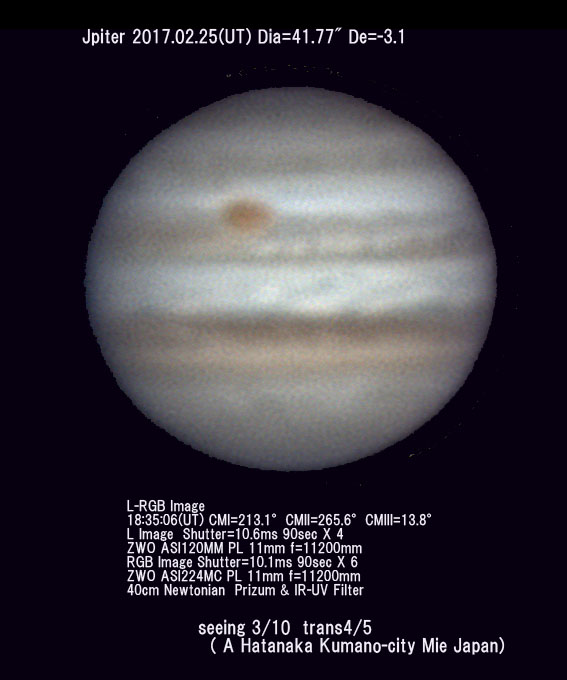

Akitoshi Hatanaka (400mm Cassegrain or 280mm SCT or 300mm Newton)
40cmニュートンの光軸調整(写経の位置合わせ)に手間取りました。
しかしまだ完璧ではないようです。
なかなか細部まで写りません。

≪三重県熊野市  畑中明利≫[Akitoshi Hatanaka:Kumano Mie Japan]

Hidetugu Hashino(305mm Newtonian)

≪千葉県木更津市 橋野英嗣≫[Hidetugu Hashino:Chiba:Japan]

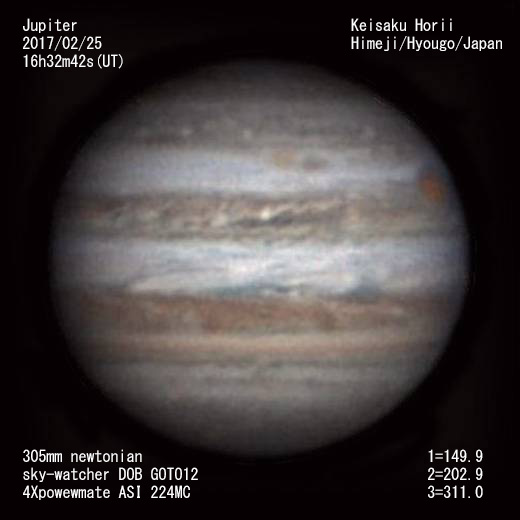

Keisaku Horii (305mm Newton)

≪兵庫県姫路市  堀井恵策≫[Keisaku Horii : Himeji Hyougo Japan]

Akihiro.Yamazaki(318mm Dall-Kirkham)
シーイング自体は良かったのですが、もっとも良像が得られたのは、ZWOのADCを外した画像でした。※シングルの2°のプリズムは使用していますが。
構成上、Lフィルターが装着できなかったので、NIRも含んだ画像です。結果、GRSに暗斑とは別に白斑が写りましたが、これはGoさんのNIRに写っていたものと同一かもしれません。

《東京都町田市、山崎明宏》[A.Yamazaki: Machida Tokyo Japan]

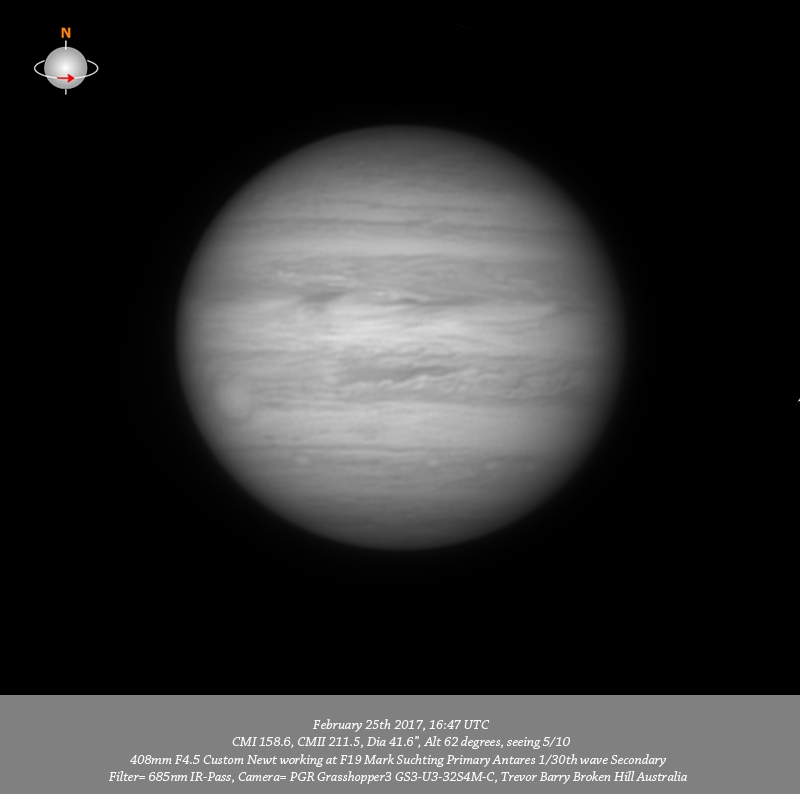

Trevor Barry(406mm Newtonian)
maged Jupiter Feb 25th in average conditions,have good coverage of Oval BA and the region preceding the GRS.











[Trevor Barry:Broken Hill:Australia]

Damian Peach (356mm Celestron SCT)
Good seeing for this session. The GRS and Oval BA are very nicely seen.
I measured the size of the GRS and Oval BA from this data and get the following:

GRS            15,660km. Centre at  L2: 264.2 (L3: 12.2)
Oval BA        7,343km.  Centre at L2: 212.0 (L3: 320.0)

Note the brilliant white spot in the centre of the mid-SEB outbreak region.


A detailed B filter result was possible on this session which
certainly speaks highly of the telescope optics and seeing at the time.

GRS is central with Oval BA headed off.

[Damian Peach: Loudwater,Buckinghamshire,United Kingdom]

Hideo Einaga (300mm Newton)

[Hideo Einaga Kasai-City Hyogo-Prefecture Japan]
≪兵庫県  加西  永長英夫≫
