Jupiter Image 2020/05/11(UT)
石橋力,鈴木邦彦,荒川 毅,堀川邦昭,大杉忠夫,井上 修,熊森照明,山根 悟,三宅 明,安達 誠
Vlamir da Silva Junior,Clyde Foster,Jose Luis Pereira,Walter Martins,Christopher Go,Anthony Wesley,Niall MacNeill,Cory Schmitz
V.da Silva Jr.,C.Foster,J.Luis,T.Ishibashi,K.Suzuki,W.Martins,T.Arakawa,Christopher Go,Anthony.W,K.Horikawa,T.Ohsugi,O.Inoue,N.MacNeill,T.Kumamori,S.Yamane,A.Miyake,M.Adachi,C.Schmitz
I have many more images from this day,May 11,2020,a lot of AVIs to process,but this one I wanted to send at once.
Seeing helped to get some details of the GRS.
On NEB we can see an outbreak on the preceding side and also another one on the following side which has recently risen in this image.
A very bright white spot (outbreak) following the GRS,too (in the GRS wake).
The dark spot on the whitened STB is also there.
NTB is visible divided in two.
A7 on SSTB,south of the GRS.
More to come soon from this night.
[Vlamir da Silva Junior : Sao Paulo,Brazil]
I had decent seeing conditions this morning,and was able to keep imaging as the GRS approached the CM,despite the sky brightening.
There are two,beautiful,sweeping festoon systems extending below the NEB.
There are two bright outbreaks in the NEB seen in IR(previously noted by Anthony and Eric).
In the CH4,there is some indication of a flake on the preceding edge of the GRS(also noted by Anthony),
and possibly a bulge on the following edge. There is still some methane bright cloud sp/p the GRS.
There's a rather strange looking outbreak in the GRS wake(IR,but shows bright in methane)....
It left me with the impression that I was being watched!
In the RGB’s,I was struck by the interesting structure of the NEB as it is seen approaching the preceding
limb at upper right,and the beautiful sweeping festoon systems extending off the NEBs.
I note a small blue cloud immediately preceding the GRS,at the tip of the feature extending off the GRS.
Further SEBs rings can be seen approaching the GRS hollow.
I am pleased to say that I was able to immediately put some of the information shared yesterday by Anthony Wesley,
to good use,and I have to thank him (again),and Chris Go for recently sharing so much of their valuable expertise to developing planetary imagers such as myself.
[Clyde Foster:Centurion,South Africa]
[Jose Luis Pereira :Sao Caetano do Sul/Sao Paulo/Brasil]
南中より前ですが、赤緯が低くこの後もあまり高度は上がりません。
BAの見える経度です。
イオが経過中です。
この後、急に雲が広がりましたが、3：30過ぎから、又晴れました
(Tutomu-Ishibashi Kanagawa-P Japan)
≪神奈川県 相模原市 石橋力≫
3枚目は薄雲越しでしたが、シーイングが安定していたのでほぼ同等な3枚の画像を得ました。
NEB拡幅に伴うのでしょうか、ぐちゃぐちゃした模様がすごいことになっています。
[Kunihiko Suzuki : Yokohama-city Kanagawa-Prefecture Japan]
≪神奈川県 横浜市 鈴木邦彦≫
[Walter Martins : SAO PAULO BRAZIL]
≪奈良県奈良市 荒川 毅≫[Tsuyoshi Arakawa:Nara Japan]
The sky as hazy this morning due to thin clouds. But seeing was literally out of this world!
I only had short run with Jupiter so I can get more data with Saturn.
These images show the upheaval going on in the NEBn.
Dark festoon like features are pushing to the NEBn while the normally red NEB is now fading.
The SEB is still very pale. On the SPR,note the elongated white feature.
The EZ is bright in methane band and has that methane band bright wave.
[Christopher Go : Cebu Philippines]
Hi all,here's an image of Jupiter from this morning through a 750nm
longpass filter. Seeing was very poor,this is 11 separate images over
30 minutes of elapsed time combined to make this result. Io can be seen
moving rapidly through the frame as it finished transit and heads off to
the right.
Oval BA is visible at lower right,also the North Equatorial Belt shows
large amounts of disturbance. Unfortunately there was no way to get any
usable colour images.
[Anthony Wesley,Murrumbateman Australia]
≪アンソニ オーストラリア≫

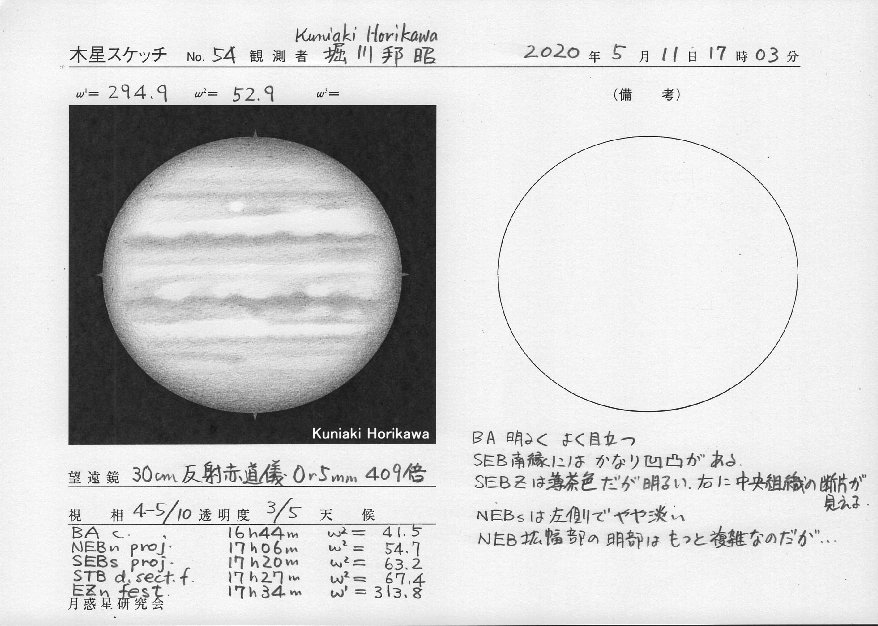

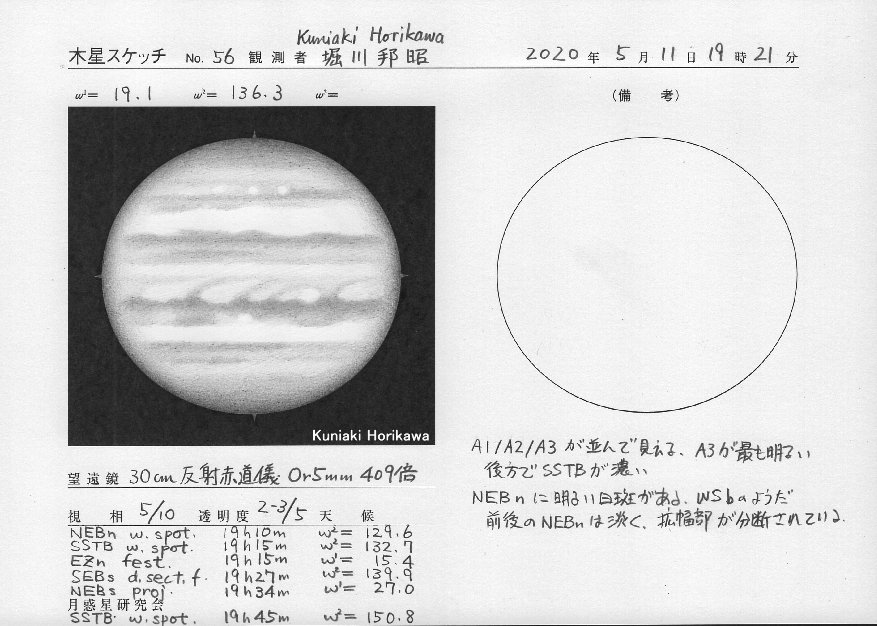

朝方は濃霧という予報だったので、早めに観測を始めましたが、
日の出まで曇ることはなく、調子に乗って3枚取ってしまいました。
シーイングは期待したほどではありませんでしたが、
BAやSSTBのAWOは問題なく見ることができました。
拡幅が進むNEBは、ベルト内部がかなり乱れています。
その中にWSbがクリアに見えていたのが印象的でした。
今朝もほけきよ君が元気に鳴いていました。
≪神奈川県横浜市泉区 堀川邦昭≫[Kuniaki Horikawa:Kanagawa Japan]
≪石川県小松市 大杉忠夫≫[Tadao Ohsugi:Komatsu city Ishikawa pre,Japan]
≪大阪府 枚方市 井上 修≫[Osamu Inoue. Hirakata-shi,Osaka,Japan]
Io and its shadow in transit
[Niall MacNeill : Wattle Flat,NSW,Australia]
撮影途中からシーイングが少し良くなり、８ショットの内、最後の３ショットで処理しました。
≪大阪府堺市 熊森照明≫[Teruaki Kumamori:Ohsaka Japan]
ひさしぶりに気流が落ち着きました。
NEBが非常に複雑で驚きました。
≪静岡県富士宮市 山根 悟≫[Satoru Yamane : Fujinomiya-City Shizuoka-Pref. Japan]
≪三宅 明≫[Akira Miyake:Nasu-Karasuyama,Tochigi,Japan]
気流がよくなく、メラメラしていた。時間とともによくなったが、AWOが
見えるほどではなかった。
NEBの拡幅部が見えたが、大きな変化はないように見える。前方に
向かって、NEBｎが少し濃くなってきたように見える。
--------------------------------------------------------------
≪滋賀県 大津市 安達 誠≫[Makoto Adachi:Siga Japan]
GRS is nicely visible and showing detail in three main sections.
It was a struggle to get anything good detail as there was a quite a bit of high-frequency "vibration" in the atmosphere.
[Cory Schmitz : Johannesburg,South Africa]
