火星 ALPO-Japan Latest

Mars Image 2020/09/13(UT)
荒川 毅,井上 修,中野雄吉,尾崎公一,熊森照明,鶴海敏久,畑中明利
Giancarlo Rizzato,Yaroslav Naryzhniy,Pericles Enache,Mike Hood,Javier Beltran Jovani,James Willinghan,Robert Heffner,Constantin Sprianu,Peter Edwards,Jean-Luc Dauvergne,Zsolt Kereszty,Maximilian Teodorescu,Marc Delcroix,Damian Peach,Vlamir da Silva Junior,Luis Javier Fernandez,Milika-Nicholas,Michael Barbieri,Robert Reitsam,Kevin Quin,Christian Viladrich,Xavier Dupont
G.Rizzato,Y.Naryzhniy,P.Enache,T.Arakawa,O.Inoue,M.Hood,Javier,J.Willinghan,Y.Nakano,K.Ozaki,T.Kumamori,R.Heffner,T.Tsurumi,C.Sprianu,P.Edwards,JL Dauvergne,Z.Kereszty,Max,M.Delcroix,D.Peach,V.da Silva Jr.,L.J.Fernandez,A.Hatanaka,Milika-Nicholas,M.Barbieri,R.Reitsam,K.Quin,C.Viladrich,X.Dupont

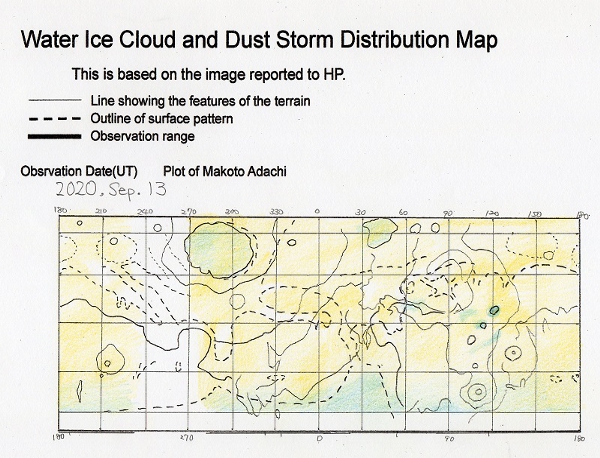

解説(安達)/ Comment by Makoto Adachi
白雲の活動が緩やかに広がってきている。盆地はすでに始まっているが、その他の地域でもかすかにその傾向を見ることができる。
青画像の重要性が増してきた。SPCはかなり小さくなってきた。しかし極域の寒冷な温度のため、極付近が淡く白いベールに被われれて
いる様子が、ここしばらく続いている。SPCが地球のほうを向いている位置で、極冠や極冠の後ろを観察すると、その傾向が見えてくる。
井上氏のproceesed imageと熊森氏の画像は、その様子を示している。
Mike Hood氏の青画像では、午前半球が広く淡い霧に覆われている様子を記録している。肉眼で観測しても、午前半球はリムに近く
なるほど、模様のコントラストは落ちて見える。これは、霧の影響を受けているからだろう。3色のカラー合成用のRGBフィルターを使
うと、微妙な雲の様子は記録されにくい。画像処理の過程で消えてしまうことがよくある。しかし、処理がうまくいくと、午前半球の
霧は見えやすくなるようだ。
James Willinghan氏の青画像は、ターミネーターに差し掛かったArsia Silva Mons (W120,-3)を記録している。Jean-Luc Dauvergne氏
はArsia Monsを午前半球で撮影している。この位置で450nm以下のフィルターを使えば、リムに向かって伸びた雲が記録できる
はずである。今シーズンは、なかなかこの位置での青画像がなく残念である。
Marc Delcroix氏はTharsisの火山群の青画像を報告してきた。地表の模様が漏れ出ていない画像で、雲(霧)が白く記録されている
優秀な画像である。それによれば、Arsia Monsの東にあるNoctis Labyrinthus (90W~135W,-10)にも雲が見られる。地形図と
照合すると、9000m以上の地域と見事に重なる。これから、月日が進んで、どの高さまで下りてくるか、興味深い。
Mare Acidarium付近の白雲の活動は非常に活発である。
リムの色が部分的に変わっている様子が多くの観測者によって記録された。明瞭に記録したのは,荒川,熊森,Peter Edwars,
Luis Javier Fernandezの4人である。これはダストベールの広がった地域に見られる。Argyre (30W,-50 )の北付近とOlympus Mons
(135W,+25)の北、Argyreの西の地域である。この付近は、ここしばらくダスティーな状態が続いている。Peter Edwars,Jean-Luc Dauvergne,Maximilian Teodorescu等がその様子をよく記録している。

White clouds activity is slowly expanding. The basin has already begun,but the trend can be seen faintly in other areas.
The importance of blue images has increased. The SPC is getting pretty small. However,due to the cold temperature in
the polar region,the vicinity of the polar region has been covered with a pale white veil for some time. If you look at the polar cap or
behind the polar cap with the SPC facing the earth,you can see that tendency.  Inoue's proceeded image and  Kumamori's
image show this.
Mike Hood's blue image shows the morning hemisphere covered in wide,pale fog. Even when observed with the naked eye,
the contrast of the pattern appears to decrease as the morning hemisphere approaches the limb. This is probably because it is a
ffected by fog. When using an RGB filter for color composition of three colors,it is difficult to record subtle cloud conditions.
It often disappears in the process of image processing. However,if successful,the fog in the morning hemisphere seems to be easier to see.
James Willinghan's blue image records the Arsia Silva Mons (W120,-3) approaching the terminator. Jean-Luc Dauvergne is filming
Arsia Mons in the morning hemisphere. If you use a filter of 450 nm or less at this position,you should be able to record clouds extending
toward the limb. It's a pity that there isn't a blue image at this position this season.
Marc Delcroix has reported a blue image of the Tharsis volcanic groups. It is an excellent image in which the pattern on
the ground surface is not leaked and the clouds (fog) are recorded in white. According to it,clouds can also be seen in Noctis Labyrinthus
(90W ~ 135W,-10) east of Arsia Mons. When compared with the topographic map,it overlaps with the area of 9000m or more. It will be
interesting to see how high the moon will go down from now on.
The activity of the white clouds near Mare Acidarium is very active.
Many observers recorded a partial change
in limb color. The four people who clearly recorded were Arakawa,Kumamori,Peter Edwars,and Luis Javier Fernandez. This is
found in areas where dust veils are widespread. Near the north of Argyre (30W,-50),north of Olympus Mons (135W,+25),and
west of Argyre. This area has been in a dusty state for some time. Peter Edwars,Jean-Luc Dauvergne,Maximilian Teodorescu and
others have documented this well.

(by 22 observations; reported by Makoto Adachi)

-------------------------------------------------------------------------------------
Giancarlo Rizzato

[Giancarlo Rizzato : Marano Vicentino (Vicenza) ITALY]

Yaroslav Naryzhniy
2020/09/13 00:55(UT),400mm Dall-Kirkham,ZWO 290MM,Seeing 5/10 Trans 6/10

[Yaroslav Naryzhniy : Ukraine,Kiev region]

Pericles Enache

[Pericles Enache,Sao Paulo,Brazil]

Tsuyoshi Arakawa
雲間から短時間撮影できましたが、風が強く、シーイングも今ひとつでした。

≪奈良県奈良市  荒川 毅≫[Tsuyoshi Arakawa:Nara Japan]

Osamu Inoue
雲の切れ間からの撮影で、何度も雲の通過に邪魔されましたが、なんとか1セット撮りました。
シーイングは最初は酷く、後になるほどマシにはなりましたが、夏のシーイングには戻りませんでした。

≪大阪府  枚方市  井上  修≫[Osamu Inoue. Hirakata-shi,Osaka,Japan]

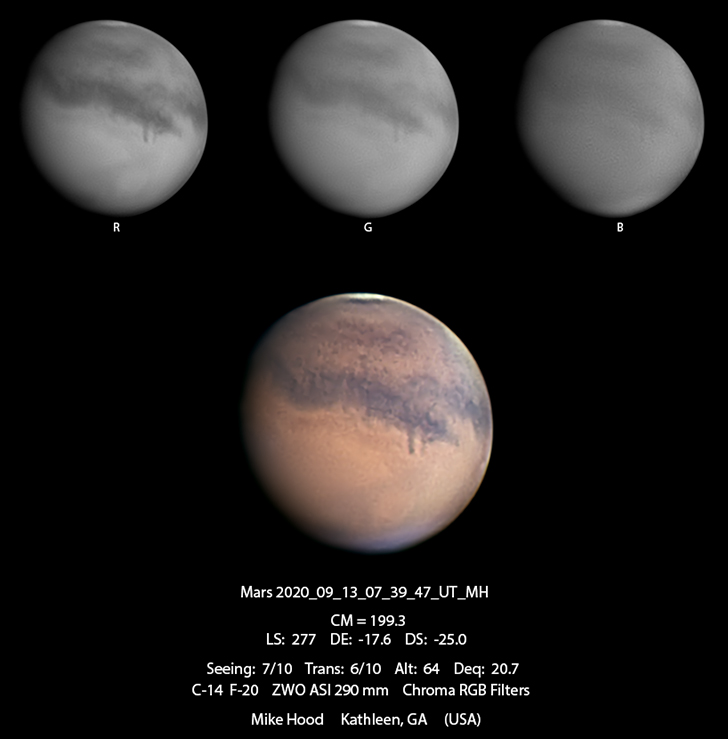

Mike Hood
This image features Mare Cimmerium,Elysium,and clouds from the North to Southern hemisphere.
Gale Crater is also a dark round spot located across from Cyclopia.

[Mike Hood : Kathleen Georgia,U.S.A.]

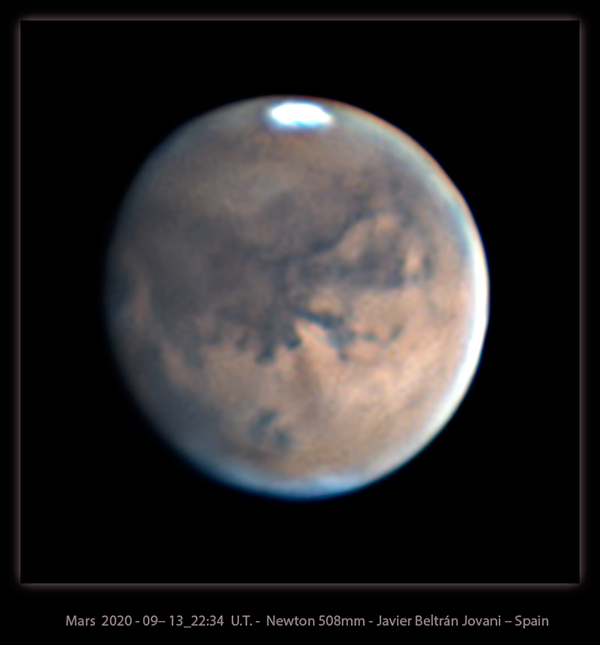

Javier Beltran Jovani

[Javier Beltran Jovani:Castellon-Spain]

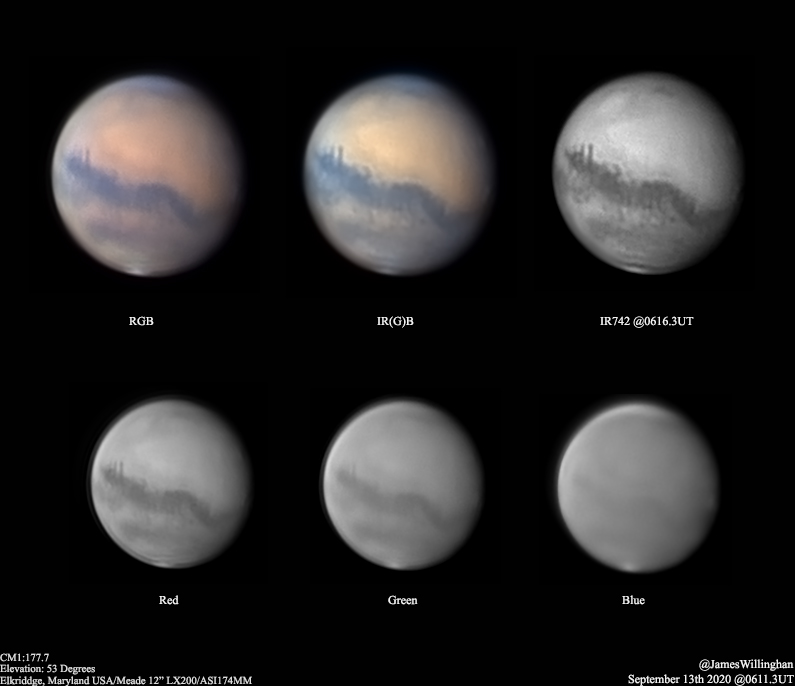

James Willinghan
Seeing was about average with above average transparency.

[James Willinghan: Elkridge Maryland U.S.A]

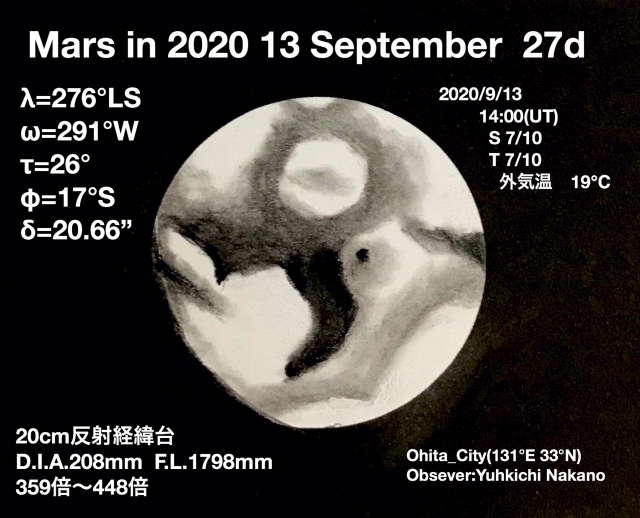

Yuukichi Nakano
北極部から北西部にかけて広い範囲で明るく白雲があるような気がする。
ヘッラスは明るい。シュルティス.マイヨルが南中で濃く見えてる。その南に斑点(グレースの泉)が確認できた。

≪大分県大分市 中野雄吉≫
[Yuukichi Nakano : Ohita-Ohoita prefecture Japan]

Kimikazu Ozaki
上空に強く風が吹いているようで透明度は良好だが  seeing があまり良くなく・・・・。

[Ki.Ozaki,Sobue Inazawa Aichi JAPAN]
≪愛知県稲沢市祖父江町  尾崎公一≫

Teruaki Kumamori
晴れそうで晴れなくて、晴れたのがベランダからのリミットを超えてからでした。
カラーカメラのみの画像となり、尚かつ上階のベランダにけられているので口径の全力は出ていません。

≪大阪府堺市 熊森照明≫[Teruaki Kumamori:Ohsaka Japan]

Robert Heffner
Here is an LRGB image with the 685nm filter and color data from the 224MC.
N. polar clouds visible as well as white clouds on preceding limb (confirmed visually with B filter in the telescope).

[Robert Heffner:Osaka,Japan]

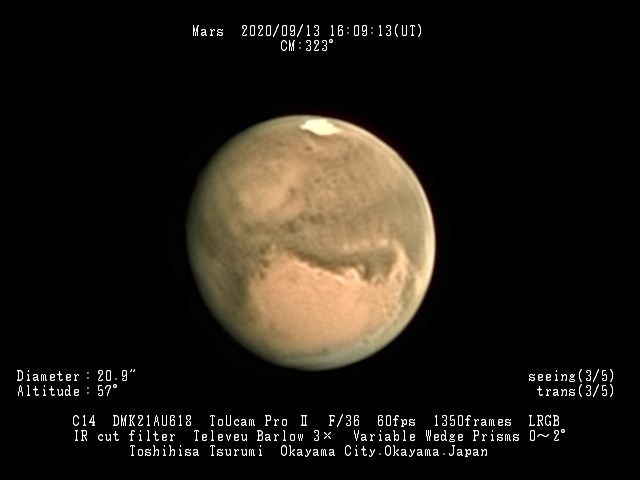

Toshihisa Tsurumi

≪岡山県岡山市  鶴海敏久≫[Toshihisa Tsurumi:Okayama-City Okayama-Prefecture Japan]

Constantin Sprianu
This is Mars in below average seeing,one month before opposition.Lucky 13...

[Constantin Sprianu,Otopeni,Romania]

Peter Edwards
A lovely view of Mars last night with Valles Marineris near CM and good views of Solis Lacus region and Chryse.
South polar cap melting in an irregular shape.

[Peter Edwars: West Sussex United Kingdom]

Jean-Luc Dauvergne

[Jean-Luc Dauvergne:Paris France]

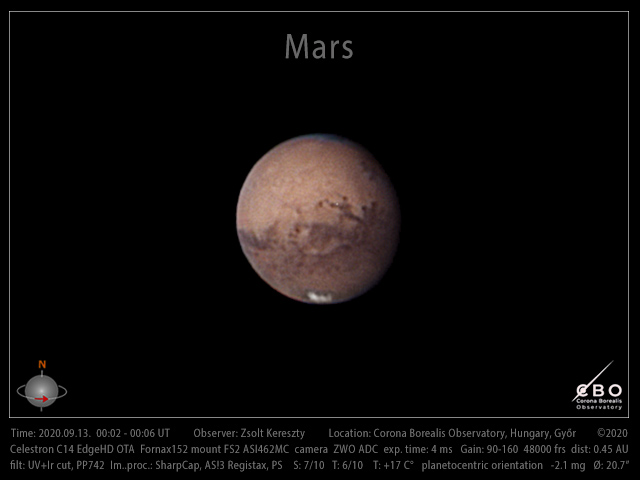

Zsolt Kereszty

[Zsolt Kereszty : Corona Borealis Observatory,Hungary,Gyor]

Maximilian Teodorescu
In fair seeing. The north polar hood is well seen here,with some distinct details.

[Maximilian Teodorescu:Dumitrana,Romania]

Marc Delcroix
I had very good conditions that sunday morning,which allowed me to get probably my most detailed colored Mars.
Valles Marineris is setting on the limb,and the view on Tharsis dome is superb,with Olympus Mons caldera (and maybe the volcano shadow?),
and the other volcanoes. Blue images show the boreal polar hood,orographic cloouds on Arsia and Pavonis Mons and on other reliefs,
in Nectaris Fossea south of Valles Marineris. It's so good to get good resolution on a planet high in the sky,for a change ... :)



[Marc Delcroix  Tournefeuille,France]

Damian Peach
Very good seeing again on the 13th. Some detailed B filter images were possible. This was the final session with the Mewlon 250.


[Damian Peach: Loudwater,Buckinghamshire,United Kingdom]

Vlamir da Silva Junior

[Vlamir da Silva Junior : Sao Paulo,Brazil]

Luis Javier Fernandez

[Luis Javier Fernandez:Les Fonts Barcelona-Spain]

Akitoshi Hatanaka

≪三重県熊野市  畑中明利≫[Akitoshi Hatanaka:Kumano Mie Japan]

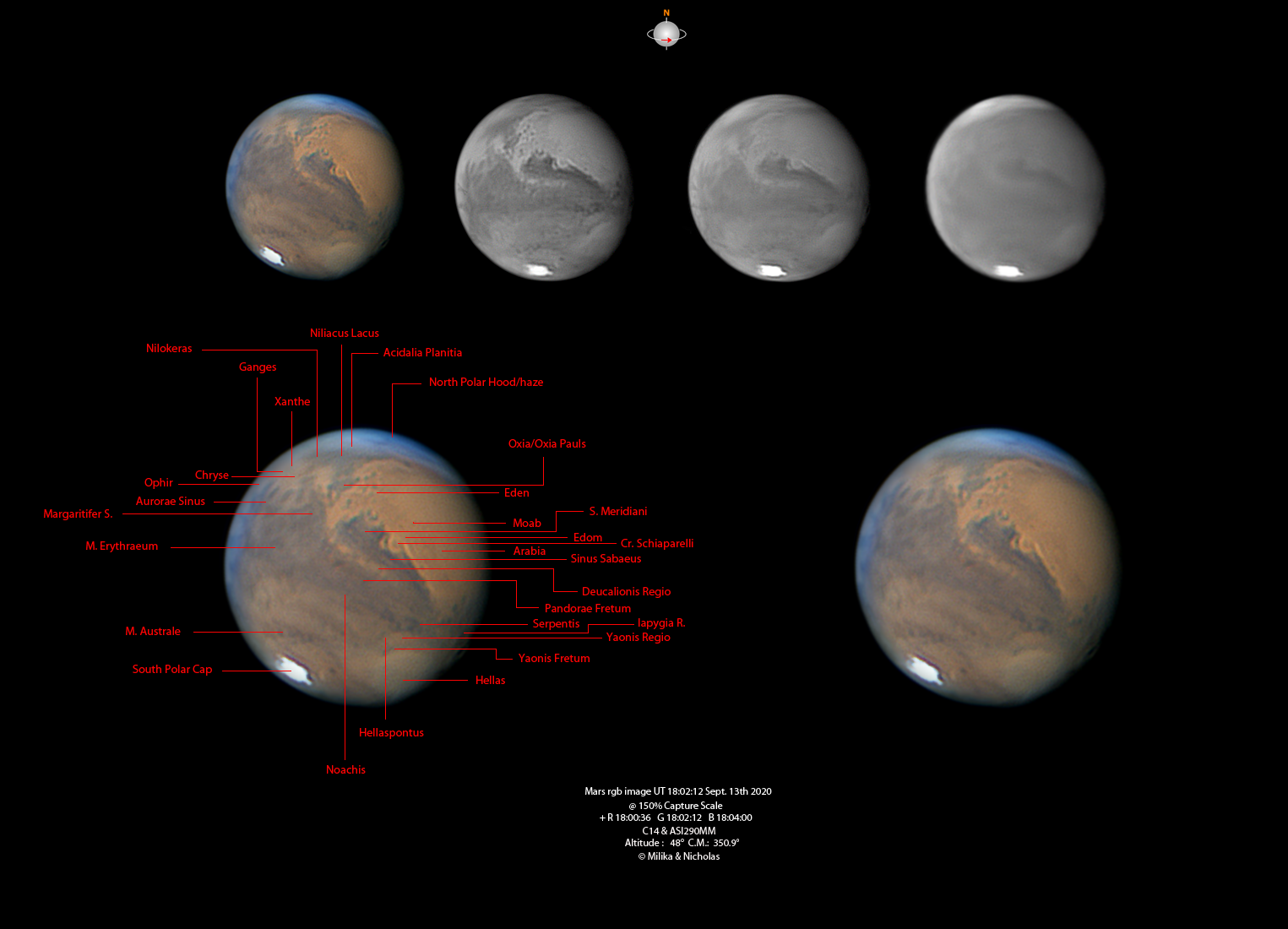

Milika-Nicholas
Here is a Mars image from September 13th at 150% capture scale,as well as the individual filter images for the aforesaid,these at capture scale.
For 48ー which is almost the maximum height of Mars here,the seeing & resultant images were very good.
I have also included an annotated disk with features/regions,for the many amateurs who find relating to the typical projection-type maps difficult
when ascertaining exactly what they have captured themselves in their own images - feedback has already convinced me that this is a worthwhile exercise:
I intend to not only revise this map over this 2020 apparition should any anomalies be brought to my attention,
but also (if we are lucky with the seeing) to complete several more to span the entire Mars' global vista.

[Milika-Nicholas:Adelaide,South Australia]

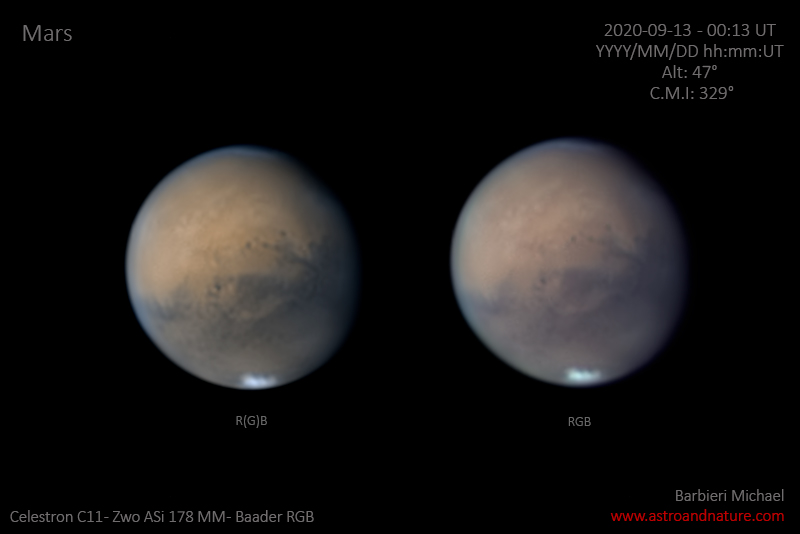

Michael Barbieri
Celestron C11 - Asi 178 MM - Baader RGB - Barlow 2x,Seeing 6/10 Trans 9/10

[Michael Barbieri : Villafranca di Verona,Italy]

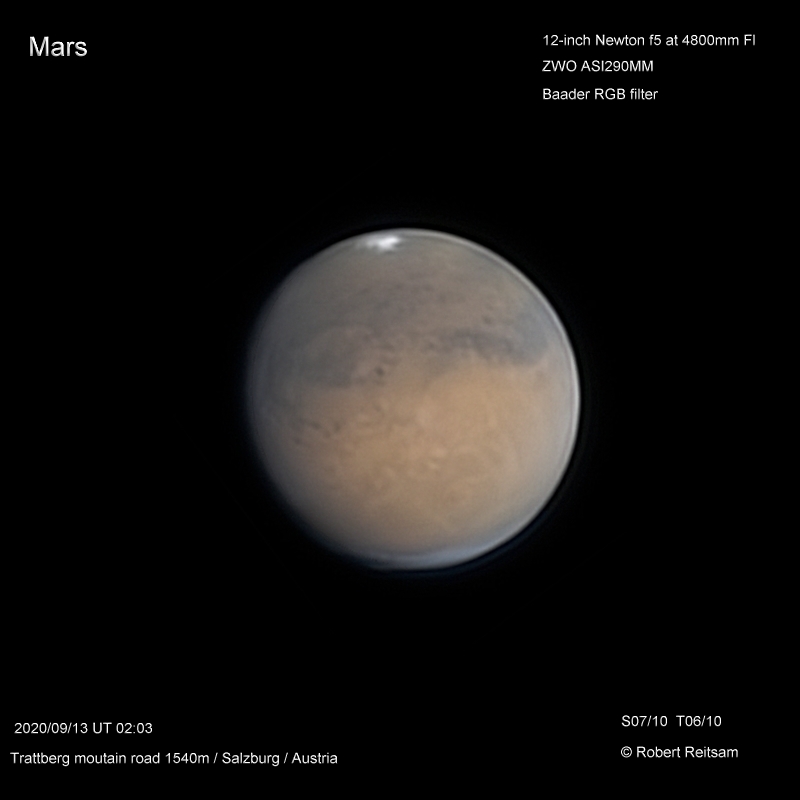

Robert Reitsam

[Robert Reitsam:Berchtesgaden,Germany]

Kevin Quin
280mm SCT : ASI224 Seeing 6/10 Trans 7/10

[Kevin Quin:Vienna,VA,USA]

Christian Viladrich


[Christian Viladrich : Jongieux,France]

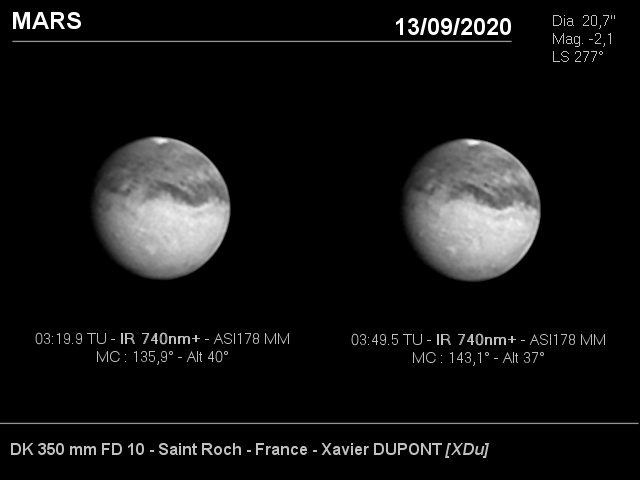

Xavier Dupont

[Xavier Dupont,Saint-Roch France]
