Jupiter Image 2010/06/05(UT)
阿久津富夫,池村俊彦,永長英夫,尾崎公一
Paul G. Abel,Torsten Hansen,Emil Kraaikamp,Christophe Pellier,Jean Jacques Poupeau,Kowollik Silvia,Marc Delcroix,Daniel Chang,George Tarsoudis
P.Abel,T.Hansen,T.Akutsu,E.Kraaikamp,T.Ikemura,Christophe.P,J.J.Poupeau,K.Silvia,Delcroix,D.Chang,G.Tarsoudis,H.Einaga,K.Ozaki

Paul G. Abel(203mm reflector)
Jupiter observation,5th June 2010,with Andrew Button and Hugh Sasse.

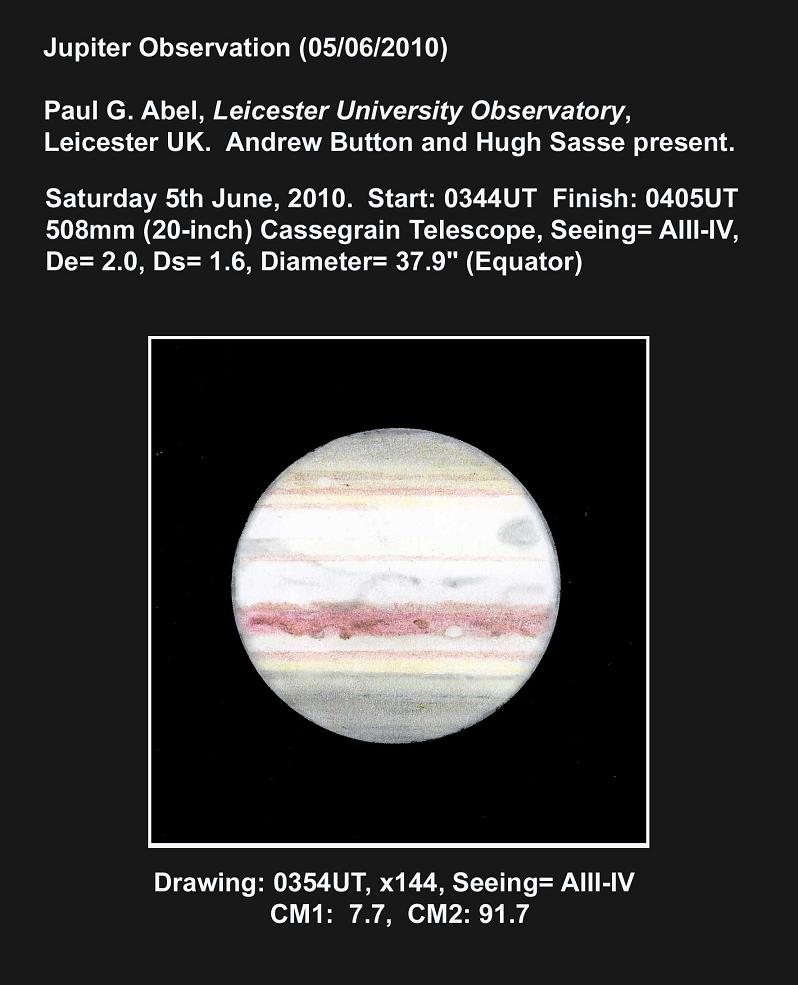

A drawing of Jupiter I made this morning using the University of Leicester's 20" PlaneWave Cassegrain telescope f/6.8). Alas,the impact site was no longer visible but both Andrew Button and myself were able to trace a small part of the SEB (presumably the SEB(N)?) and we both agreed the NEB appeared to be very turbulent and a strong brownish-red colour. A fairly bright white oval was present in the NEBn. The GRS is just on the fol. limb and light grayish in colour. Some interesting festoons present in the EZ. Hugh Sasse (who is partially sighted) was able to make out the polar shadings.
The observation was made in a fairly bright sky and I deemed it to bright to make any further detailed observations by 0404UT. All agreed,so we stopped observations at 0405UT.

[Paul G. Abel:Leicester:United Kingdom]

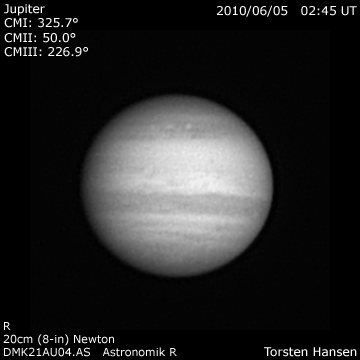

Torsten Hansen(200mm Newtonian)
In the R-channel image the impact region could be visible at the very left edge of the disc. In the animation this image is at the first position,the colour images refer to the last position there.



[Torsten Hansen:Boos Germany]

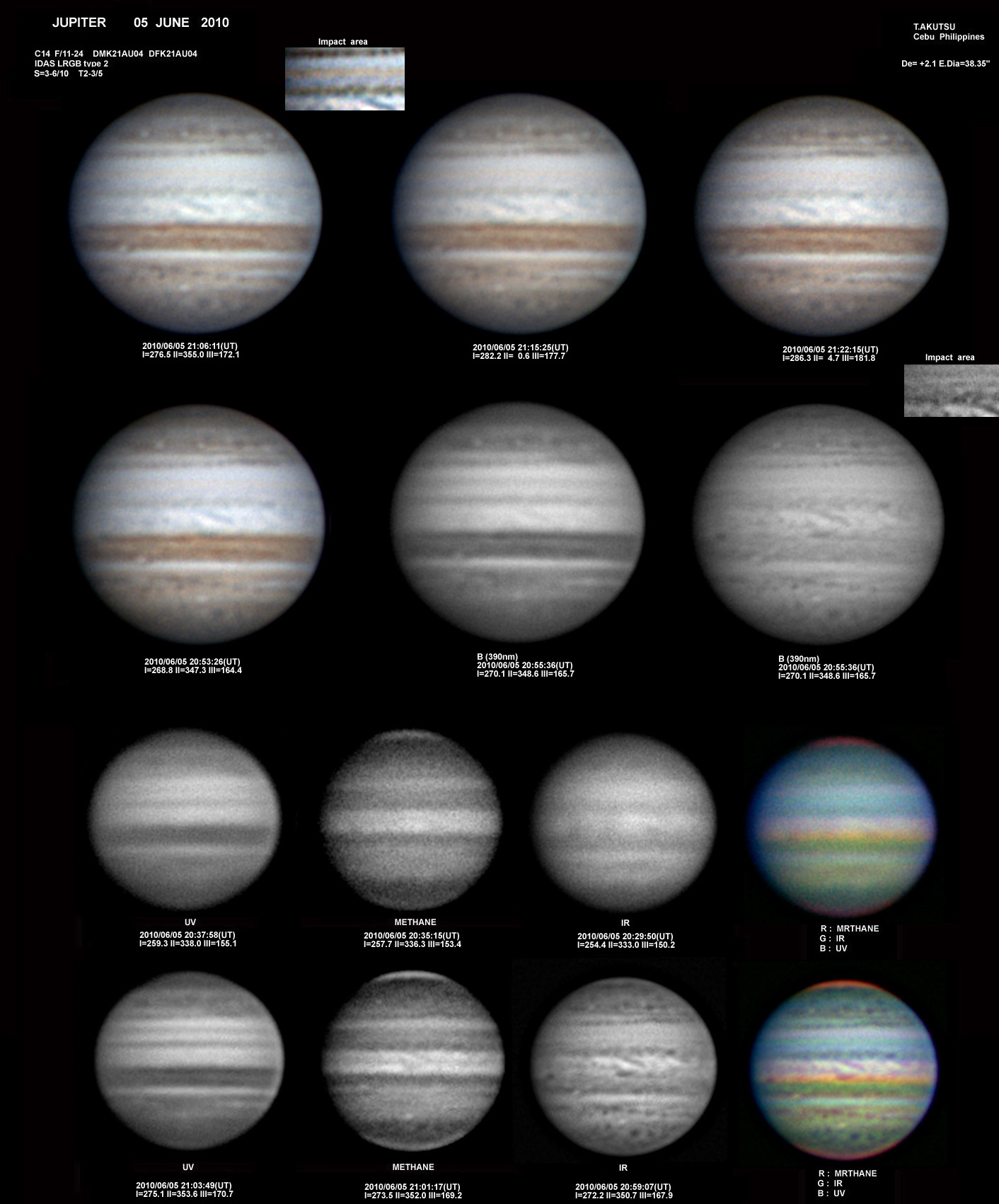

Tomio Akutsu (355mmSC C14)
  今朝(6月6日)の木星です。
衝突後の画像ですが、衝突痕は写っていません。
メタンバンドでも変化がないです。

≪Cebu PHILLIPINES  阿久津富夫≫

Emil Kraaikamp(254mm Newton)
2010/06/05 Animation in IR: 06:09 - 06:43 UTC    RIr-RGB: 05:02 UTC
254mm F/4.5 Newtonian
DMK21AU04 with ICX618ALA modification
Astronomik RGB and >742nm IR-pass filter
Orion Shorty 2x + Extension tube (+- F/18)

Jupiter in RIr-RGB (Ir + R luminance). 32 degrees altitude.
Animation in infrared light (>742nm). 35 degrees altitude.
All images shot in full daylight.



[Emil Kraaikamp:Neighbourhood of Ruinerwold]

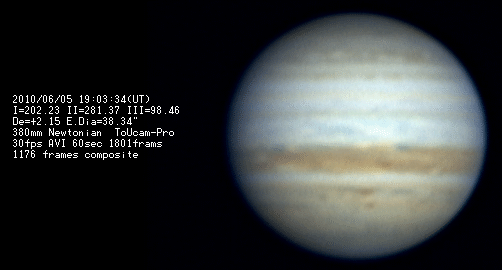

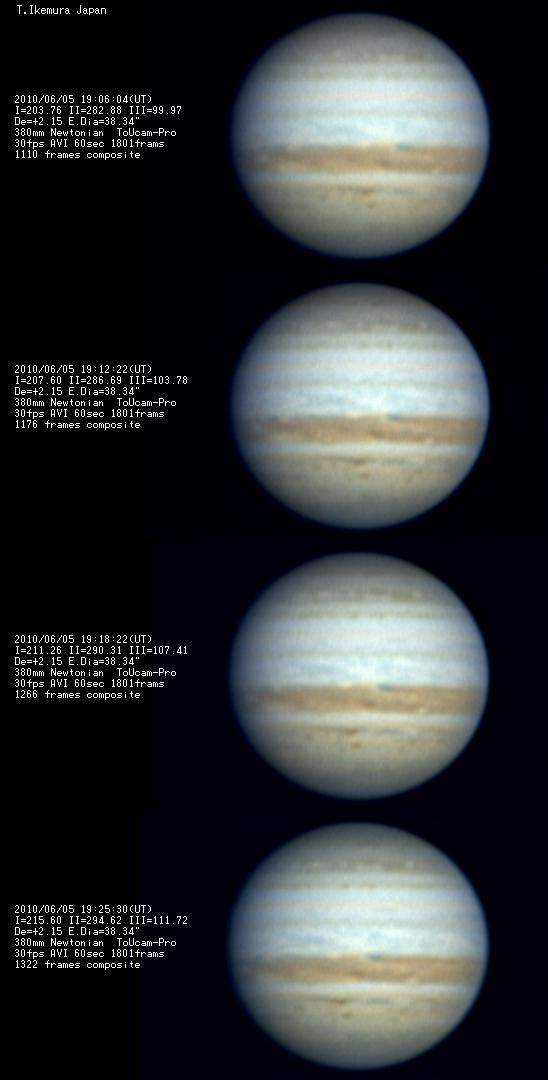

Toshihiko Ikemura (380mm Newton)



Use is free.
利用自由
[T.Ikemura Nagoya Aichi JAPAN]
≪愛知県名古屋市  池村俊彦≫

Christophe Pellier (250mm Cassegrain)


[Christophe Pellier Bruz City,France]

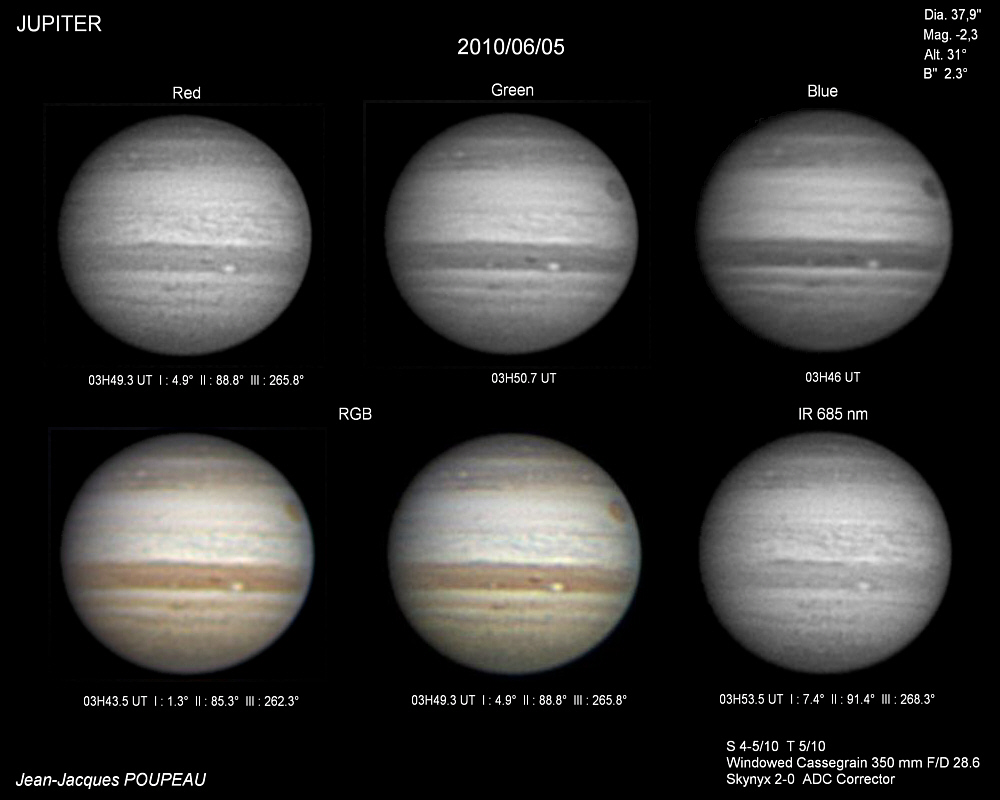

Jean Jacques Poupeau (350mm Cassegrain)
The transparency was average.
The seeing was fair.

[Jean Jacques Poupeau : Pecqueuse France]

Silvia Kowollik (800mm Cassegrain)
Daytime Jupiter with 80 cm Cassegrain at Observatory Zollern-Alb
(Germany) and DMK 21AF04.AS under excellent conditions...

[Silvia Kowollik  Ludwigsburg,Germany]

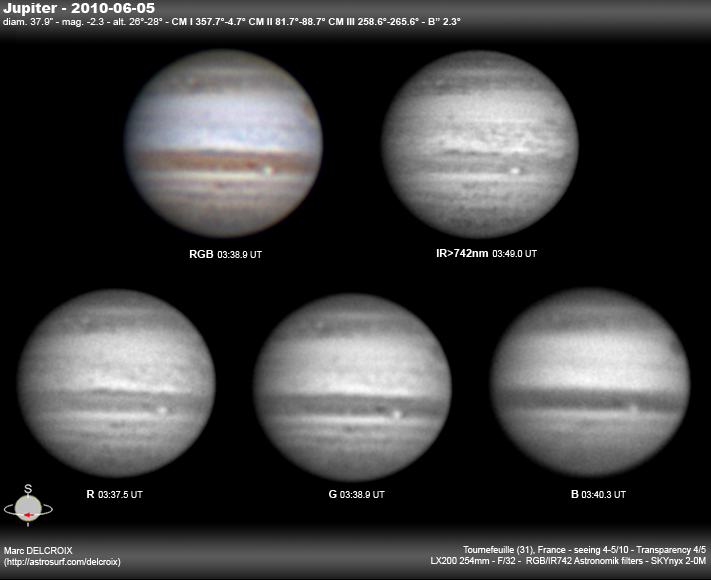

Marc Delcroix (254mm SC)
average conditions

[Marc Delcroix Tournefeuille,France]
Daniel Chang (180mm Mewlon)(254mm SCT)

[Daniel Chang : Hong Kong]
>

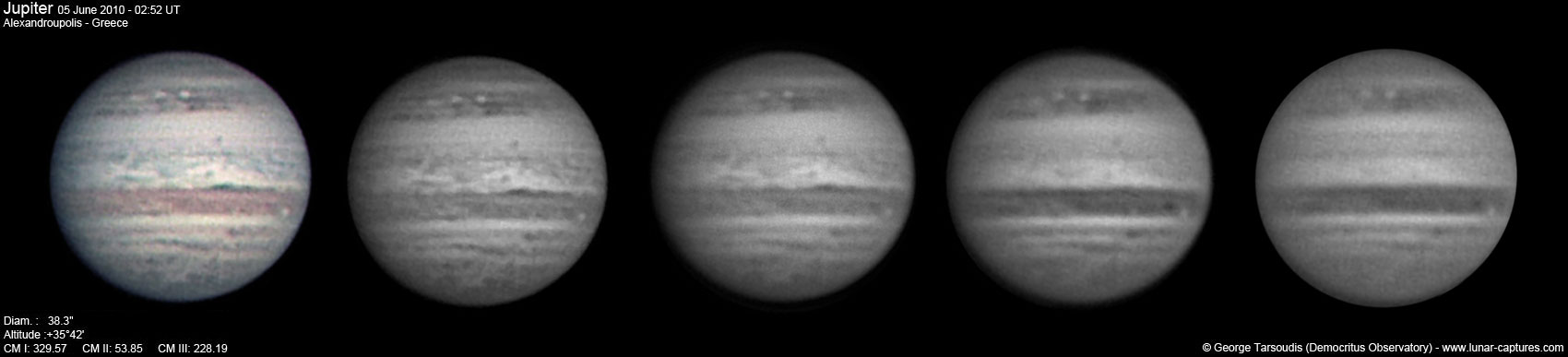

George Tarsoudis ( 250mm Newtonian )
Telescope 10 inch  @f/6.3,Unibrain fire-i 785,barlow 3X,Filters L-RGB,Seeing & Transparency : is Poor

[George Tarsoudis,Alexandroupolis of Greece]
《ターソウディス  ギリシャ アレクサンドロポリス》

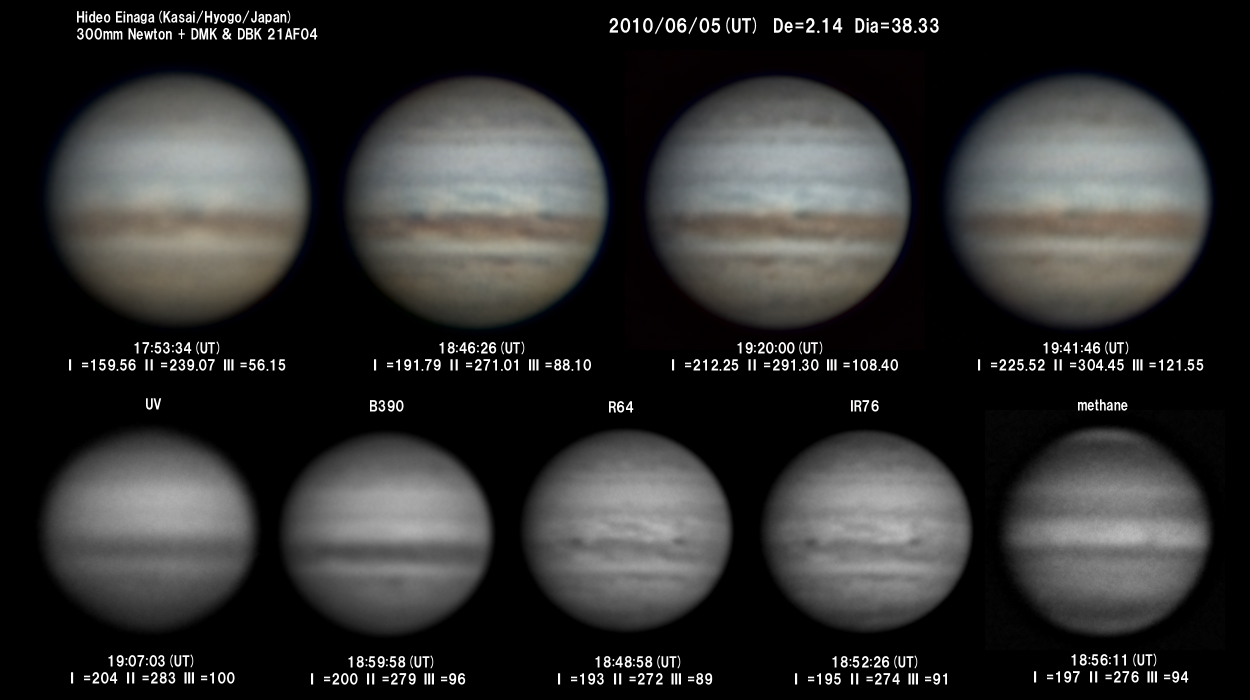

Hideo Einaga (300mm Newton)

[Hideo Einaga Kasai-City Hyogo-Prefecture Japan]
≪兵庫県  加西  永長英夫≫

Kimikazu Ozaki(420mm Rfd)

[Ki.Ozaki,Sobue Inazawa Aichi JAPAN]
≪愛知県稲沢市祖父江町  尾崎公一≫
