木星 ALPO-Japan Latest

Jupiter Image 2012/09/16(UT)
佐々木一男,岩政隆一,内藤峰夫,小石川正弘,大友武彦,阿久津富夫
Xavier Dupont,Jean Jacques Poupeau,Javier Beltran Jovani,Alessandro Bianconi,Antonio Lasala Garcia,Clif Ashcraft,Alfredo Vidal,Christopher Go,Gino Van Hauwermeiren,Christophe Pellier,Michel Jacquesson,Pascal Bayle,Oscar Canales Moreno,Flavius Isac,Torsten Hansen
X.Dupont,J.J.Poupeau,Javier,A.Bianconi,A.Lasala,K.Sasaki,R.Iwamasa,C.Ashcraft,A.Vidal,M.Naitou,Christopher Go,M.Koishikawa,T.Ootomo,T.Akutsu,Gino,Christophe.P,Michel.J,Pascal.B,Oscar,F.Isac,T.Hansen

Xavier Dupont (180mm Newtonian)

[Xavier Dupont,Saint-Roch France]

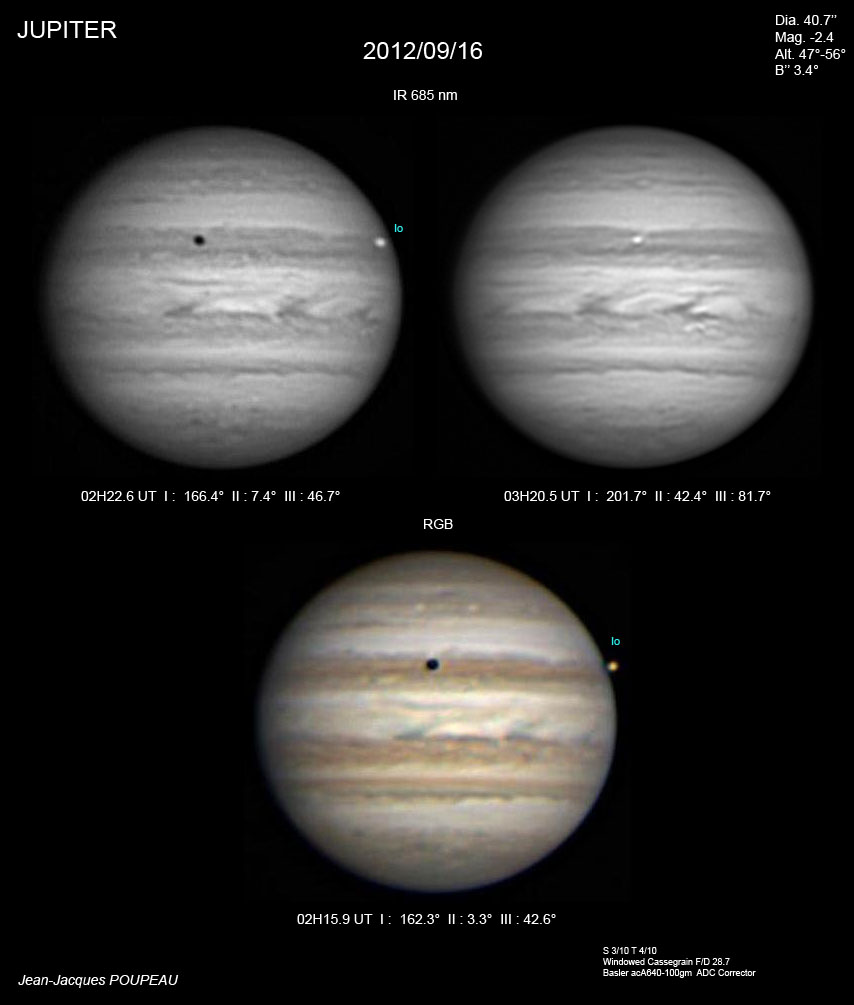

Jean Jacques Poupeau (356mm SC)
The transparency was average.
The seeing was bad.

[Jean Jacques Poupeau : Pecqueuse France]

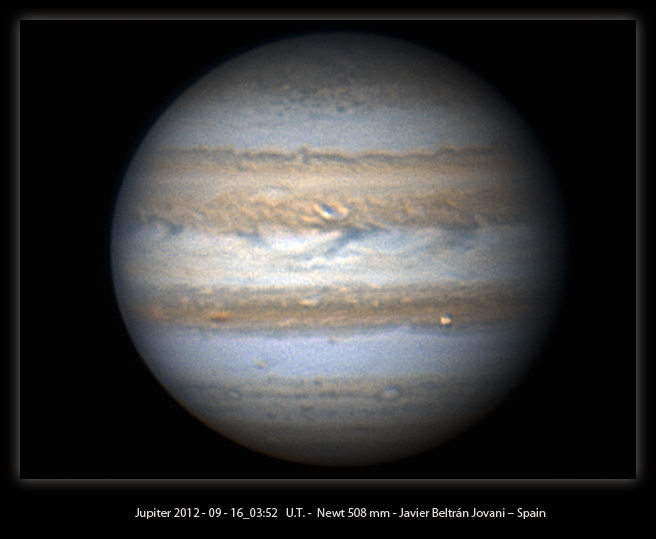

Javier Beltran Jovani(356mm SC )











[Javier Beltran Jovani:Castellon-Spain]

Alessandro Bianconi (356mm SC)

[Alessandro Bianconi:Perdasdefogu ITALY]

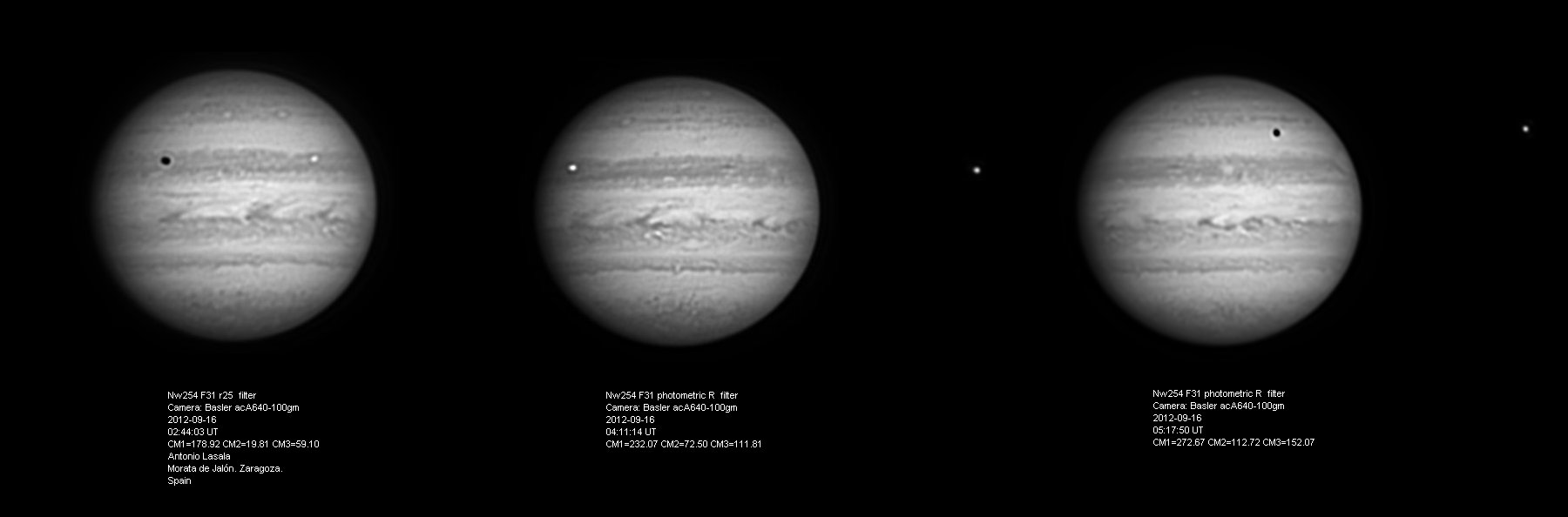

Antonio Lasala (254mm Newtonian)




[Antonio Lasala :Morata de Jalon:Spain]

Kazuo Sasaki(400mm Casegrain■203mm SC)

相変わらず気流が安定せず細部が表現出来ません。

[K.Sasaki:Ohsaki-City Miyagi-Prefecture Japan]
≪宮城県大崎市  佐々木一男≫

Ryuichi Iwamasa(356mm SC)




≪神奈川県横浜市  岩政隆一  ≫[Ryuichi Iwamasa:Kanagawa:Japan]

Clif Ashcraft(184mm Schupmann)
Seeing was below average and transparency poor when I attempted to image Jupiter this morning at 930 UT.
The attached image was prepared from a 60 second video was taken through a brief break in the clouds.
I used a Flea3 color camera coupled to the 7.25" Schupmann medial with a 3x Barlow lens.
This combination gives an equivalent focal ratio of f/46.2.
The video was preprocessed in PIPP then Registax6.
No other usable video was obtained.
[Clif Ashcraft:New Jersey:USA]

Alfredo Vidal(280mm SC)

[Alfredo Vidal:Hospitalet Llobregat:Catalonia (Spain)]

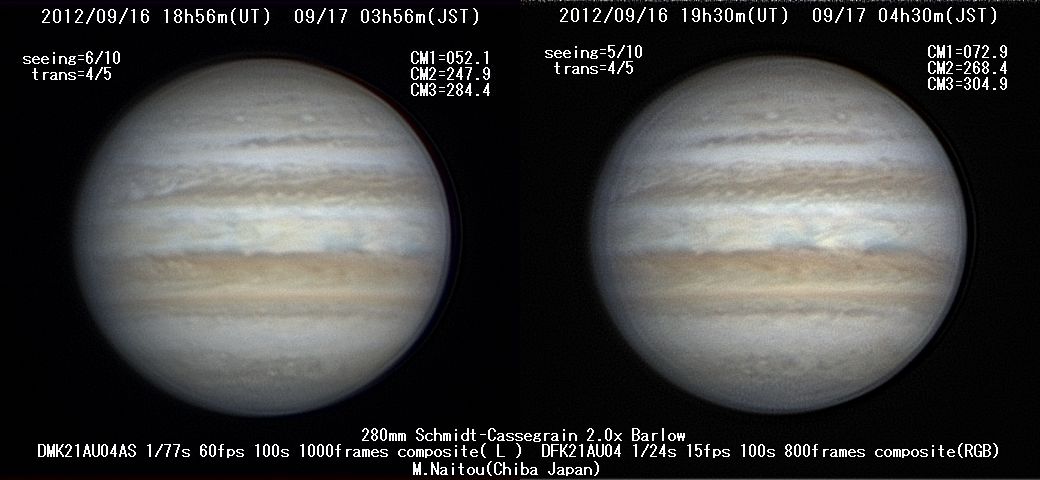

Mineo Naitou(280mm SC)

[内藤峰夫:千葉県 流山市][M.Naitou:Chiba Japan]

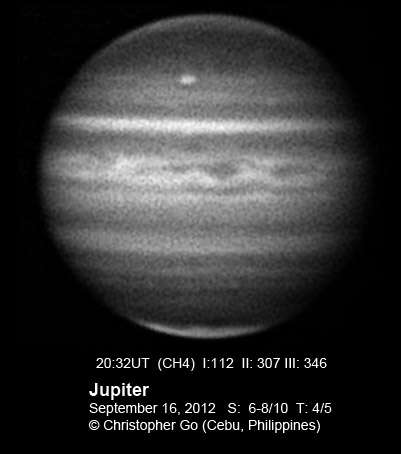

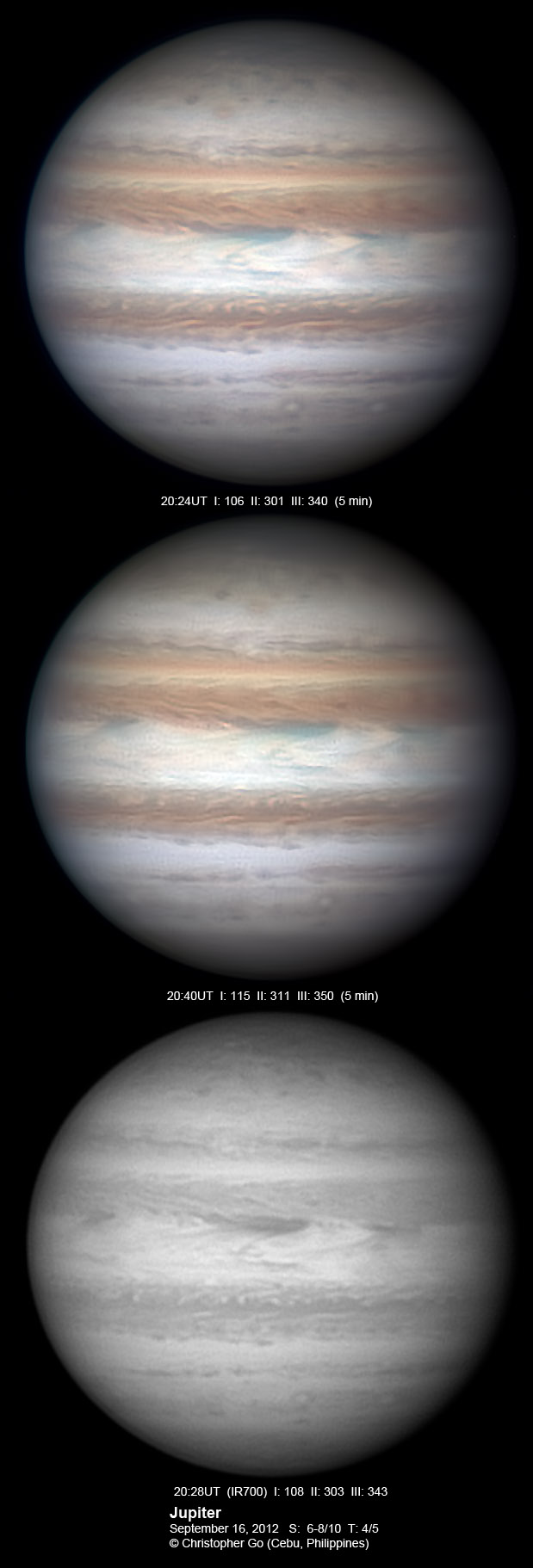

Christopher Go (355mm SC)

The NNTZ LRS is prominent in these images.
It is bright in Mehtane band.
Note the strange feature at the NTBn.
This feature seem to be creating the dark streaks north of the NTB!! is this an outbreak or a cyclone?

The NEB is going back to normal.
The SEB has a lot of dark streaks possible due to the interaction of the outbreak with the GRS.



[Christopher Go : Cebu Philippines]
Masahiro Koishikawa(310mm Newtonian)
GRS右の上の暗斑は、B画像では永続白斑とほぼ同じくらいの大きさで写りります。

≪宮城県仙台市  小石川正弘≫[Masahiro Koishikawa:Miyagi Japan]

Takehiko.Ootomo(280mm SC)

≪宮城県仙台市  大友武彦≫[T.Ootomo Sendai-City Miyagi Japan]

Tomio Akutsu (355mm SC)
ひさびさに気流が良く、子細な木星面が見えています。

メタンバンドでは明るいメタンブライト(NNTB)があります。


≪Cebu PHILLIPINES  阿久津富夫≫

Gino Van Hauwermeiren(102mm refractor)
2012/09/12 05h05m UT
CMII=225 Dia=40.6" Alt.=61
Celestron 4SE (10cm Maksutov)
Imaging Source DBK21AU618.AS camera
Observation conditions
Seeing 7/10  (Transparence)Trans 6/10

[Gino Van Hauwermeiren Oud-Turnhout Belgium]

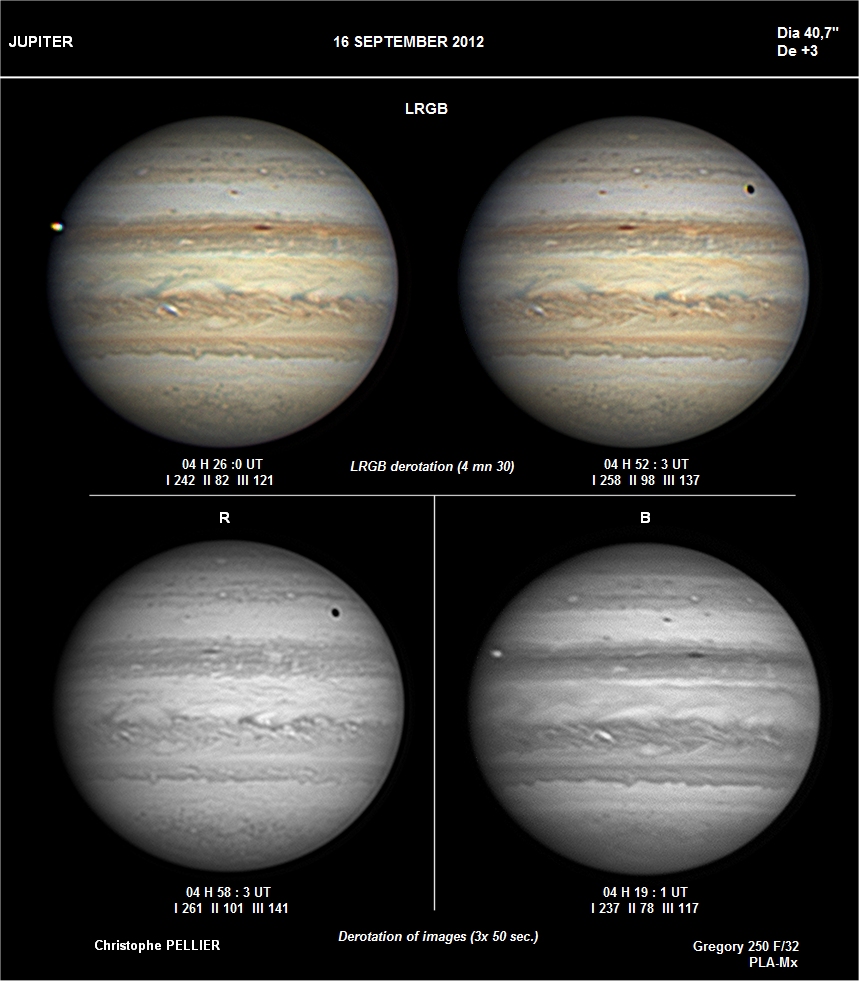

Christophe Pellier (250mm Cassegrain)
Here are some Jupiter images taken under a seeing close to perfection :

Note how dark is Io in ultraviolet ! Grischa Hahn gave the trick to avoid limb artefact when doing video
derotation : when measuring the reference image,under "adjustment"
choose an "LD-value" inferior to 1 :)


[Christophe Pellier Bruz City,France]
Michel Jacquesson (203mm SC)

[Michel Jacquesson : Sevigny-Waleppe (Ardennes) France]

(355mm SC)

[Pascal Bayle:Lavergne,France]

Oscar Canales Moreno(280mm SC)

[Oscar Canales Moreno:Zaragoza-Spain]

Flavius Isac(254mm SC)
Equipment: 254mm Schmidt-Cassegrain (Meade LX200R 10") + 2x barlow Baader Zeiss Abbe
EFL: 8600mm (FD 34)
Camera: IDS UEye EV76C661 Ruby
Filters: RGB Astronomik
Seeing: good,transparency good
Site: Athis-Mons (France)



2012/09/16 03:39:00(UT)
Equipment: 254mm Schmidt-Cassegrain (Meade LX200R 10") + 2x barlow Baader Zeiss Abbe
EFL: 7000mm (FD 27.5)
Camera: IDS UEye EV76C661 Ruby
Filters: RGB Astronomik
Seeing: good,transparency good


[Flavius Isac:Athis-Mons:France]

Torsten Hansen(280mm SC)
Under very good seeing! Io in transit, captured almost entirely.

[Torsten Hansen:Boos Germany]
