Jupiter Image 2017/03/24(UT)
堀川邦昭,山崎明宏,長瀬雅明
Paul G. Abel,David Gray,Christopher Go,Tiziano Olivetti,Luigi Morrone,Manos Kardasis
P.Abel,D.Gray,Christopher Go,K.Horikawa,A.Yamazaki,M.Nagase,T.Olivetti,L.Morrone,Kardasis
Paul G. Abel(508mm Dall-Kirkham) |
Please fins attached a Jupiter drawing I made last night.
Alas seeing conditions were really rather poor so there was not much in the way of fine detail.
The main thing of interest were the two main equatorial belts which even in poor conditions showed quite a lot of activity.
I wouldn't want to put a lot of reliance on the drawing given the conditions,ditto the intensity estimates made before that.
Turbulence in the SEB rather reminiscent of the structures following the GRS,although the GRS is no where near this region.
[Paul G. Abel:Leicester:United Kingdom]
David Gray (415mm Dall-Kirkham) |
![](j170324b1.jpg)
[David Gray: Spennymoor Co. Durham,United Kingdom]
Christopher Go (355mm SC) |
Condition was perfect today. Unfortunately,it was cut short by clouds.
These are stunning images of Jupiter with the Great Red Spot which is well resolved.
Note the complex wake following the GRS. In the CH4 image,there is a curious bright spot on the SEBn.
This is the first time I have seen an outbreak in that area. Note the STB Ghost is making a pass below the GRS!
Note the ovals on the NEBn. There is a curious oval with a red core on the NTrZ! This oval is marginally bright in CH4.
The NNTZ LRS is also very distinct and bright in CH4
[Christopher Go : Cebu Philippines]

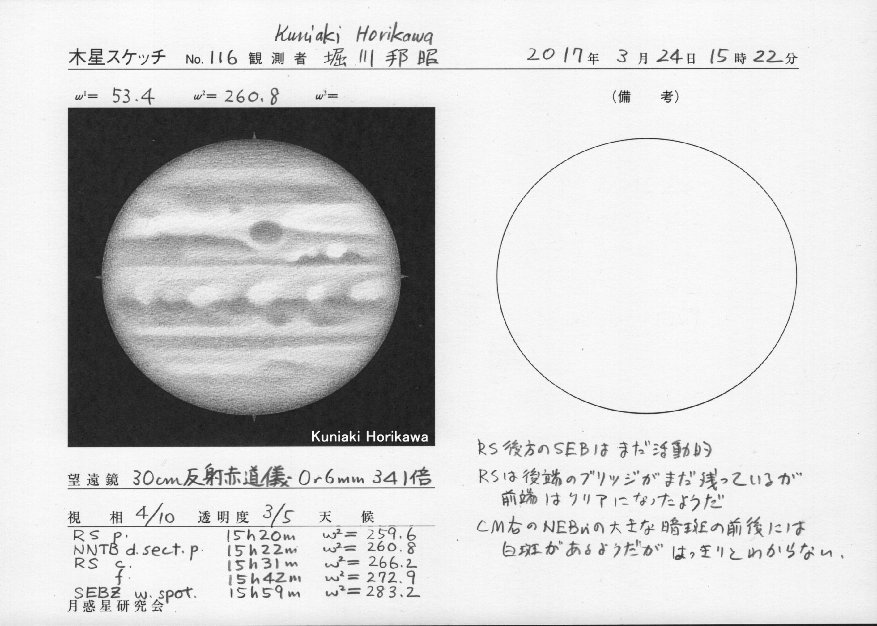

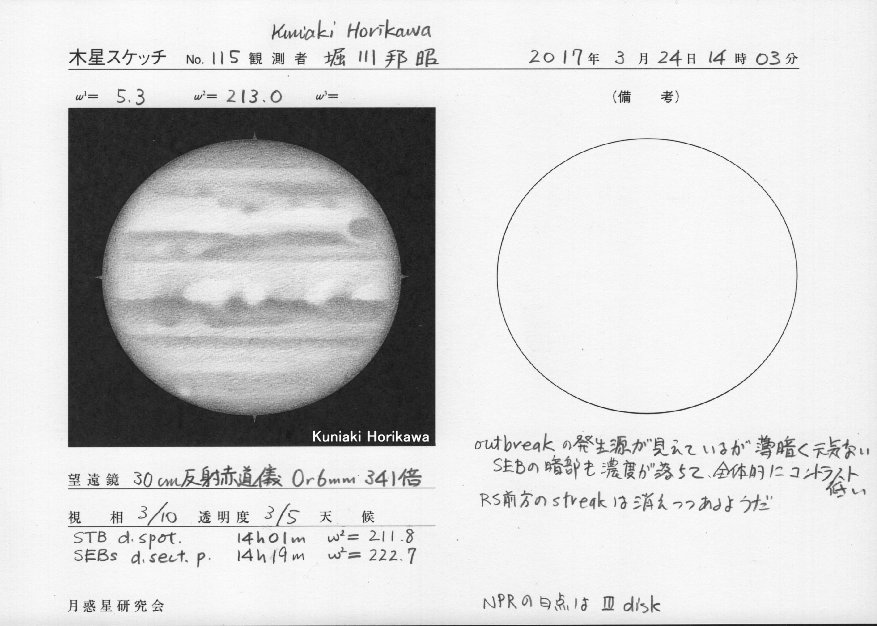

Kuniaki Horikawa(300mm Newtonian) |
≪神奈川県横浜市泉区 堀川邦昭≫[Kuniaki Horikawa:Kanagawa Japan]
Akihiro.Yamazaki(318mm Dall-Kirkham) |
GPVの予報に反してほぼ晴れましたが、相変わらずシーイング悪しです。
《東京都町田市、山崎明宏》[A.Yamazaki: Machida Tokyo Japan]
[Masaaki Nagase,Kawasaki-City,Japan]
Tiziano Olivetti(410mm Dall Kirkham) |
attached some images from last night,under good seeing but poor transparency
[ティジャノ:オリベッティ バンコック タイ]
[Tiziano Olivetti : Bangkok Thailand]
Luigi Morrone (280mm SCT) | |
|
Poor seeing conditions. The IR and R+IR filters show the small white ovals close to the polar area.
The GRS is rising on the left side. The oval BA can be seen on the CM.
A gif animation has been performed combinig the IR and R+IR filter.
[Luigi Morrone : City Agerola Italy]
Manos Kardasis (355mm SCT ) |
[Manos Kardasis,Glyfada-Athens;Greece]
《カーダシス マノス:ギリシャ アテネ》
